Instruction Manual

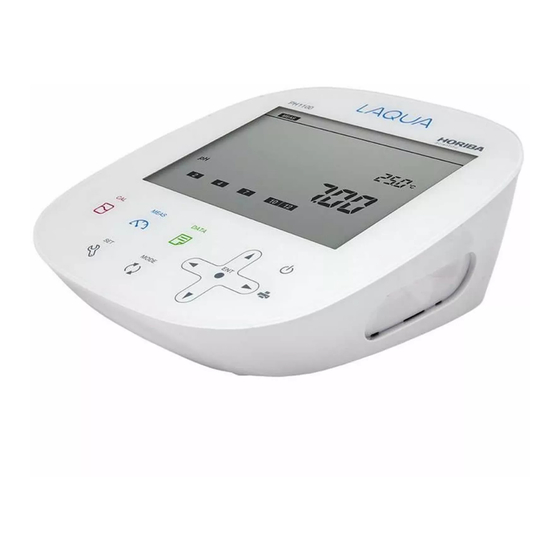

Benchtop pH/ORP/ION Meter
Identifies the instrument models covered by this manual.
Preface
Warranty and Responsibility
Details the warranty terms and limitations of liability for the product.
Trademarks
Lists registered trademarks relevant to the product and its environment.
Check Items
Items in Package
Lists contents of the product package and instructions for checking them.
Regulations
EU Regulations and Conformable Standards
Details EU conformity, installation environment, and electronic equipment disposal.
Regulations
FCC Rules and Other Certifications
Covers FCC rules, Korea certification, and Taiwan battery recycling mark.
Regulations
China Regulation and Marking
Explains China's environmental protection use period marking.
Regulations
Hazardous Substance Information
Lists hazardous substances in components per GB/T 26572.
For Your Safety
Hazard Classification and Warning Symbols
Explains hazard classifications and symbols for safety warnings.
For Your Safety
Installation Environment Information
Details installation environment requirements in French, Italian, and Swedish.
For Your Safety
Installation Environment Information
Details installation environment requirements in Spanish and Polish.
For Your Safety
Installation Environment Information
Details installation environment requirements in Dutch and Japanese.
For Your Safety
Safety Precautions and Warnings
Provides crucial safety precautions and warnings for the instrument and electrodes.
For Your Safety
Broken Glass Warning
Warns about injury from broken glass on electrodes and handling precautions.
Product Handling Information
Operational Precautions and Storage Conditions
Guidelines for instrument operation, use/storage environment, and transportation.
Product Handling Information
Disposal Guidelines
Provides guidance for proper disposal of calibration solutions and the product.
Manual Information
Understanding Manual Indicators
Explains indicators like Note, Reference, and Tip used in the manual.
Part Names and Basic Operation
Instrument Parts and Basic Operations
Identifies instrument components and explains fundamental operations.
Part Names and Basic Operation
Instrument Overview and Ports
Illustrates main instrument parts and connection ports.
Part Names and Basic Operation
Display Elements and Date Identification
Details display elements and how to identify the manufacturing date.
Part Names and Basic Operation
Operation Key Functions
Describes the function of each key on the instrument's interface.
Basic Operation
Data Mode Functions
Explains function layers for data display, auto-save, and deletion.
Basic Operation
Setting Mode Functions
Details various settings: pH, Ion, Temperature, General, and Password.
Basic Operation
Changing Operation Mode
Guides on switching between Measurement, Calibration, Data, and Setting modes.
Basic Operation
Changing Measurement Parameter and Entering Values
How to switch parameters and enter numerical values.
Basic Operation
Saving Measurement Data
Instructions on saving measured data to the instrument's internal memory.
Measurement
Measurement Preparation and Types
Covers preparation, pH, mV/ORP, and Ion concentration measurement procedures.
Measurement
Pre-Measurement Confirmation
Checks to perform before starting measurements for accuracy and safety.
Measurement
Turning ON the Instrument
Step-by-step guide to power on the instrument using the AC adapter.
Measurement
Connecting the Electrode
Instructions for correctly connecting the appropriate electrode to the instrument.
pH Measurement
Instrument Settings for pH
Configuration settings for pH measurement, including temperature compensation.
pH Measurement
Temperature Compensation Settings
Details on setting automatic (ATC) or manual (MTC) temperature compensation.
pH Measurement
Calibration Standard Solution Setup
Guidance on selecting and setting the correct standard solution for pH calibration.
pH Measurement
Standard Solution Types and Values
Information on USA, NIST, CUST solutions and their pH values.
pH Measurement
Performing pH Calibration
Step-by-step instructions for accurate pH calibration.
pH Measurement
Performing pH Calibration
Continuation of pH calibration steps, including second point calibration.
pH Measurement
pH Electrode Status Check
Diagnosing pH electrode status based on calibration results.
pH Measurement
Inspecting Repeatability
Procedure to inspect measurement repeatability using pH 7 standard solution.
pH Measurement
CUST Standard Solution Calibration
Procedure for two-point calibration using CUST standard solutions.
pH Measurement
CUST Standard Solution Calibration
Continuation of CUST calibration, including entering standard values.
pH Measurement
pH Electrode Status Check
Table detailing electrode status indicators and their meanings.
pH Measurement
Performing pH Measurement
Steps for taking pH measurements with auto stability or auto hold.
pH Measurement
Saving and Printing pH Values
How to save and print pH measurement data.
mV, ORP Measurement
Absolute vs. Relative Value Display
Explains switching between absolute and relative value display modes for mV/ORP.
mV, ORP Measurement
Performing mV/ORP Measurement
Procedure for taking mV and ORP measurements, including stability.
mV, ORP Measurement
Saving and Printing mV/ORP Values
How to save and print mV/ORP measurement data.
Ion Concentration Measurement
Instrument Settings for Ion Measurement
Configuration settings for ion concentration measurement, including temperature compensation.
Ion Concentration Measurement
Temperature Compensation Settings
Details on setting ATC or MTC for ion concentration measurements.
Ion Concentration Measurement
Setting Ion Concentration Unit
Guidance on selecting the appropriate unit for ion concentration measurement.
Ion Concentration Measurement
Setting Ion Concentration Unit
Continuation of unit setting, including confirmation and notes.
Ion Concentration Measurement
Setting Ion Valency of Sample
Instructions on setting the ion valency for accurate calculation.
Ion Concentration Measurement
Setting Ion Valency of Sample
Notes on setting ion valency and its impact on calibration data.
Ion Concentration Measurement
Performing Ion Concentration Calibration
Step-by-step guide for accurate ion concentration calibration.
Ion Concentration Measurement
Performing Ion Concentration Calibration
Continuation of ion calibration steps, including entering standard values.
Ion Concentration Measurement
Performing Ion Concentration Calibration
Completion of two-point calibration for ion concentration.
Ion Concentration Measurement
Ion Electrode Status Check
Diagnosing ion electrode status based on calibration results.
Ion Concentration Measurement
Performing Ion Concentration Measurement
Procedure for taking ion concentration measurements.
Ion Concentration Measurement
Saving and Printing Ion Values
How to save and print ion concentration measurement data.
Using Various Functions
Data Functions
Details on managing saved data: display, auto-save, and deletion.
Measurement Settings
Covers calibration data display, interval alarms, and deletion.
Temperature Settings
Procedures for calibrating the temperature sensor.
General Settings
Covers auto stability, power off, date/time, and password settings.
Other Settings
Options for printing data and connecting to external devices.
Using Various Functions
Displaying Saved Data
Steps to view data saved in the instrument's internal memory.
Using Various Functions
Automatic Data Save Configuration
Configuration of the automatic data saving function for specific models.
Using Various Functions
Automatic Data Save Operation
Instructions on starting and stopping the automatic data saving process.
Using Various Functions
Deleting All Saved Data
Procedure for deleting all data stored in the instrument's internal memory.
Measurement Settings
Displaying Calibration Data
How to view recent calibration and repeatability inspection results.
Measurement Settings
Displaying Calibration Data
Details on viewing electrode status and calibration data.
Measurement Settings
Calibration Interval Alarm
Setting up an alarm to remind users to perform calibration.
Measurement Settings
Deleting Calibration Data
Procedure for removing calibration data from the instrument.
Measurement Settings
Deleting Calibration Data
Confirmation steps for deleting calibration data.
Temperature Settings
Calibrating Temperature Sensor
Instructions for calibrating the instrument's temperature sensor.
General Settings
Auto Stability and Auto Hold Configuration
Configuration of auto stability and auto hold modes for measurement stabilization.
General Settings
Auto Stability/Hold Mode Selection
Selection of AS (auto stability) or AH (auto hold) modes.
General Settings
Automatic Power Off Setting
Setting the time interval for automatic power off to conserve energy.
General Settings
Resetting to Factory Default Settings
Procedure to restore the instrument to its original factory default settings.
General Settings
Setting Date and Time
Instructions for setting the current date and time on the instrument.
General Settings
Setting Date and Time Details
Detailed steps for setting year, month, day, hour, and minute.
General Settings
Performing Test Printing
Procedure to verify printer operation and communication.
General Settings
Setting Automatic Print
Enabling automatic printing for data save or calibration completion.
General Settings
Setting Password
Setting a password to prevent unauthorized operation.
General Settings
Setting Password Details
Details on setting and confirming a 4-digit password.
Other Settings
Printing Measurement and Calibration Data
How to print measurement and calibration data, including inspection results.
Other Settings
Printing Measurement and Calibration Data
Format examples for printing pH and ion measurement data.
Other Settings
Printing Measurement and Calibration Data
Examples of data saved in memory for pH and ion measurements.
Other Settings
Printing Measurement and Calibration Data
Format examples for calibration data, with and without inspection.
Other Settings
Printing Measurement and Calibration Data
Format examples for ion calibration data.
Other Settings
Transferring Data to PC
Instructions for transferring data to PC and required PC specifications.
Other Settings
Operating from External Device
Details on remotely operating the instrument via RS-232C or USB communication.
Maintenance
Contact for Maintenance
Information on how to contact the dealer for product maintenance.
Instrument Maintenance and Storage
Guidelines for cleaning and storing the instrument to ensure longevity.
Storage Environmental Conditions
Specifies optimal environmental conditions for storing the instrument.
Maintenance
pH Electrode Maintenance and Storage
Procedures for cleaning and storing pH electrodes for daily and long-term use.
Maintenance
ORP Electrode Maintenance and Storage
Procedures for cleaning and storing ORP electrodes.
Maintenance
Checking ORP Electrode State
Method for checking ORP electrode condition using a standard solution.
Maintenance
Ion Electrode Maintenance and Storage
Procedures for cleaning and storing ion electrodes.
How to Resolve Errors or Troubles
When an Error Message Appears
Guide to identifying and resolving instrument error messages.
How to Resolve Errors or Troubles
Electrode Errors
Troubleshooting for asymmetric potential and electrode sensitivity errors.
Calibration Errors
Explanation for exceeding maximum calibration points.
How to Resolve Errors or Troubles
Calibration and Printer Errors
Troubleshooting for standard solution identification, calibration interval, and printer errors.
How to Resolve Errors or Troubles
Memory Full Error
Steps to resolve the 'Memory full' error by managing data.
Troubleshooting
Fluctuating Indicated Value
Causes and solutions for fluctuating measurement values.
Troubleshooting
Slow Response and No Value Change
Troubleshooting for slow instrument response or no value change.
Value Outside Display Range
How to address values outside the instrument's displayable range.
Troubleshooting
Poor Repeatability and No Power
Troubleshooting for poor repeatability and when the instrument fails to power on.
Missing Display Elements
Troubleshooting issues with missing display elements.
Appendix
Main Specifications
Provides detailed technical specifications for the instrument models.
Appendix
Functions Overview
Details specifications for temperature and ion measurements, and model-specific functions.
Appendix
Instrument Default Settings
Lists default settings for measurement parameters and common functions.
Technical Note
pH Standard Solution Values
Table of pH values for standard solutions across different temperatures.
Options
Available Options and Accessories
Lists optional accessories like printers, cables, and electrode stands with part numbers.
Need help?
Do you have a question about the LAQUA-PH1100 and is the answer not in the manual?
Questions and answers
