- Page 1 ﺷرﮐت ﺳﯾوان ﻧﻣﺎﯾﻧده اﻧﺣﺻﺎری ﻣﺣﺻوﻻت ھﺎﻧﯾﺎﻧﮓ ﮐره Process Controller PX series INSTRUCTION MANUAL Thank you for the purchase of HANYOUNG product. Please read this manual carefully. 021-33989001 www.sivancarno.com 021-33989002...
-
Page 2: Table Of Contents
ﺷرﮐت ﺳﯾوان ﻧﻣﺎﯾﻧده اﻧﺣﺻﺎری ﻣﺣﺻوﻻت ھﺎﻧﯾﺎﻧﮓ ﮐره Contents 1. SAFETY INFORMATION P. 3 2. INSTRUCTION P. 5 3. ORDERING INFORMATION P. 5 4. SPECIFICATION P. 6 5. DIMENSIONS & PANEL CUTOUT P. 10 6. TERMINAL ARRANGEMENT P. 11 7. NAME & FUNCTION P. -
Page 3: Www.sivancarno.com 2

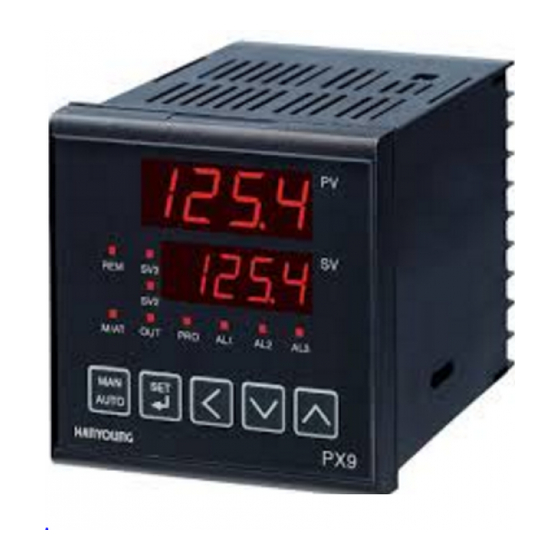

ﺷرﮐت ﺳﯾوان ﻧﻣﺎﯾﻧده اﻧﺣﺻﺎری ﻣﺣﺻوﻻت ھﺎﻧﯾﺎﻧﮓ ﮐره PX Series High Accuracy 0.1 class 250 ms Features Zone PID Fuzzy Group PID Auto Tuning Power supply for sensor Alarm Output Output Limits Retransmission Output Interface (RS485 / 422) Multi Input Output 3 Set points External Contact Input Heater break alarms... -
Page 4: Safety Information
ﺷرﮐت ﺳﯾوان ﻧﻣﺎﯾﻧده اﻧﺣﺻﺎری ﻣﺣﺻوﻻت ھﺎﻧﯾﺎﻧﮓ ﮐره SAFETY INFORMATION Before using, please read this (SAFETY INFORMATION) and then use this controller. It is important that the instructions in this manual are followed when using this instrument. Please keep this manual for future reference. Precautions are classified in WARNING and CAUTION. - Page 5 ﺷرﮐت ﺳﯾوان ﻧﻣﺎﯾﻧده اﻧﺣﺻﺎری ﻣﺣﺻوﻻت ھﺎﻧﯾﺎﻧﮓ ﮐره 2. Installation Attach the brackets (2 units) on the fixed halls and tighten with a screwdriver. Fixing torque is about 147 N. cm (1.5 kg.cm) (Care should be taken not to tighten forcedly) 3.
-
Page 6: Instruction
ﺷرﮐت ﺳﯾوان ﻧﻣﺎﯾﻧده اﻧﺣﺻﺎری ﻣﺣﺻوﻻت ھﺎﻧﯾﺎﻧﮓ ﮐره INSTRUCTION This instrument has process-value (PV) and set-value (SV) each 4 digits with 7 segment FND. This instrument is available in 2 versions: Universal Type and Heating / Cooling Type. Each has 12 Setting groups (refer pages 9 & 10) Function and feature : Group P.I.D, Multi-input (19 types), Multi-output (Relay, SSR, Current), Local input, Remote input, External contact input, Program Control (Ramp / Soak) with 10 steps, Auto-tuning 2 types (standard type, low PV type), Manual output, Retransmission, Communication... -
Page 7: Specification
ﺷرﮐت ﺳﯾوان ﻧﻣﺎﯾﻧده اﻧﺣﺻﺎری ﻣﺣﺻوﻻت ھﺎﻧﯾﺎﻧﮓ ﮐره SPECIFICATION INPUT Thermocouple, R.T.D, Direct voltage Input ( refer to the input signal and measurement range on page 18 ) Sampling cycle time 250 mS Input resolution Below decimal point of range or above Thermocouple / Voltage (mV) input : 1 Input impedance Voltage input ( V ) : Approx. - Page 8 ﺷرﮐت ﺳﯾوان ﻧﻣﺎﯾﻧده اﻧﺣﺻﺎری ﻣﺣﺻوﻻت ھﺎﻧﯾﺎﻧﮓ ﮐره Divison of insulation Relay contact output Power supply Control output Danger Danger/Safety Control output 1 (SSR, SCR) Control output 2 (SSR, SCR) (retransmission) Alarm1 Alarm2 Contact input SELV SELV Contact input Communication channel SELV Measuring CT input...
- Page 9 ﺷرﮐت ﺳﯾوان ﻧﻣﺎﯾﻧده اﻧﺣﺻﺎری ﻣﺣﺻوﻻت ھﺎﻧﯾﺎﻧﮓ ﮐره RETRANSMISSION OUTPUT Output current range : 4 ~ 20 mA DC, Resistance load : 600 max. Accuracy : 0.3 % of F. S (4 ~ 20 mA), Resolution : Approx. 3000 Current output Output ripple : 0.1 % of F.
-
Page 10: Dimensions & Panel Cutout
ﺷرﮐت ﺳﯾوان ﻧﻣﺎﯾﻧده اﻧﺣﺻﺎری ﻣﺣﺻوﻻت ھﺎﻧﯾﺎﻧﮓ ﮐره DIMENSIONS & PANEL CUTOUT (Unit : mm) PX2 (48 96 mm) PX7 (72 72 mm) PX3 (96 48 mm) PX9 (96 96 mm) CURRENT TRANSFORMER (Model: CTL-6-S 021-33989001 www.sivancarno.com 021-33989002... -
Page 11: Terminal Arrangement
ﺷرﮐت ﺳﯾوان ﻧﻣﺎﯾﻧده اﻧﺣﺻﺎری ﻣﺣﺻوﻻت ھﺎﻧﯾﺎﻧﮓ ﮐره TERMINAL ARRANGEMENT PX2 (48 96 mm) PX3 (96 48 mm) PX7 (72 72 mm) Optional Optional 1 Optional 2 Optional 3 Note] Heater break alarm is used in option 2,3 by setting alarm outputs (AL1,AL2) PX9 (96 96 mm) [Note] Heater break alarm is used by setting alarm outputs (AL1,AL2,AL3) 021-33989001... -
Page 12: Name & Function
ﺷرﮐت ﺳﯾوان ﻧﻣﺎﯾﻧده اﻧﺣﺻﺎری ﻣﺣﺻوﻻت ھﺎﻧﯾﺎﻧﮓ ﮐره NAME & FUNCTION Front Displays Name of respective parts Functions Process-value (PV) Displays the process temperature value. Set-value (SV) Displays various set - value, message, and parameter. Remote indicator Lights when the remote operation. Set-value display indicator Lights when the SV2 or SV3 is displayed. -
Page 13: Tabel Of Setting Items
ﺷرﮐت ﺳﯾوان ﻧﻣﺎﯾﻧده اﻧﺣﺻﺎری ﻣﺣﺻوﻻت ھﺎﻧﯾﺎﻧﮓ ﮐره TABLE OF SETTING ITEMS Group Group Group Group Group Group Control Program Set-value Autotuning P.I.D H.B.A Local, Program Select number Detection Auto tuning Program, control start, A.R.W of setting current of type Remote control stop mode HBA 1... - Page 14 ﺷرﮐت ﺳﯾوان ﻧﻣﺎﯾﻧده اﻧﺣﺻﺎری ﻣﺣﺻوﻻت ھﺎﻧﯾﺎﻧﮓ ﮐره Group Group Group Group Group Group Retransmission Communication Alarm Remote Output Input Retransmission Protocol High limit of output or power Input type Output type Alarm function remote input RS485/422 supply for sensor type of alarm output High limit of Reverse /...
-
Page 15: Setting Method
ﺷرﮐت ﺳﯾوان ﻧﻣﺎﯾﻧده اﻧﺣﺻﺎری ﻣﺣﺻوﻻت ھﺎﻧﯾﺎﻧﮓ ﮐره SETTING METHOD AFTER COMPLETION OF WIRING, APPLY POWER ON Production Model Code will be indicated as in below, followed by current PV and SV values, as in below. For setting a level, press at a time for 3 sec. -
Page 16: Control Group
ﺷرﮐت ﺳﯾوان ﻧﻣﺎﯾﻧده اﻧﺣﺻﺎری ﻣﺣﺻوﻻت ھﺎﻧﯾﺎﻧﮓ ﮐره GROUP SETTING Local, Program or Remote is selected in the control group mode using key. When selecting LOCAL mode, control zone selection and fuzzy function selection are available. Control zone selection is not available when selecting program mode or remote mode. Fuzzy function is operating in the P.I.D control. -
Page 17: Input Group Setting
ﺷرﮐت ﺳﯾوان ﻧﻣﺎﯾﻧده اﻧﺣﺻﺎری ﻣﺣﺻوﻻت ھﺎﻧﯾﺎﻧﮓ ﮐره INPUT GROUP SETTING Input type selection After power ON and when PV is indicating, press key for 3 sec to be displayed at PV and 3 at SV. (If it is not indicated 3, set again in the level setting mode) Control group is indicated when press key once more. -
Page 18: Input Signal And Measurement Range
ﺷرﮐت ﺳﯾوان ﻧﻣﺎﯾﻧده اﻧﺣﺻﺎری ﻣﺣﺻوﻻت ھﺎﻧﯾﺎﻧﮓ ﮐره Signal Name Description Condition Initial value Input type and mode selection Input group Selection Input signal Refer to input signal and range Always NO.1 selection Measurement Thermocouple range unit or R.T.D 1370 High limit Refer to input signal and range Always ( Notice : FR-H >... -
Page 19: Output Group Setting
ﺷرﮐت ﺳﯾوان ﻧﻣﺎﯾﻧده اﻧﺣﺻﺎری ﻣﺣﺻوﻻت ھﺎﻧﯾﺎﻧﮓ ﮐره OUTPUT GROUP SETTING This process controller is divided into 2 types: UNIVERSAL TYPE AND HEATING / COOLING TYPE. Output is selectable from Relay, SSR, and Current (4~20mA DC). Output type range (output code) is for universal type and for Heating /Cooling type. -
Page 20: Set Value Group Setting
ﺷرﮐت ﺳﯾوان ﻧﻣﺎﯾﻧده اﻧﺣﺻﺎری ﻣﺣﺻوﻻت ھﺎﻧﯾﺎﻧﮓ ﮐره Heating (OUT1) Output code Cooling (OUT2) Model Relay Relay (O T) SSR / Current SSR / Current / Retransmission Current Relay Retransmission PX9-0 Current PX7-0 Current Current PX3-0 Current Retransmission Relay PX2-0 Retransmission Relay(AL3) Relay(AL3) Retransmission... -
Page 21: Program Group Setting
ﺷرﮐت ﺳﯾوان ﻧﻣﺎﯾﻧده اﻧﺣﺻﺎری ﻣﺣﺻوﻻت ھﺎﻧﯾﺎﻧﮓ ﮐره PROGRAM GROUP SETTING (RAMP / SOAK) Set value If Program mode is selected in Group Control, the controller becomes a programmable (ramp/ soak) controller with 1 pattern of 10 step. After setting time and set value, this controller controls automatically. -
Page 22: Auto Tuning
ﺷرﮐت ﺳﯾوان ﻧﻣﺎﯾﻧده اﻧﺣﺻﺎری ﻣﺣﺻوﻻت ھﺎﻧﯾﺎﻧﮓ ﮐره AUTO TUNING This controller has two types of auto-tuning as STD (Standard type) and LOW(Low PV type). Low PV type is the value 10% lower than the set value. Use this type where overshoot is to be suppressed. -
Page 23: P.i.d Group
ﺷرﮐت ﺳﯾوان ﻧﻣﺎﯾﻧده اﻧﺣﺻﺎری ﻣﺣﺻوﻻت ھﺎﻧﯾﺎﻧﮓ ﮐره P.I.D GROUP Maximum Range (Eu:100 %) Zone 3 Set point of Zone 2 (2,RP) Zone 2 Set point of Zone 1 (1,RP) Zone 1 Time Minimum (Eu: 0 %) When checking P.I.D. values or setting SV in manual mode, this can be done in P.I.D. Group. Press key to get Anti Reset Wind value by auto or manual and then press once more to be... -
Page 24: Alarm Group Setting
ﺷرﮐت ﺳﯾوان ﻧﻣﺎﯾﻧده اﻧﺣﺻﺎری ﻣﺣﺻوﻻت ھﺎﻧﯾﺎﻧﮓ ﮐره ALARM GROUP SETTING There are 3 alarm outputs available per conrtoller. In Alarm Group, setting are made for mode, dead band, and value of each alarm. Refer to the next page for the 19 different types of alarm functions. -
Page 25: Alarm Type And Code
ﺷرﮐت ﺳﯾوان ﻧﻣﺎﯾﻧده اﻧﺣﺻﺎری ﻣﺣﺻوﻻت ھﺎﻧﯾﺎﻧﮓ ﮐره ALARM TYPE AND CODE [Notice] Display lamp will be ON when output OFF in inverted type. Hysteresis : Set point , : Minus Alarm set point , : Alarm set point ) Code NO. Alarm type Function High absolute value... -
Page 26: Retransmission Group
ﺷرﮐت ﺳﯾوان ﻧﻣﺎﯾﻧده اﻧﺣﺻﺎری ﻣﺣﺻوﻻت ھﺎﻧﯾﺎﻧﮓ ﮐره RETRANSMISSION GROUP Reference : Retransmission group will be indicated when selecting retransmisson in output group. If selecting code 4,5,7 or 8 in output group, retransmisson will not be indicated. Signal Name Description Condition Initial value Reference Retransmission group... -
Page 27: Heater Break Alarm Group
ﺷرﮐت ﺳﯾوان ﻧﻣﺎﯾﻧده اﻧﺣﺻﺎری ﻣﺣﺻوﻻت ھﺎﻧﯾﺎﻧﮓ ﮐره HEATER BREAK ALARM GROUP Heater break alarm group consist of output dead band and current detection display mode and detects 2 spots (to be ordered seperately: current transformer model CTL-6-S. measurement range : 1 ~ 50 A). Signal Name Description... - Page 28 ﺷرﮐت ﺳﯾوان ﻧﻣﺎﯾﻧده اﻧﺣﺻﺎری ﻣﺣﺻوﻻت ھﺎﻧﯾﺎﻧﮓ ﮐره 021-33989001 www.sivancarno.com 021-33989002...
- Page 29 ﺷرﮐت ﺳﯾوان ﻧﻣﺎﯾﻧده اﻧﺣﺻﺎری ﻣﺣﺻوﻻت ھﺎﻧﯾﺎﻧﮓ ﮐره 021-33989001 www.sivancarno.com 021-33989002...
- Page 30 ﺷرﮐت ﺳﯾوان ﻧﻣﺎﯾﻧده اﻧﺣﺻﺎری ﻣﺣﺻوﻻت ھﺎﻧﯾﺎﻧﮓ ﮐره 021-33989001 www.sivancarno.com 021-33989002...
