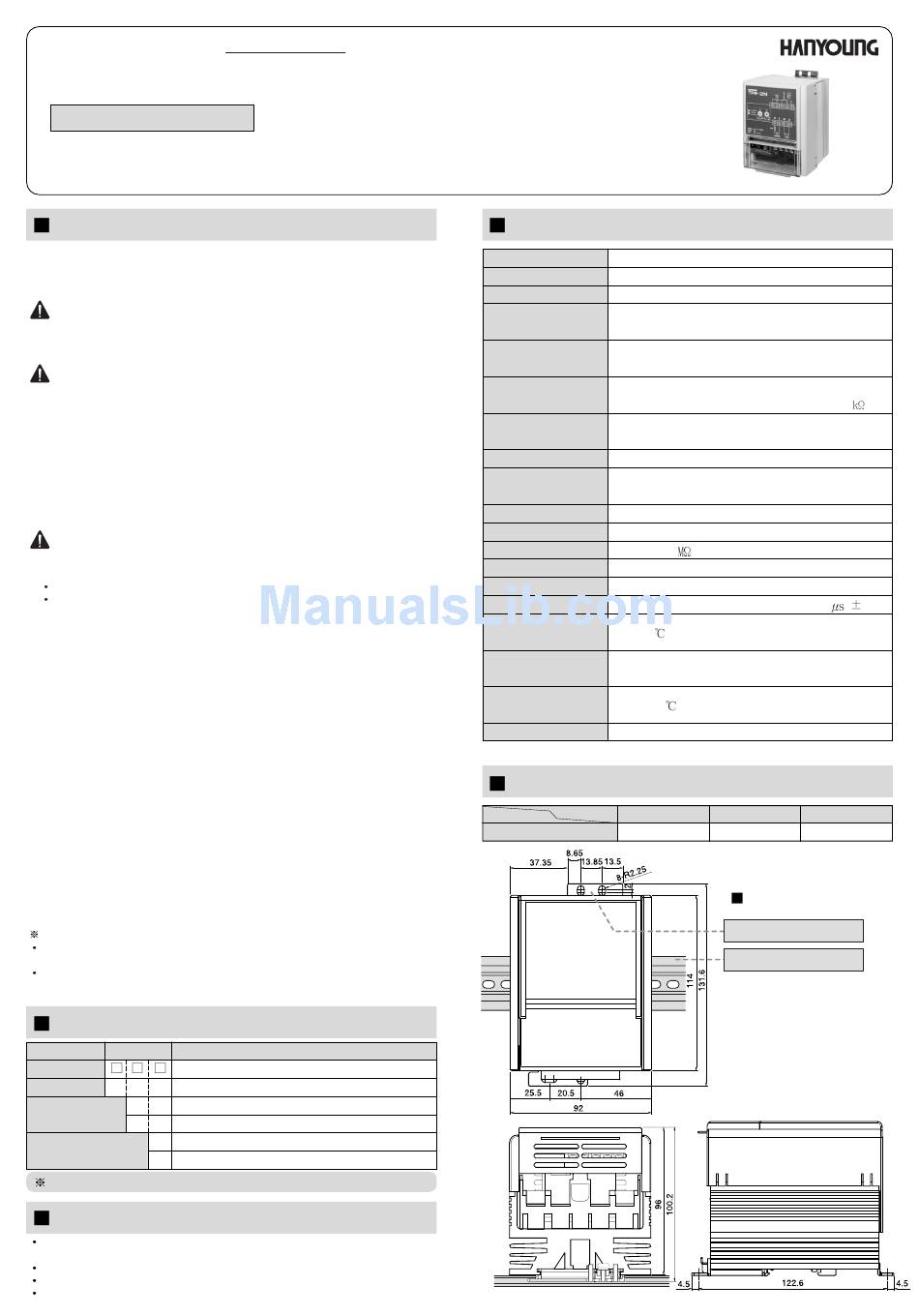

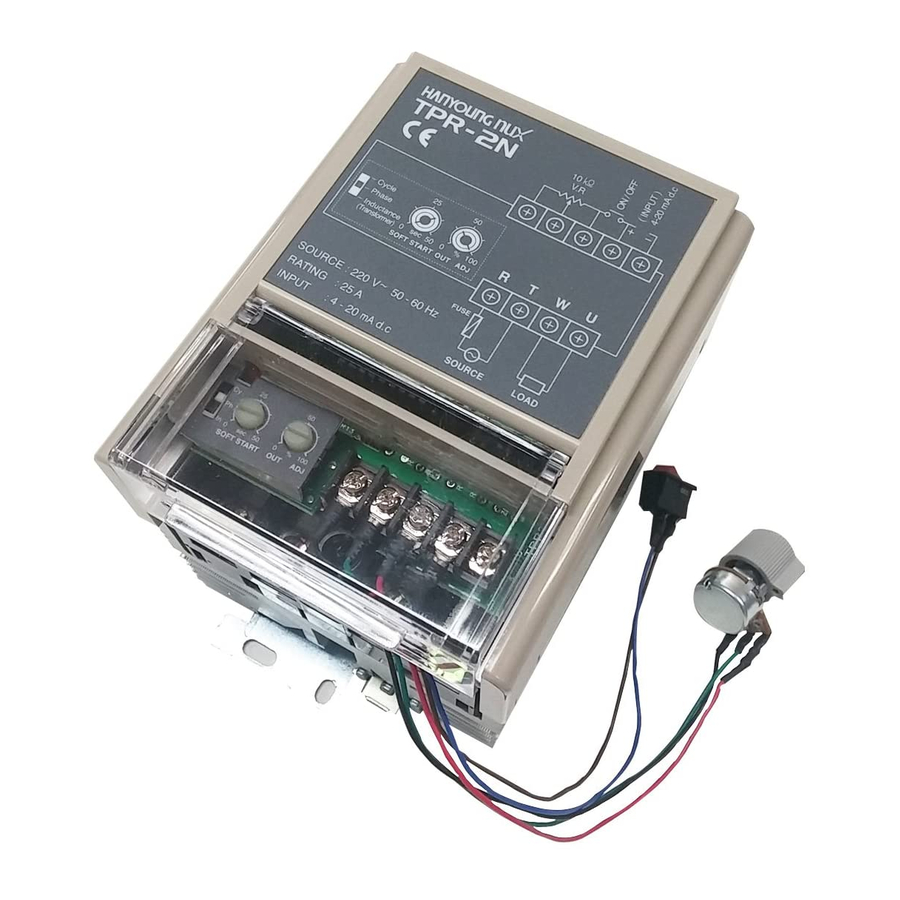

Hanyoung TPR-2N Instruction Manual

Thyristor Power Regulator
TPR-2N
INSTRUCTION MANUAL
We appreciate you for purchasing HanYoung NUX Co.,Ltd
product. Before using the product you have purchased,
check to make sure that it is exactly what you ordered. Then,
please use it following the instructions below.

Safety information

Before you use, read safety precautions carefully, and use this product properly.
The precautions described in this manual contain important contents related with
safety; therefore, please follow the instructions accordingly. The precautions are
composed of DANGER, WARNING and CAUTION.
DANGER
To prevent electric shock while it is running, put to earth with the fixed screw of
the unit and do not touch the radiator panel since it is very hot. Do not touch or
contact the input/output terminals because they cause electric shock.
WARNING
1. If this product is used with the machinery which may be caused human injury
or serious property damage then use it after surely installing the protection
equipment for two or three times.
2. To prevent defection or malfunction of this product, supply proper power
voltage in accordance with the rating.
3. To prevent electric shock or malfunction of product, do not supply the power
until the wiring is completed.
4. Do not decompose, modify, revise or repair this product. This may be a cause
of malfunction, electric shock or fire.
5. Reassemble this product while the power is OFF. Otherwise, it may be a
cause of malfunction or electric shock
CAUTION
1. The place of operating this product affect to the its functions and life cycle so
that avoid to use it in the following circumstance.
A place of having high humidity and not circulating air
A place of piling dust or impurity or having high ambient temperature or high
vibration
2. The contents of this manual may be changed without prior notification.
3. Make sure that there is no damage or abnormality of the product during
delivery.
4. After turning OFF power sources of all instruments, please wire them.
5. The Thyristor Power Regulator shall be installed perpendicularly.
6. Install exhausting fan in internal and upside of the panel.
7. Tighten BOLT of the input and output wire enough.
8. Do not use this product at any place with corrosive (especially noxious gas or
ammonia) or flammable gas.
9. Do not use this product at any place with direct vibration or impact.
10. Do not use this product at any place with liquid, oil, medical substances, dust,
salt or iron contents. (Use at Pollution level 1 or 2)
11. Do not polish this product with substances such as alcohol or benzene.
12. Do not use this product at any place with a large inductive difficulty or
occurring static electricity or magnetic noise.
13. Do not use this product at any place with possible thermal accumulation due
to direct sunlight or heat radiation.
14. Install this product at place under 2,000m in altitude.
15. When the product gets wet, the inspection is essential because there is
danger of an electric leakage or fire.
16. Do not connect anything to the unused terminals.
17. After checking the polarity of terminal, connect wires at the correct position.
18. The warranty period for this product including parts is one year if this product
is properly used

How to Operate

When installing the unit, the input and output terminals shall be attached in the
direction of facing downward perpendicularly for the natural cooling.
Certainly, install high-speed breaking fuse between terminal R and power
source

Model and Suffix code

Model Name
Suffix Code
Thyristor Power Regulator
TPR
Phase
2N Single Phase
110 110 V AC 50/60 Hz
Power Supply
220 220 V AC 50/60 Hz
25 25 A
Rated Current
35 35 A
Control Method: Phase control (factory default)

Distinctive feature

Since there is no moveable contact which is solid state relay control, life time is
semi-permanent
Due to the fast response time, you can control the temperature precisely.
Compared to the previous model, it becomes a simpler and better design.
Handling is easy, operating reliability is high and function has been improved.
MAIN PRODUCTS
- DIGITAL : Temperature Controller, Counter, Timer,Speedmeter,
Tachometer, Panel Meter, Recorder
- SENSOR : Proximity Sensor/Photo Electric Sensor,
Rotary Encoder, Optical Fiber Sensor,
Pressure Sensor
- ANALOG : Timer, Temperature Controller
HEAD OFFICE
1381-3, Juan-Dong, Nam-Gu Incheon, Korea
TEL: (82-32)876-4697 FAX : (82-32)876-4696
Description

Ratings

Power Supply
110 V AC, 220 V AC
Operating Frequency
50 Hz, 60 Hz (common)
Rated Current
25 A, 35 A
Protected by high-speed breaking fuse(external
Protection Circuit
attachment)
Resistive Load/ Inductive Load (use as a switch
Applied Load
conversion)
Input Current: 4 ~ 20 mA DC, Input Voltage: 1 ~5 V DC
Control Input
Input Contact Point: ON-OFF, External V, R (10
Control Method
Phase Control, Cycle control, ON/OFF control
(By switch Conversion)
Starting Method
SOFT START / DOWN
Output Adjusting Above 95 % input voltage
Range (when putting maximum of input voltage)
Cooling Method Natural Cooling
Indicator Function
Output Display Led lighting
Above 100
Insulation Resistance
Output Range 0 ~ 100 %
Dielectric Strength 2000 V AC at 50/60 Hz for 1 minute
Line Noise Noise by noise simulator(pulse width 1 : 2KV)
Operating Ambient
0 ~ 50
temperature
Operating Ambient
30 ~ 85 % RH
Humidity
Storage Ambient
-25 ~ 70
Temperature
Net Weight Approx. 960 g

Aspect Dimension and Set-up Method

W
Standard (Size)
Capacity (Current)
25 A, 35 A 92
MB01E050418
(at 500 V DC)
(with no freezing)
H
100 131
[Unit : mm]

Set-up Method

Direct Set-up to the Panel
Set-up to the mounting track
)
D
