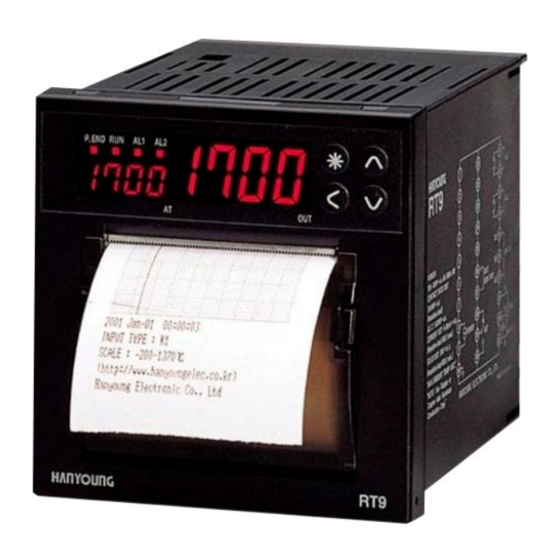

- Page 1 ﺷرﮐت ﺳﯾوان ﻧﻣﺎﯾﻧده اﻧﺣﺻﺎری ﻣﺣﺻوﻻت ھﺎﻧﯾﺎﻧﮓ ﮐره Recorder & Temperature Controller INSTRUCTION MANUAL Thank you for the purchase of HANYOUNG product. Please read this manual carefully. 021-33989001 www.sivancarno.com 021-33989002...
-
Page 2: Table Of Contents
ﺷرﮐت ﺳﯾوان ﻧﻣﺎﯾﻧده اﻧﺣﺻﺎری ﻣﺣﺻوﻻت ھﺎﻧﯾﺎﻧﮓ ﮐره Contents 1. SAFETY INFORMATION 2. INSTRUCTION 3. ORDERING INFORMATION 4. SPECIFICATION 5. DIMENSIONS & PANEL CUTOUT 6. TERMINAL ARRANGEMENT 7 NAME & FUNCTION 8. TABLE OF SETTING ITEMS 10. SETTING METHOD 20. GROUP SETTING 21. - Page 3 ﺷرﮐت ﺳﯾوان ﻧﻣﺎﯾﻧده اﻧﺣﺻﺎری ﻣﺣﺻوﻻت ھﺎﻧﯾﺎﻧﮓ ﮐره Universal Input Output / Small-sized Recorder & Temperature controller ( 0.3 class high accuracy) Model : RT9 Features Free scale Zoom function PID Auto tuning Various Alarms Record and Temperature Universal Input Output...
-
Page 4: Safety Information
ﺷرﮐت ﺳﯾوان ﻧﻣﺎﯾﻧده اﻧﺣﺻﺎری ﻣﺣﺻوﻻت ھﺎﻧﯾﺎﻧﮓ ﮐره SAFETY INFORMATION Before using, please read this (SAFETY INFORMATION) It is most important that the instructions in this manual are followed when using this instrument. Please keep this manual for future reference. Precautions are classified as WARNING and CAUTION. There is a possibility of death or heavy injury when handling in wrong way. - Page 5 ﺷرﮐت ﺳﯾوان ﻧﻣﺎﯾﻧده اﻧﺣﺻﺎری ﻣﺣﺻوﻻت ھﺎﻧﯾﺎﻧﮓ ﮐره 2. Installation Attach the brackets (2 units) on the fixed halls and tighten with a screwdriver. Fixing torque is about 14.7N. cm (1.5kg.cm). (Care should be taken not to tighten forcedly.) Indoor use. Altitude up to 2000m use.
-
Page 6: Instruction
(standard type, low PV type), Communication (RS485), 20 types of alarm, Sampling cycle 250ms, 0.3 of FS high accuracy. And there are Zoom function, Graphic or Text printing selectable function, List printing function, Feed function, Free scale function. RT9 is the smallest Recorder with controller. ORDERING INFORMATION... -
Page 7: Specification
ﺷرﮐت ﺳﯾوان ﻧﻣﺎﯾﻧده اﻧﺣﺻﺎری ﻣﺣﺻوﻻت ھﺎﻧﯾﺎﻧﮓ ﮐره SPECIFICATION INPUT Thermocouple : K, J, E, T, R, S, B, L, N, U, WRe 5-26, PL- Input R.T.D : Pt 100 , KPt 100 Direct voltage: 1 ~ 5 V, -10 ~ 20 mV, 0 ~ 100 mV (Free scale type) Sampling time 250 mS Input resolution... - Page 8 ﺷرﮐت ﺳﯾوان ﻧﻣﺎﯾﻧده اﻧﺣﺻﺎری ﻣﺣﺻوﻻت ھﺎﻧﯾﺎﻧﮓ ﮐره ALARM Contact capacity : 240 V AC 1 A, 30 V DC 1 A(resistive load) Relay Contact: 1 a contact output Output points: 2 Points (AL1,AL2) FUNCTION Input correction (Bias): -100.0 ~ 100.0 % for instrument range Measurement input Scaling : According to SH, SL of measurement range Filter : OFF, 1 ~ 120 sec.
- Page 9 ﺷرﮐت ﺳﯾوان ﻧﻣﺎﯾﻧده اﻧﺣﺻﺎری ﻣﺣﺻوﻻت ھﺎﻧﯾﺎﻧﮓ ﮐره STORAGE CONDITION -25 ~ 70 Storage temperature Storage humidity 5 ~ 95 % RH (no condensation) 1 m max. in packing condition Shock STRUCTURE External Dimension Weight MODEL Material 96(W) 96(H) 100(D) mm 530 g Plastic case(ABS) POWER SUPPLY...
- Page 10 ﺷرﮐت ﺳﯾوان ﻧﻣﺎﯾﻧده اﻧﺣﺻﺎری ﻣﺣﺻوﻻت ھﺎﻧﯾﺎﻧﮓ ﮐره INPUT SIGNAL and MEASUREMENT RANGE Input Input type (Input signal) Accuracy Range ( ) Range( ) Remarks code -200~1370 -300~2500 F.S is maxium -199.9~999.9 0~2300 value ~ minimum 0.3 % of F.S -199.9~999.9 -300~2300 value of each 1 digit...
-
Page 11: Dimensions & Panel Cutout
ﺷرﮐت ﺳﯾوان ﻧﻣﺎﯾﻧده اﻧﺣﺻﺎری ﻣﺣﺻوﻻت ھﺎﻧﯾﺎﻧﮓ ﮐره DIMENSIONS & PANEL CUTOUT (Unit : mm) RT9 (96 96 mm) TERMINAL ARRANGEMENT RS 485 Terminal structure Relay(Terminal no. Control Output SSR / SCR (Termina no. 100 - 240 V AC 50/60 Hz. (Termina no. -
Page 12: Name & Function
No paper P.END Recording in progress Alarm 1 ON Alarm 2 ON Displays set value and various parameters.(RT9-0 : Displays input type) Set-value(SV) Process-value(PV) Displays the process value. When setting, displays various modes. Flickers when the auto tuning operates. Lights when the control output is ON. -
Page 13: Table Of Setting Items
3 sec. Set value changeable Group Group Group P.I.D Control Autotuning Output volume display Set a number Parameter structure Recorder only (RT9-0): Control group Alarm group (Optional) Communication group (Optional) Input group Time setting group will be displayed. 021-33989001 www.sivancarno.com 021-33989002... - Page 14 ﺷرﮐت ﺳﯾوان ﻧﻣﺎﯾﻧده اﻧﺣﺻﺎری ﻣﺣﺻوﻻت ھﺎﻧﯾﺎﻧﮓ ﮐره Group Group Group Group Group Alarm Communication Output Input Time setting 021-33989001 www.sivancarno.com 021-33989002...
-
Page 15: Setting Method
In the condition, press button to enter group control. Parameter shift Power ON Recorder& Controller Recorder (Model:RT9-1) (Model:RT9-0) Recorder : Displays input type and PV Recorder & controller : Displays SV and PV For 3 sec How to operate RECORDER... -
Page 16: Group Setting
ﺷرﮐت ﺳﯾوان ﻧﻣﺎﯾﻧده اﻧﺣﺻﺎری ﻣﺣﺻوﻻت ھﺎﻧﯾﺎﻧﮓ ﮐره GROUP SETTING Display level setting Signal Display Name Description Condition Initial Divide display levels into Display level setting Always 3 stages (1~3) This controller has 3 different levels of setting, thereby restricting operator access if so desired. Control group setting Signal Name... - Page 17 ﺷرﮐت ﺳﯾوان ﻧﻣﺎﯾﻧده اﻧﺣﺻﺎری ﻣﺣﺻوﻻت ھﺎﻧﯾﺎﻧﮓ ﮐره Auto tuning group setting (Model: RT9-1) Signal Name Description Condition Initial Auto tuning group Indicates Auto-turing RT9-1 Auto tuning type Auto tuning start OFF / 1~3 / Auto-tuning The Auto tuning function automatically measures, computes and set the optimum P.I.D value.
- Page 18 ﺷرﮐت ﺳﯾوان ﻧﻣﺎﯾﻧده اﻧﺣﺻﺎری ﻣﺣﺻوﻻت ھﺎﻧﯾﺎﻧﮓ ﮐره Maximum Range (Eu:100%) Zone 3 Set point of Zone 2 (2,RP) Zone 2 Set point of Zone 1 (1,RP) Zone 1 Time Minimum (Eu: 0%) When checking P.I.D. values or setting SV in manual mode, this can be done in P.I.D. Group. Press key to get Anti Reset Wind value by auto or manual and then press once more to be...
- Page 19 Low deviation with hold function (inverted) High Low deviation with hold function High Low band with hold function High absolute value with hold function (inverted) Low absolute value with hold function (inverted) Marked alarms are not available in RT9-0 021-33989001 www.sivancarno.com 021-33989002...
- Page 20 ﺷرﮐت ﺳﯾوان ﻧﻣﺎﯾﻧده اﻧﺣﺻﺎری ﻣﺣﺻوﻻت ھﺎﻧﯾﺎﻧﮓ ﮐره Communication group setting (Optional) RT9 series is equipped with 4 wire /2 wire half-duplex the RS485 / RS422 communication interfaces. Using the interfaces, communications are available with maximum 31 devices. Signal Name Description...
- Page 21 ﺷرﮐت ﺳﯾوان ﻧﻣﺎﯾﻧده اﻧﺣﺻﺎری ﻣﺣﺻوﻻت ھﺎﻧﯾﺎﻧﮓ ﮐره Input group setting Signal Name Description Condition Initial value Input group Always Input type and mode selection Selection Input signal selection Refer to input signal and range Always NO.1 High limit Always 1370 Refer to input signal and range ( Notice : FR-H >...
- Page 22 ﺷرﮐت ﺳﯾوان ﻧﻣﺎﯾﻧده اﻧﺣﺻﺎری ﻣﺣﺻوﻻت ھﺎﻧﯾﺎﻧﮓ ﮐره PV filter When PV value becomes unstable due to effects of noise, the filter helps suppress the unstable status. (Range: OFF or 1 ~ 120 sec. initial value: OFF) PV bias Use this function to adjust PV value in cases where it is necessary for PV value to agree with another recorder or indicator, or when the sensor cannot be mounted in correct location.
-
Page 23: Function
Reference controller performs ON/OFF control and point 1 determine proper P.I and D. (Limit cycle type) PID 1 RT9-1 series have two types of Auto-tuning as Time (t) min. value of measuring range below. RAMP FUNCTION Standard type auto-tuning :... - Page 24 ﺷرﮐت ﺳﯾوان ﻧﻣﺎﯾﻧده اﻧﺣﺻﺎری ﻣﺣﺻوﻻت ھﺎﻧﯾﺎﻧﮓ ﮐره FUZZY CONTROL HOLD FUNCTION Without hold function, Low limit alarm will be Fuzzy control eliminates overshoot using Fuzzy ON when increasing temperature. (Picture 1) Logic. Employing Fuzzy control and Auto- tuning, the controller effectively control as Hold function : None below.
- Page 25 ﺷرﮐت ﺳﯾوان ﻧﻣﺎﯾﻧده اﻧﺣﺻﺎری ﻣﺣﺻوﻻت ھﺎﻧﯾﺎﻧﮓ ﮐره MEMO 021-33989001 www.sivancarno.com 021-33989002...
- Page 26 ﺷرﮐت ﺳﯾوان ﻧﻣﺎﯾﻧده اﻧﺣﺻﺎری ﻣﺣﺻوﻻت ھﺎﻧﯾﺎﻧﮓ ﮐره #1381-3, Juan-dong, Nam-gu, Incheon, Korea TEL:(82-32) 876-4697 FAX:(82-32) 876-4696 http://www.hynux.com E-mail: sdt@hyelec.co.kr MA01E50110 021-33989001 www.sivancarno.com 021-33989002...
