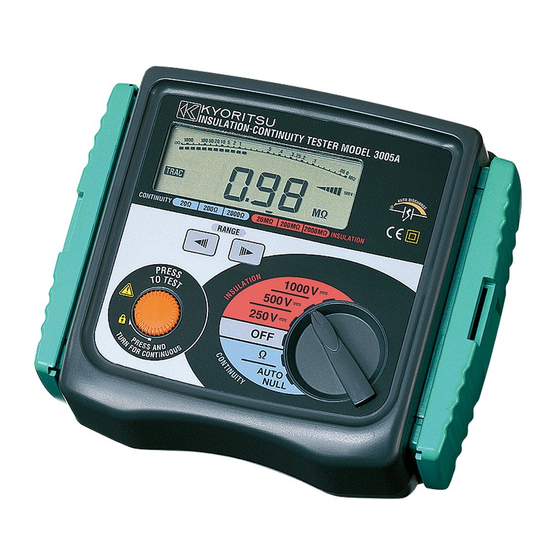

- Page 1 INSTRUCTION MANUAL DIGITAL INSULATION-CONTINUITY TESTER MODEL 3005A /3007A KYORITSU ELECTRICAL INSTRUMENTS WORKS, LTD. balTestSupply .com sales@GlobalTestSupply.com...
-
Page 2: Table Of Contents
CONTENTS 1. SAFETY PRECAUTIONS ······································································· 1 2. FEATURES ···························································································· 4 3. SPECIFICATIONS ················································································· 5 4. INSTRUMENT LAYOUT ········································································· 9 4-1 Instrument layout ············································································· 9 4-2 LCD ································································································ 10 4-3 Connector ······················································································· 11 5. PREPARATION FOR MEASUREMENT ··············································· 12 5-1 Removing the Cover ······································································· 12 5-2 Battery Voltage Check ·····································································... -
Page 3: Safety Precautions
● The instrument must only be used by a competent trained person and operated in strict accordance with the instructions. KYORITSU will not accept any liability for any damage or injury caused by misuse or non- compliance with the instructions or safety procedures. - Page 4 ● Never change function switches with test probe connected to the equipment under test. ● Do not install substitute parts, perform any unauthorized modification, or disassemble the instrument. Return the instrument to Kyoritsu or your distributor for service and repair so as to ensure the safety features are maintained.
- Page 5 CAUTION ● Always make sure to set the function switch or range selector switch to the appropriate position before taking measurements. ● Do not expose the instrument to the direct sun, dew fall or extreme temperature and/or humidity. ● When the instrument will not be in use for a long period of time, place it in storage after removing batteries.
-
Page 6: Features
2. FEATURES MODEL-3005A/3007A are microprocessor controlled insulation-continuity testers. ● Designed to safety standards: IEC 61010-1 Overvoltage CAT III 300V Pollution Degree 2 IEC 61010-2-31 (Safety requirements for hand-held probe assemblies) ● Display with back light function to facilitate work at night or dimly lit locations (Model 3007A only) ●... -
Page 7: Specifications
3. SPECIFICATIONS ● Measuring Range and Accuracy (at 23±5°C, relative humidity 45 -75%) ○ Insulation Resistance Ranges: Nominal Output Voltage 250V 500V 1000V 0 ~19.99MΩ 0 ~19.99MΩ 0 ~19.99MΩ Measuring 0 ~ 199.9MΩ 0 ~ 199.9MΩ 0 ~ 199.9MΩ Ranges 0 ~ 1999MΩ... - Page 8 ● Typical Number of Measurements. (central tendency for supply voltage up to 8V) Insulation Resistance Ranges: Approx. 1000 times min. at load 0.5MΩ Continuity Ranges: Approx. 700 times min. at load 1Ω ● Operating Errors (IEC 61557-2,-4) Measuring range to keep Maximum percentage Functions Range...
- Page 9 IEC 60529 (IP54) Dust & drip proof ● Operating System: Dual integration ● Display: Liquid crystal display (maximum count: 1999), Unit, Mark Bar graph 30 points max. (20 points on Ω range) ● Over range Indication: "OL" is shown on the display. ●...
- Page 10 ● Dimensions: 185(L) x 167(W) x 89(D) mm approx. ● Weight: 990g approx. (including batteries) ● Power Source: 8 x R6P, 1.5V AA or equivalent ● Auto-power-off Function: Automatically turns off approx. 10 minutes after the last switch operation. Consumption current: approx. 75µA ●...
-
Page 11: Instrument Layout
4. INSTRUMENT LAYOUT 4-1 INSTRUMENT LAYOUT ⑩ ⑤ ① ⑪ ② ⑥ ③ ⑧ ⑨ ④ ⑦ ①… LCD DISPLAY ②… TRAC-LOKSWITCH (Model 3007A only) ③… RANGE SELECTOR SWITCH ④… TEST BUTTON ⑤… CONNECTOR ⑥… BACK LIGHT SWITCH (Model 3007A only) ⑦…... -
Page 12: Lcd
4-2 LCD DISPLAY 1… INSULATION RESISTANCE SCALE 2… BAR GRAPH 3… CONTINUITY SCALE 4… LIVE CIRCUIT WARNING AC LIVE CIRCUIT DISCHARGE VOLTAGE WARNING 0∼2V 0∼2V 3∼30V 3∼60V 31∼60V 61∼120V 61∼120V 121∼240V 120V over 240V over 5… TRACK/LOK MODE 6… AUTONULL OPERATION 7…... -
Page 13: Connector
10…OUTPUT VOLTAGE GRAPH (INSULATION RESISTANCE) FUNCTION SETTING PER RATED OUTPUT VOLTAGE 1 ~ 24% 25 ~ 49% 50 ~ 74% 75 ~ 99% 100% or over 11… OUTPUT VOLTAGE RANGE 12… MEASUREMENT VALUES 4-3 Connector ― 11 ― balTestSupply .com sales@GlobalTestSupply.com... -
Page 14: Preparation For Measurement
5. PREPARATION FOR MEASUREMENT 5-1 Removing the Cover Model 3005A/3007A have a dedicated cover to protect against an impact from the outside and prevent the operation part, LCD, and connector socket from becoming dirty. The cover can be detached and put on the back side of the main body during measurement. -
Page 15: Operation
6. OPERATION 6-1 Disconnection and check of power source of the circuit under test DANGER ● To avoid possible electrical shock, do not perform measurements on energized (LIVE) circuits. ● Never make measurements with the battery compartment cover removed. CAUTION ●... -
Page 16: Insulation Resistance Measurement
6-2 Insulation Resistance Measurement DANGER ● Always test the circuit or equipment to ensure it is surely de-energized before measurement according to the instruction of 6-1. ● To avoid electrical shock, measurements must be performed on de- energized circuits only. ●... - Page 17 ④ Read the resistance value from the LCD. ⑤ With the test probe still connected to the circuit under test, release the test button to discharge capacitance in the circuit after measurement. DANGER Do not touch the circuit under test immediately after testing. Capacitance stored in the circuit may cause electric shock.
-
Page 18: Continuity Measurement (Resistance Tests)
●Terminal connection of insulation resistance test In case of testing insulation of insulated wire and cable against the earth at direct current, connecting - pole of power to cable conductor, + to the earth obtains smaller measuring value, compared with connecting the other way round. -
Page 19: Continuous Measurement
● Principle of Continuity Measurement (Resistance Test) Resistance value can be obtained by applying a certain current to the resistance under test and measuring the voltage generated on the both sides of the resistor under test. Resistance value = Voltage / Current 6-4 Continuous Measurement A lock down feature is incorporated on the test button. -
Page 20: Functions
7. FUNCTIONS 7-1 TRAC-LOK MODE (Model 3007A) TRAC mode : Measurement can be conducted while the test button is being pressed. When making continuous measurement, select this mode. LOK mode : When the test button is pressed, measurement can be conducted only once, and output is stopped, then automatically discharged. -
Page 21: Battery & Fuse Replacement
8. BATTERY & FUSE REPLACEMENT DANGER ● Never open the battery compartment cover while making measurement. To avoid possible electrical shock, disconnect the test probe before opening the cover for battery and fuse replacement. ● Replacement fuse must be have the following rating. Fast acting type, F 500mA/600V, φ... -
Page 22: Case And Strap Belt Assembly
9. CASE AND STRAP BELT ASSEMBLY By hanging the instrument around the neck, both hands can be used freely for easy and safety working. Pass the strap belt down through the side panel of the main body from the top, and up through the slots of the probe case from the bottom. -
Page 23: Cleaning Of The Instrument
10. CLEANING OF THE INSTRUMENT ● When cleaning the instrument, wipe it with a silicon cloth or soft cloth to remove dust or dirt. ● When it is hard to remove the dirt, wipe it with a cloth wet with water and dry the instrument completely after cleaning. - Page 24 DISTRIBUTOR Kyoritsu reserves the rights to change specifications or designs described in this manual without notice and without obligations. KYORITSU ELECTRICAL INSTRUMENTS WORKS, LTD. No.5-20,Nakane 2-chome, Meguro-ku, Tokyo 152-0031 Japan Phone :(03) 3723-0131 Fax : (03) 3723-0152 URL : http://www.kew-ltd.co.jp E-mail : info@kew-ltd.co.jp...
