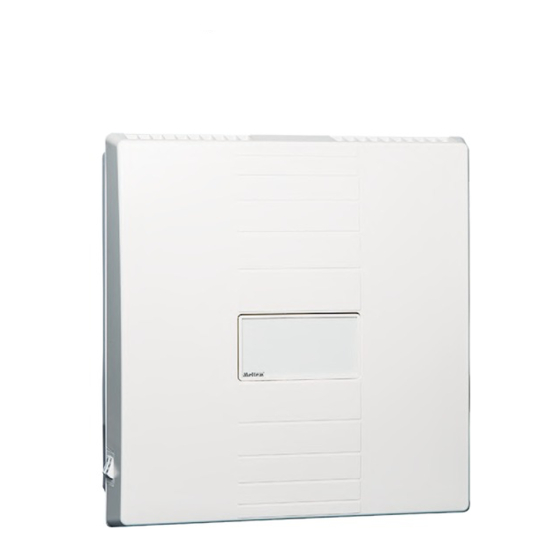

home ventilation with heat recovery
.
for surface-mount and flush-mount installation
of m-wrg ventilation units (32 pages)
Page 1
V E N T I L AT I O N & H E AT R E C O V E R Y HOME VENTILATION WITH HEAT RECOVERY M-WRG-S/Z-T(-F, -FC) and InControl pushbutton sensor Connecting the ventilation unit M-WRG-S/Z-T(-F, -FC) to the InControl pushbutton sensor CO ² Part no. 5301-09-01 Week 50/2015 EN VE NT I LAT I O N TH E R IG HT W AY Meltem Wärmerückgewinnung GmbH &...
Connection diagram ......................6 Connecting one ventilation unit ..................7 Connecting the InControl pushbutton sensor to the M-WRG-S/Z-T ventilation unit ..7 Connecting the InControl pushbutton sensor to the M-WRG-S/Z-T-F ventilation unit ..8 Connecting the InControl pushbutton sensor to the M-WRG-S/Z-T-FC ventilation unit ... 9 Connecting 2 to 5 ventilation units ................
Introduction Notes on this installation manual This installation manual contains important information that should be followed when connecting the M-WRG-S/Z-T, M-WRG-S/Z-T-F and M-WRG-S/Z-T-FC ventilation units to the InControl push- button sensor. ► Read all the instructions carefully before installing to avoid possible risks and mistakes.
A note as used in this manual contains important information about the product or about a part of the manual to which particular attention should be paid. VE NT I LAT I O N TH E R IG HT W AY Meltem Wärmerückgewinnung GmbH & Co. KG Am Hartholz 4 · D-82239 Alling info@meltem.com · www.meltem.com...
— The ventilation unit must not be operated without a filter. — For any use contrary to the intended use, Meltem Wärmerückgewinnung GmbH & Co. KG shall accept no liability for any damage that may occur and offers no warranty that the components will work perfectly and correctly. Warranty and liability The warranty and liability shall be void if the ventilation unit or InControl pushbutton sensor is not connected as described in this installation manual.
Fig. 4: InControl pushbutton sensor connection diagram VE NT I LAT I O N TH E R IG HT W AY Meltem Wärmerückgewinnung GmbH & Co. KG Am Hartholz 4 · D-82239 Alling info@meltem.com · www.meltem.com - 6 -...
3 4 5 6 7 8 GND Fig. 5: Terminal blocks on M-WRG-S/Z-T, terminal blocks on InControl pushbutton sensor, M-WRG-S/Z-T insert sheet VE NT I LAT I O N TH E R IG HT W AY Meltem Wärmerückgewinnung GmbH & Co. KG Am Hartholz 4 ·...
Humidity control control Unused Unused Humidity control LED control LED Table 3: Connecting the InControl pushbutton sensor to the M-WRG-S/Z-T-FC ventilation unit 7 6 5 4 3 2 1 Pushbutton 3 4 5 6 7 8 GND CO ² Fig. 7:...
3 (slave) 4 (slave) 5 (slave) Table 4: Connecting the InControl pushbutton sensor to M-WRG-S/Z-T ventilation units VE NT I LAT I O N TH E R IG HT W AY Meltem Wärmerückgewinnung GmbH & Co. KG Am Hartholz 4 · D-82239 Alling info@meltem.com ·...
