Summary of Contents for Rockville RPA-9

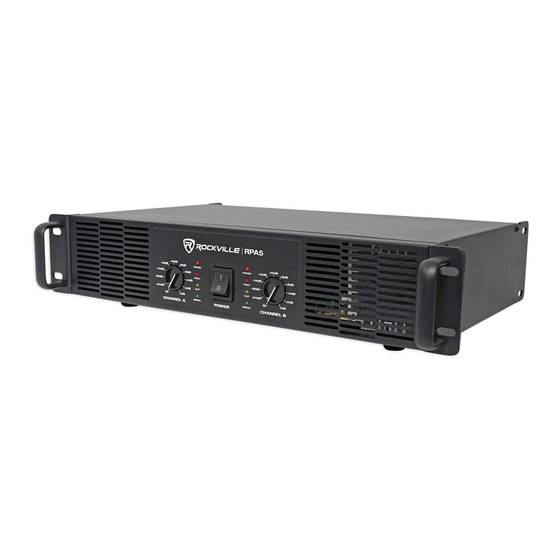

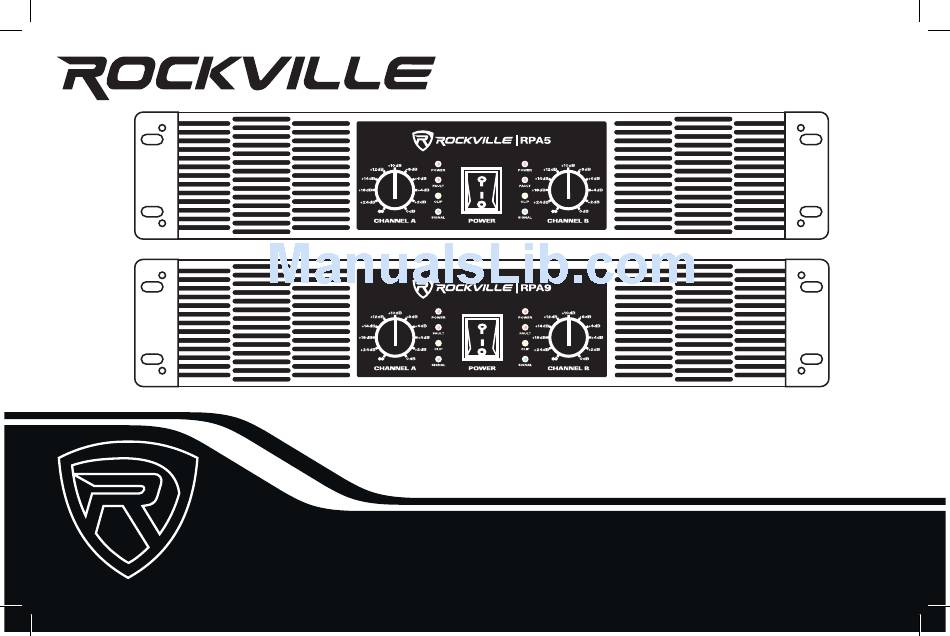

- Page 1 RPA-5 RPA-9 PROFESSIONAL STEREO POWER AMPLIFIER OWNER’S MANUAL...
- Page 2 Features Front Panel RPA-5 / RPA-9 (Pictured RPA-5) 1. Rack Ears: Allows for unit rack mount using four attaching screws and washers (not included). 2. Channel A Signal Gain Detented Adjustment Knobs: Precisely adjust the signal input level using these knobs. Turn counter-clockwise to increase signal gain.
- Page 3 Features Back Panel RPA-5 / RPA-9 (pictured RPA-5) 1. Built-in dual high velocity cooling fans 2. Channel A /B XLR / ¼˝ TRS / TS combo inputs 3. Channel A /B ¼˝ Link Out 4. Channel A / B RCA inputs 5.
- Page 4 Configurations Digital Recorder Live Music Microphones MP3 Player Keyboard Guitar Amp Mixer...
- Page 5 Recording Studio Bass Amp Microphones Keyboard Bass Guitar Guitar Amp Drum Set Electric Guitar Mixer...
- Page 6 DJ Controller DJ Set-up Turntable 1 Mixer Turntable 2...
- Page 7 Connections Make sure the switch is set to STEREO Stereo Bridged Make sure the switch is set to BRIDGE...
-
Page 8: Troubleshooting
2. Be sure all appropriate cables are plugged in correctly. 3. If using a mixing console make sure fader and balance are set to center positions and level increased. 4. If problem persist return the unit to Rockville or contact a local, qualified pro audio technician. - Page 9 Features • 2U rack space • Bridged and Stereo output switch makes this perfect for (2) subwoofer, (2) speakers, or (4) speakers • Built in crossover switch makes this perfect for speakers, monitors, or subwoofers • Channel A & B Clipping Led Indicators •...
-
Page 10: Specifications
Specifications Model RPA-5 RPA-9 RMS (PEAK) RMS (MAX) Stereo 8 Ohm 2 x 125W (2 x 250W) 2 x 250W (2 x 1000W) Stereo 4 Ohm 2 x 250W (2 x 400W) 2 x 400W (2 x 1500W) Bridged 4 Ohm... - Page 11 FEDERAL COMMUNICATIONS COMMISSION COMPLIANCE INFORMATION Responsible party name: Rockville Address: 600 Bayview Ave, Entrance A, Inwood, NY 11096 Hereby declares that the product(s) RPA series pro audio amplifiers comply with FCC rules as mentioned in the following paragraph: This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 12 RockvilleAudio.com © 2018 ROCKVILLE // Features and specifications are subject to change and or improvement without notice.
