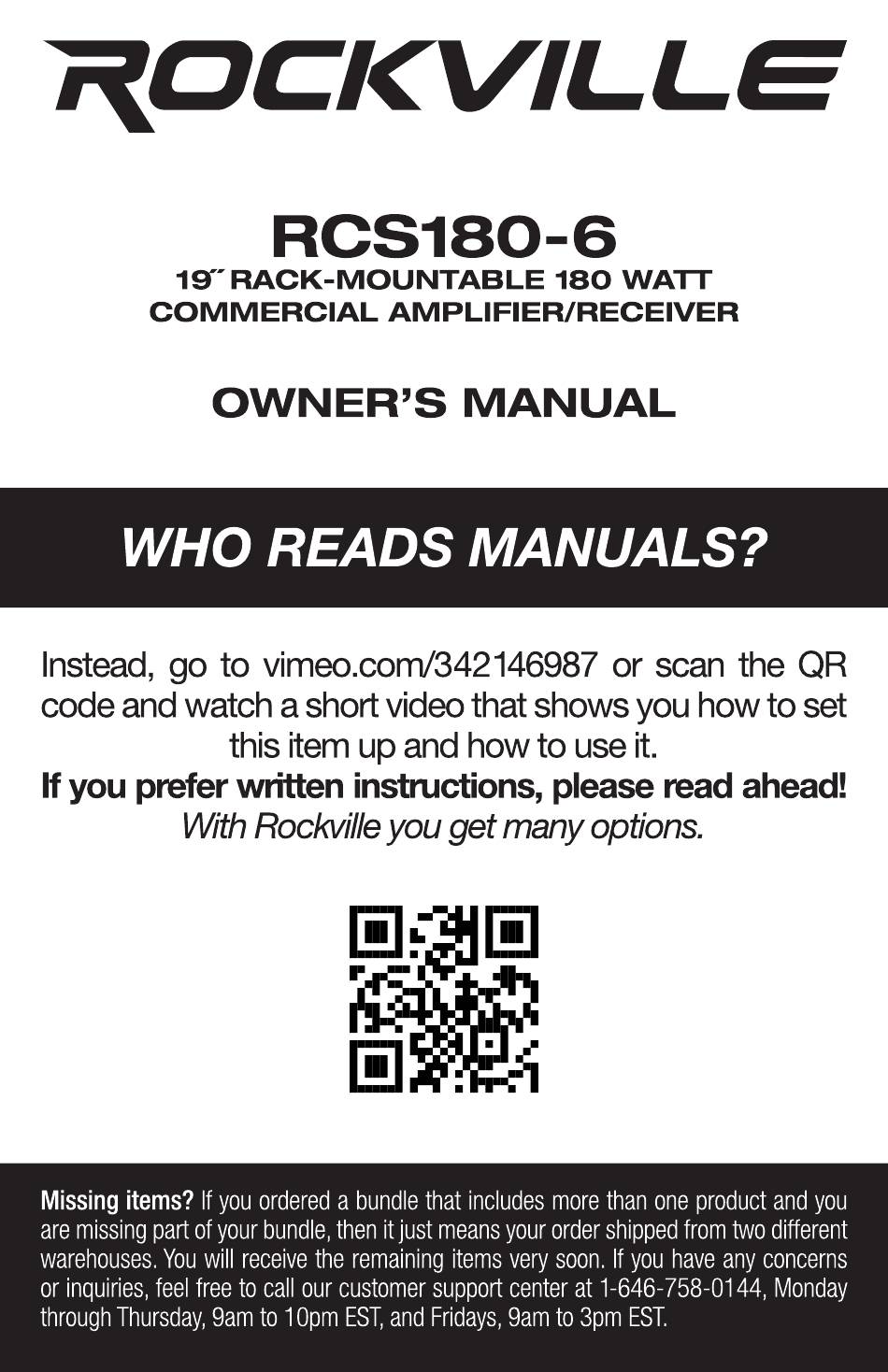

Rockville RCS180-6 Owner's Manual
  1. Manuals
  2. Brands
  3. Rockville Manuals
  4. Amplifier
  5. RCS180-6
  6. Owner's manual

Rockville RCS180-6 Owner's Manual

19 rack-mountable 180 watt commercial amplifier/receiver
Hide thumbs

Advertisement

Table of Contents

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RCS180-6 and is the answer not in the manual?

Questions and answers

Related Manuals for Rockville RCS180-6

Summary of Contents for Rockville RCS180-6

  • Page 3: Important Safety Instructions

    Thank you for purchasing this Rockville product. Please read this installation guide care­ fully for proper use of your Rockville RCS18 0-6 Rack Mountable Commercial Amplifier/ Receiver. Should you need technical assistance please call our technical help line at 1-646- 758-0144, Monday through Thursday, 9am to 10pm EST, and Fridays, 9am to 3pm EST.
  • Page 4 Introduction Rockville is proud to introduce our new RCS series of products. The RCS180-6 is a 180- Watt 6-zone rack mountable digital hybrid amplifier/receiver. This amplifier is capable of 70-volt, 100-volt, 8-ohm, and 4-ohm applications. This makes it perfect for use in a restaurant/bar/cafe/lounge/school/conference room or any other setting where many speakers are needed.
  • Page 5 What is 70 Volt? 70-volt systems are the number one choice for any application where you want to install multiple speakers. With 70 volt there are a lot of advantages over 8-ohm systems. One of the main advantages is the simplicity of the wiring as well as how easy it is to match up speakers with the amplifier.
  • Page 6 Functions 1. Power switch 2. SD card input slot (32GB max) 3. LCD display 4. USB input port (32GB max) 5. Record function LED indicator 6. Chime button: for making announcements via Mic 1 input. 7. Independent mic volume controls 8.
  • Page 7 15. 2-Band EQ controls: Adjust the bass and treble levels of all output. 16. Master volume control 17. Signal input level indicator LEDs 18. FM antenna 19. 70V/100V direct speaker output binding posts 20. 4 to 16-ohm direct speaker output binding post 21.
  • Page 8 CAUTION: For low impedance cable for output wiring. loads only. The RCS180-6 features one RCA line output. We recommend you use high quality RCA cables such as Rockville's RNRTR, RNRMR, or RCDR series. Selecting Input cables There are three ¼" balanced TRS mic inputs, one optical input, and one RCA input on the RCS180-6.

  • Page 9: Connecting Speakers

    Output Configurations The RCS180-6's 70V and 100V connections can be set up in a variety of ways. Please note that utilizing direct speaker connections and speaker zone connections simultaneously is not recommended and will cause damage to the amplifier and the speakers.
  • Page 10 Output Configurations {continued) for any one zone does not exceed 100 watts and the overall total output of the zones does not exceed 180 watts. As with the direct outputs, best practice is to allow for about 10 - 20% "head room" or extra power. So, the total output power of the speakers connected to any one zone should not exceed 80 - 90 watts, and the total power output of all the zones combined should not exceed 150 -160 watts.
  • Page 11 70V/100V Direct Speaker (Binding Post Terminals) You may connect any number of speakers to the 70 or 100-volt direct speaker output binding posts as long as the total wattage does not exceed 180 watts. Best practice is to allow for about 10 - 20% "head room" or extra power to handle any unusual amp requirements such as a deep bass note or a booming finale.
  • Page 12 4 to 16-0hm Direct Speaker Output (Binding Post Terminals) You can connect two speakers to this terminal as long as the final impedance does not fall below 4 ohms. Although it is possible to connect more than two speakers to these terminals, it is not recommended.
  • Page 13 In-Wall Volume Controls Although the RCS180-6 offers individual zone volume controls, there may be occasions when you may want to adjust the volume of a specific zone without having to return to the amplifier. In-wall volume controls are the perfect solution and they are relatively easy to set up.

  • Page 14: Operation

    4. Once in Bluetooth mode, the unit should automatically pair with your device and you will hear a voice prompt. If not, look for "RCS180-6" on your device and select it. 5. Once connected, the LCD screen will display the word "Connected".

  • Page 15: Specifications

    While in USB/SD mode, you can record to a USB or SD card. Simply press and hold the record button for 3 seconds to begin recording. Features • Rockville RCS180-6 180-Watt 19" Rack Mountable Commercial Amplifier/Receiver • Capable of 70 volt, 100 volt, 8 ohm, and 4 ohm • 70/100-volt RMS Power: 184 Watts •...

  • Page 16: Troubleshooting

    Troubleshooting PROBLEM SOLUTION No power 1. Make sure the unit is plugged in and the power switch is in the ON position. 2. Check that the power cable is properly plugged into the wall socket. 3. Check and replace the fuse if necessary. 4.

  • Page 17: Federal Communications Commission Compliance Information

    Address: 600 Bayview Ave. Entrance A Inwood, NY 11096 Hereby declares that the product(s) RCS180-6 complies with FCC rules as mentioned in the following paragraph: This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 20 RockvilleAudio.con, © 2021 ROCKVILLE // Features and specifications are subject to change and/or improvement without notice.
