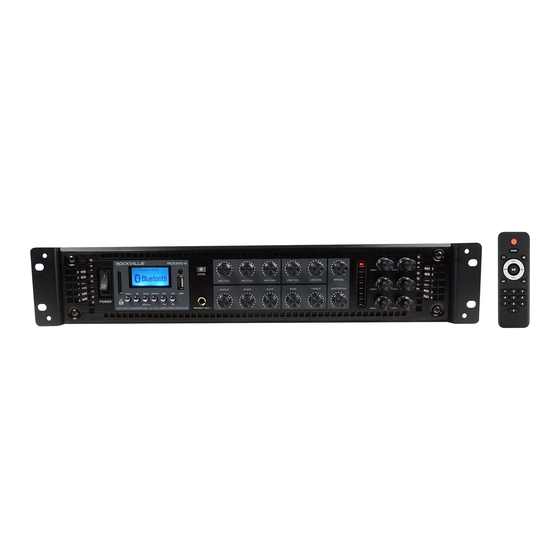

RCS350-6
19˝ RACK MOUNTABLE 350 WATT
COMMERCIAL AMPLIFIER/RECEIVER
OWNER'S MANUAL
WHO READS MANUALS?
Instead, go to vimeo.com/342145237 or scan the QR
code and watch a short video, which shows you how to
set this item up and how to use it.
If you prefer written instructions please read ahead!
With Rockville we offer many options.
Missing items? If you ordered a bundle that includes more than one product and you
are missing part of your bundle then it just means your order shipped from two different
warehouses. You will receive the remaining items very soon. If you have any concerns
or inquiries, feel free to call our customer support center at 646-758-0144, Monday
through Thursday, 9am to 10pm EST, and Fridays, 9am to 3pm EST.
Advertisement
Related Manuals for Rockville RCS Series
Summary of Contents for Rockville RCS Series
- Page 1 If you prefer written instructions please read ahead! With Rockville we offer many options. Missing items? If you ordered a bundle that includes more than one product and you are missing part of your bundle then it just means your order shipped from two different warehouses.
- Page 3 Thank you for purchasing this Rockville product. Please read this installation guide carefully chasing this Rockville pr for proper use of your Rockville RCS350-6 Rack Mountable Commercial Amplifier/Receiver. oper use of your Rockville RCS350-6 Rack Mountable Commer Should you need tassistance please call our technical help line at 1-646-758-0144, Monday Should you need tassistance please call our technical help line at 1-646-758-0144, Monday through Thursday, 9am to 10pm EST., and Fridays, 9am to 3pm EST.
- Page 4 Our goal with the RCS series was to make it possible for anyone to install 70-volt sys- Our goal with the RCS series was to make it possible for anyone to install 70-volt sys tems on their own without spending thousands of dollars on a contractor.
- Page 5 What is 70 Volt? olt? 70-volt systems are the number one choice for any application where you want to install e the number one choice for any application wher multiple speakers. With 70 volt there are a lot of advantages over 8-ohm systems. One multiple speakers.
- Page 6 Functions 12 12 1. Power switch 1. Power switch 2. SD card input slot (32GB max) d input slot (32GB max) d input slot (32GB max) 3. LCD display 4. USB input port (32GB max) 4. USB input port (32GB max) 5.
- Page 7 13. Priority Mic1 ¼˝ TRS input: Input signal detected from this port will override all other 3. Priority Mic1 ¼ ˝ TRS input: Input signal detected fr input signals. Works in conjunction with the Chime (see item 6) and Mute features (see item 23). input signals.
- Page 8 Functions (continued) Remote Control 1. ON/OFF 2. Mode: Switch between SD, USB, Bluetooth, and FM radio. Switch between SD, USB, Bluetooth, and FM radio. 3. Change preset EQ: Normal, rock, pop, classic, jazz, and country. ock, pop, classic, jazz, and country 4.
- Page 9 ¼˝ balanced TRS mic inputs and two RCA inputs on the RCS350-6. W recommend you use high quality Rockville cables like the RCXMB, RCXFB, or RCTR series ecommend you use high quality Rockville cables like the RCXMB, RCXFB, or RCTR series ¼˝...
- Page 10 Connections (continued) Multi-Zone Connection Example Multi-Zone Connection Example In this example we have various speaker combinations (totaling 17 speakers) In this example we have various speaker combinations (totaling connected to various zones, none exceeding more than 80 watts per zone and with connected to various zones, none exceeding mor connected to various zones, none exceeding mor a total overall zone power rating of 215 watts, well below the maximum total zone...
- Page 11 70V/100V Direct Speaker (Binding Post Terminals) You may connect any number of speakers to the 70 or 100-volt direct speaker output binding posts as long as the total wattage does not exceed 350 watts. Best practice is to allow for about 10 – 20% “head room” or extra power to handle any unusual amp to allow for about 1 requirements such as a deep bass note or a booming finale.
- Page 12 Connections (continued) 4 to 16-Ohm Direct Speaker Output (Binding Post Terminals) You can connect two speakers to this terminal as long as the final impedance does not fall below 4 ohms. Although it is possible to connect more than two speakers to these fall below 4 ohms.
- Page 13 In-Wall Volume Controls Although the RCS350-6 offers individual zone volume controls, there may be occasions when you may want to adjust the volume of a specific zone without having to return to the amplifier. In-wall volume controls are the perfect solution and they are relatively easy .
-
Page 14: Operation
Operation Bluetooth Pairing To connect your iPod, iPhone, MP3 player, Android phone, or any other Bluetooth-capable device, follow the steps listed below. device, follow the steps listed below 1. Make sure the RCS350-6 unit’s power switch is in the ON position. e the RCS 2. - Page 15 While in USB/SD mode, you can record to a USB or SD card. Simply press and hold the record button for 3 seconds to begin recording. Press again to stop recording. Features • Rockville RCS350-6 350-Watt 19˝ Rack Mountable Commercial Amplifier/Receiver • Rockville RCS350-6 350-W • Capable of 70 volt, 100 volt, 8 ohm, and 4 ohm •...
-
Page 16: Troubleshooting
Troubleshooting PROBLEM SOLUTION No power 1. Make sure the unit is plugged in and the power switch is in the ON position. 2. Check that the power cable is properly plugged into the wall socket. 3. Check and replace the fuse if necessary. 4. -
Page 17: Federal Communications Commission Compliance Information
FEDERAL COMMUNICATIONS COMMISSION COMPLIANCE INFORMATION Responsible party name: Rockville Address: 600 Bayview Ave. ess: 600 Bayview A Entrance A Entrance A Inwood, NY 11096 Inwood, NY 11096 Hereby declares that the product(s) RCS350-6 complies with FCC rules as mentioned in... - Page 18 RockvilleAudio.com ©2021 ROCKVILLE // Features and specifications are subject to change and or improvement without notice.
