Omron E5CN-HQ2MD-500 Manual

Advanced Digital Temperature Controller
E5CN-H
A New High-performance Controller: High Resolution, High Speed, and
High Input Accuracy.
Logic Operations and Preventive
Maintenance Function.
• High-resolution display with 5 digits/0.01°C display in a compact
Controller (48 x 48 mm).
• High-speed sampling cycle of 60 ms.
• High Accuracy
Thermocouple/Pt input: ±0.1% of PV
Analog input: ±0.1% FS
• Universal inputs on all models (thermocouple, PT, or analog
input) to handle various sensors with one Controller.
• A PV/SV-status display function can be set to automatically alternate
between displaying the status of the Temperature Controller (auto/
manual, RUN/STOP, and alarms) and the PV or SV.
• Flexible contact outputs with logic operations (AND, OR, and
delays) set from the Support Software (CX-Thermo Ver. 4.0)
• Preventive maintenance for relays in the Temperature
Controller using a Control Output ON/OFF Counter.
Main I/O Functions
Event Inputs
• None
• Two
Universal Sensor Inputs
• Universal thermocouple/Pt/analog
(current/voltage) inputs.
Indication Accuracy
• Thermocouple/Pt input: ±0.1% of PV
• Analog input: ±0.1% FS
Sampling Period
• 60 ms
This data sheet is provided as a guideline for selecting products. Be sure to refer to the following user manuals for application precautions
and other information required for operation before attempting to use the product.
E5CN-H/E5AN-H/E5EN-H Digital Controllers User's Manual Advanced Type (Cat. No. H157)
E5CN-H/E5AN-H/E5EN-H Digital Controllers Communications Manual Advanced Type (Cat. No. H159)
Buy Now: www.ValinOnline.com | Phone: 800-774-5630 | Email: CustomerService@valin.com
(48 x 48 mm)

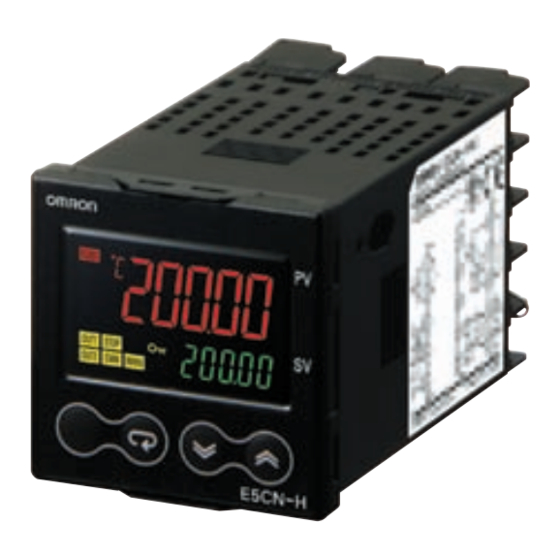

E5CN-H
2-level Display: PV and SV
Control Output 2
• None
• Voltage output
(for driving SSR)
Control Output 1
• Relay output
• Voltage output (for driving SSR)
• Current output
• Linear voltage output
48 × 48 mm
For the most recent information on models that have been certified for
safety standards, refer to your OMRON website.
Refer to Safety Precautions for E5
Refer to Operation for E5
procedures.
5-digit Display with high resolution of 0.01°C
• Auto/manual switching
• Temperature Controller status display
Auxiliary Outputs
• Simple program function
• Two
• Logic operations
• Control output ON/OFF count alarm
• PV change rate alarm
• Models also available with RS-485 or
RS-232C communications
