E5cn-h series. advanced digital temperature controller. logic operations and preventive maintenance function.
Hide thumbs Also See for E5CN-HR2M-500:

Advertisement

Table of Contents

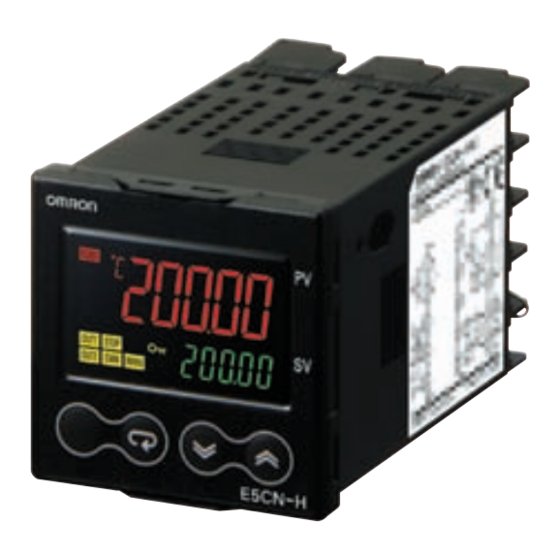

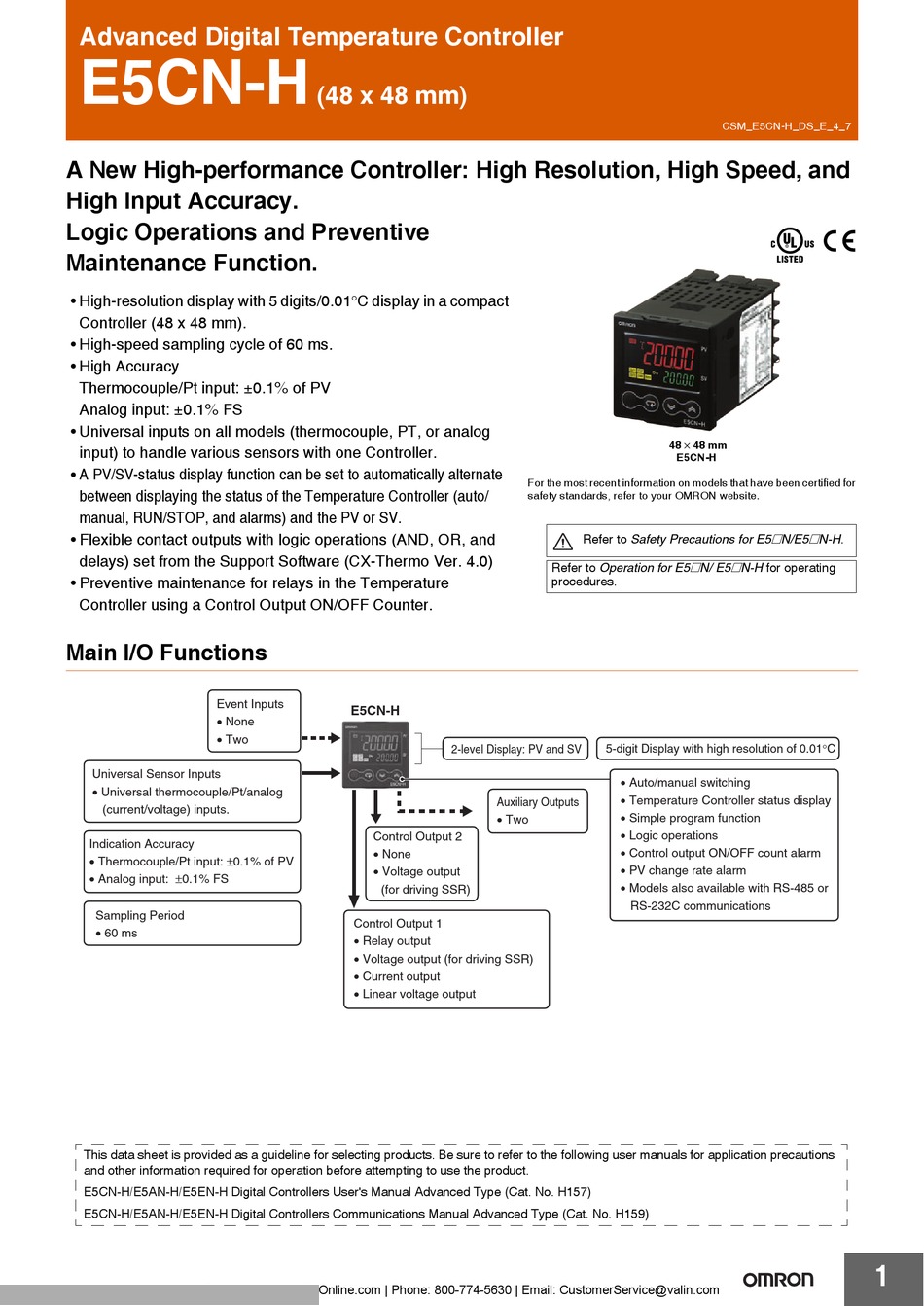

Advanced Digital Temperature Controller
E5CN-H
A New High-performance Controller: High Resolution, High Speed, and
High Input Accuracy.
Logic Operations and Preventive
Maintenance Function.
• High-resolution display with 5 digits/0.01°C display in a compact
Controller (48 x 48 mm).
• High-speed sampling cycle of 60 ms.
• High Accuracy
Thermocouple/Pt input: ±0.1% of PV
Analog input: ±0.1% FS
• Universal inputs on all models (thermocouple, PT, or analog
input) to handle various sensors with one Controller.
• A PV/SV-status display function can be set to automatically alternate
between displaying the status of the Temperature Controller (auto/
manual, RUN/STOP, and alarms) and the PV or SV.
• Flexible contact outputs with logic operations (AND, OR, and
delays) set from the Support Software (CX-Thermo Ver. 4.0)
• Preventive maintenance for relays in the Temperature
Controller using a Control Output ON/OFF Counter.
Main I/O Functions
Event Inputs
• None
• Two
Universal Sensor Inputs
• Universal thermocouple/Pt/analog
(current/voltage) inputs.
Indication Accuracy
• Thermocouple/Pt input: ±0.1% of PV
• Analog input: ±0.1% FS
Sampling Period
• 60 ms
This data sheet is provided as a guideline for selecting products. Be sure to refer to the following user manuals for application precautions
and other information required for operation before attempting to use the product.
E5CN-H/E5AN-H/E5EN-H Digital Controllers User's Manual Advanced Type (Cat. No. H157)
E5CN-H/E5AN-H/E5EN-H Digital Controllers Communications Manual Advanced Type (Cat. No. H159)
Buy Now: www.ValinOnline.com | Phone: 800-774-5630 | Email: CustomerService@valin.com
(48 x 48 mm)
E5CN-H
2-level Display: PV and SV
Control Output 2
• None
• Voltage output
(for driving SSR)
Control Output 1
• Relay output
• Voltage output (for driving SSR)
• Current output
• Linear voltage output
48 × 48 mm
For the most recent information on models that have been certified for
safety standards, refer to your OMRON website.
Refer to Safety Precautions for E5
Refer to Operation for E5
procedures.
5-digit Display with high resolution of 0.01°C
• Auto/manual switching
• Temperature Controller status display
Auxiliary Outputs
• Simple program function
• Two
• Logic operations
• Control output ON/OFF count alarm
• PV change rate alarm
• Models also available with RS-485 or
RS-232C communications
CSM_E5CN-H_DS_E_4_7
E5CN-H
@
@
N/E5
N-H.
@
@
N-H for operating
N/ E5
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the E5CN-HR2M-500 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Omron E5CN-HR2M-500

Summary of Contents for Omron E5CN-HR2M-500

  • Page 1 For the most recent information on models that have been certified for between displaying the status of the Temperature Controller (auto/ safety standards, refer to your OMRON website. manual, RUN/STOP, and alarms) and the PV or SV. • Flexible contact outputs with logic operations (AND, OR, and...
  • Page 2 E5CN-H Lineup 1 control output 2 auxiliary outputs E5CN-H Terminal block Fully universal input Advanced Type 2 control outputs 2 auxiliary outputs Note: Models with one control output and models with two control outputs can be used for heating/cooling control. Model Number Structure Model Number Legend Controllers...

  • Page 3: Option Units

    E5CN-H Ordering Information Controllers Size Case Color Power supply voltage Auxiliary output Control output 1 Model Relay output E5CN-HR2M-500 Voltage output (for driving SSR) E5CN-HQ2M-500 100 to 240 VAC Current output E5CN-HC2M-500 Linear voltage output E5CN-HV2M-500 Black Relay output E5CN-HR2MD-500...

  • Page 4: Specifications Ratings

    E5CN-H Specifications Ratings No D in model number: 100 to 240 VAC, 50/60 Hz Power supply voltage D in model number: 24 VAC, 50/60 Hz; 24 VDC Operating voltage range 85% to 110% of rated supply voltage 100 to 240 VAC: 8.5 VA (max.) (E5CN-HR2 at 100 VAC: 3.0 VA) Power consumption 24 VAC/VDC: 5.5 VA (24 VAC)/3.5 W (24 VDC) (max.) (E5CN-HR2D at 24 VAC: 2.7 VA) Any of the following can be selected (i.e., fully universal input).

  • Page 5: Input Ranges

    E5CN-H Input Ranges Thermocouple/Platinum Resistance Thermometer/Analog Input (Fully Universal Inputs) Platinum resistance Analog Input type Thermocouple thermometer input 1 to 0 to 0 to 4 to 0 to Name Pt100 JPt100 PL II 20 mA 20 mA 10 V 2300.0 2300 1800.0 1800...

  • Page 6: Alarm Outputs

    E5CN-H Alarm Outputs Each alarm can be independently set to one of the following 13 alarm types. The default is 2: Upper limit. Auxiliary outputs are allocated for alarms. ON delays and OFF delays (0 to 999 s) can also be specified. Note: For models with heater burnout, SSR failure, and heater overcurrent detection, alarm 1 will be an OR output of the alarm selected from the following alarm types and the alarms for heater burnout, SSR failure, and heater overcurrent.
  • Page 7 E5CN-H Characteristics Thermocouple: (±0.1% of indicated value or ±1°C, whichever is greater) ±1 digit max. *1 Platinum resistance thermometer: (±0.1% of indicated value or ±0.5°C, whichever is greater) ±1 digit max. Indication accuracy Analog input: ±0.1% FS ±1 digit max. CT input: ±5% FS ±1 digit max.

  • Page 8: Communications Specifications

    E5CN-H USB-Serial Conversion Cable Current Transformer (Order Separately) Ratings Applicable OS Windows XP/Vista/7/8 Applicable software CX-Thermo version 4 or higher Dielectric strength 1,000 VAC for 1 min E5AN/E5EN/E5CN/E5CN-U/ Vibration resistance 50 Hz, 98 m/s Applicable models E5AN-H/E5EN-H/E5CN-H E54-CT1: Approx. 11.5 g, Weight USB interface standard Conforms to USB Specification 1.1.

  • Page 9: External Connections

    E5CN-H External Connections • A voltage output (control output, for driving SSR) is not electrically insulated from the internal circuits. When using a grounding thermocouple, do not connect any of the control output terminals to ground. If the control output terminals are connected to ground, errors will occur in the measured temperature values as a result of leakage current.
  • Page 10 E5CN-H Isolation/Insulation Block Diagrams Transfer output Temperature input/Analog input/CT input/Voltage pulse output Communications/Event inputs Power supply Linear current output/Linear voltage output Relay output Auxiliary output 1, 2 : Reinforced insulation : Functional insulation Nomenclature E5CN-H Temperature unit SUB1 SUB2 No. 1 display SUB3 Operation indicators OUT1...

  • Page 11: Terminal Cover

    IP66. The time for periodic replacement depends on the operating environment. Be sure to confirm this point at your site. 48.8 Consider one year a rough standard. OMRON shall not be liable for the level of water resistance if the customer does not perform periodic replacement.) The Waterproof Packing does not need to be attached if a waterproof structure is not required.
  • Page 12 E5CN-H Adapter Y92F-45 Note: 1. Use this Adapter when the panel has already been prepared for the E5B@. 2. The Adapter is available only in black. Fixture (Accessory) 69.6 to 77.6 72 × 72 67 × 67 Mounted to E5CN-H Panel (1 to 8 mm) 72 ×...
  • Page 13 (a) Exclusive Warranty. Omron’s exclusive warranty is that the Products will be free from defects in materials and workmanship for a period of twelve months from the date of sale by Omron (or such other period expressed in writing by Omron). Omron disclaims all other warranties, express or implied.
