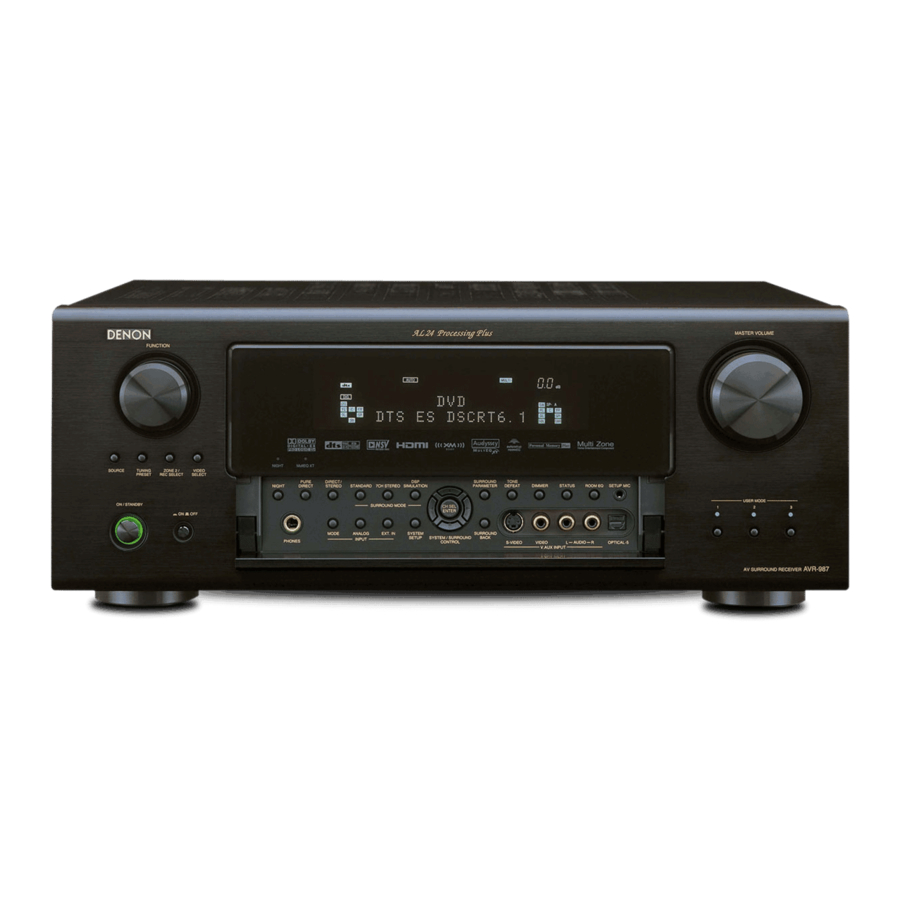

AV SURROUND RECEIVER
AVR-987
OPERATING INSTRUCTIONS

Advertisement

Table of Contents
loading

Related Manuals for Denon AVR-987

Summary of Contents for Denon AVR-987

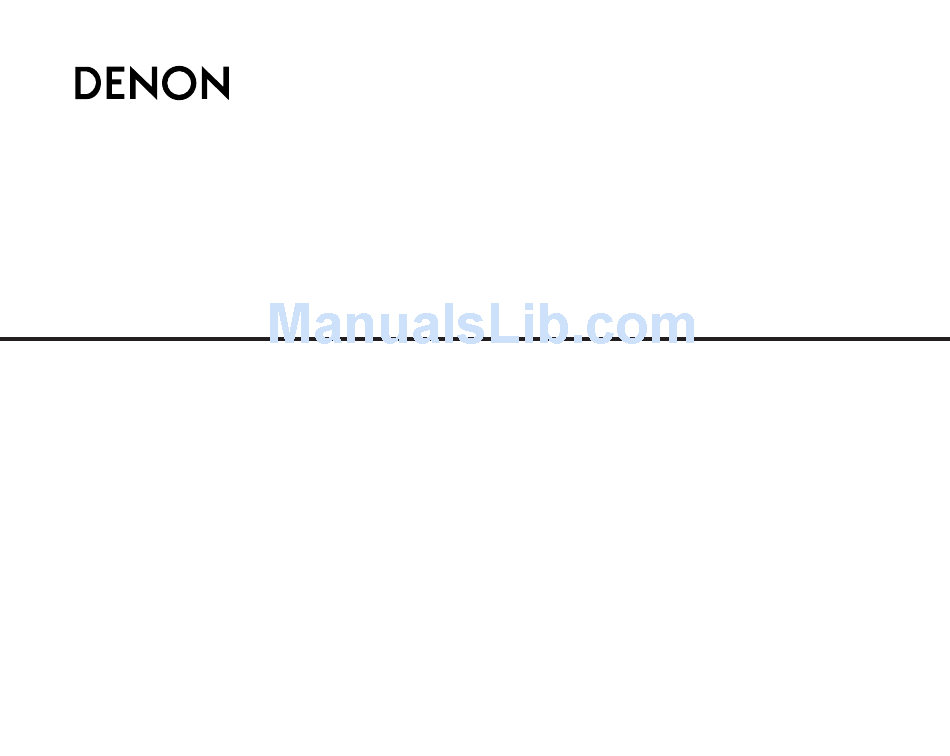

  • Page 1 AV SURROUND RECEIVER AVR-987 OPERATING INSTRUCTIONS...

  • Page 2: Safety Instructions

    2 SAFETY PRECAUTIONS CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage”...
  • Page 3 2. IMPORTANT NOTICE: DO NOT MODIFY THIS PRODUCT This product, when installed as indicated in the instructions contained in this manual, meets FCC requirements. Modification not expressly approved by DENON may void your authority, granted by the FCC, to use the product. 3. NOTE This product has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
  • Page 4 We greatly appreciate your purchase of the AVR-987. To be sure you take maximum advantage of all the features the AVR-987 has to offer, read these instructions carefully and use the set properly. Be sure to keep this manual for future reference should any questions or problems arise.

  • Page 5: Table Of Contents

    Getting Started Thank you for choosing the DENON AVR-987 AV Surround Receiver. This remarkable component has been engineered to provide superb surround sound listening with home theater sources such as DVD, as well as providing outstanding high fidelity reproduction of your favorite music sources.

  • Page 6: Advanced Setup - Part

    Setting the Direct Mode Setup ············································60 Setting the MIC Input Select················································61 Check the parameter ····························································61 Operating the remote control unit Operating DENON audio components································62 Setting the preset memory function ··································62 Operating a component stored in the preset memory····63, 64 Setting the punch through function ···································65 Additional Information·················································...

  • Page 7: Cautions On Installation

    For heat dispersal, do not install this unit in a confined space such as a bookcase or similar enclosure. Note About the remote control unit In addition to controlling the AVR-987, the attached remote control unit (RC-1051) can also be used to control the following products: q DENON component products w Component products other than DENON: •...

  • Page 8: Part Names And Functions

    Getting Started Part names and functions For details on the functions of these parts, refer to the pages given in parentheses ( ). Front panel !9 !9 @0 @0 @ 1 @1 @ 2 @2 @ 3 @3 @4 @4 @1 @ 2 @ 3 @4 @5 @5 @6 @6 @ 7 @7 @8 @8 @9 @9 #0 #0 @5 @6 @ 7 @8 @9 #0...

  • Page 9: Rear Panel

    ANTENNA terminals····························(20) AC outlets ·············································(22) DOCK CONTROL jack ··························(21) AC inlet ·················································(22) XM terminal··········································(20) Remote control unit To operate the AVR-987, use the mode selector switches to select “TAPE” “CD-R/MD” or “CD”, mode. Indicator ····································(62) Tuner system/System buttons·······················(35) Function buttons ····································(23)

  • Page 10: Easy Setup Procedure

    Easy Setup Procedure • This section contains the basic steps necessary to configure the AVR-987 according to your listening room environment and the source equipment and loudspeakers you are using. • To set the sound field manually, see pages 56 ~59.

  • Page 11: Speaker Connections

    Turn clockwise to tighten, then insert the banana plug. 2 Connections • With the AVR-987, up to 10 speakers can be connected for surround playback. • When making connections, also refer to the operating instructions of the other components. Speaker...

  • Page 12: Connecting A Dvd Player And Monitor

    Easy Setup Procedure Connecting a DVD player and monitor • To connect the video output from the DVD player to the AVR-987, you only need to choose one connection type. For more information about the video up conversion function ( •...

  • Page 13: Auto Setup/Room Equalizer (Room Eq) Functions

    Buttons on the main unit and remote control unit Auto Setup/Room Equalizer (Room EQ) Functions • The AVR-987’s auto setup and room equalizer functions use the attached microphone to measure the acoustic properties in the room and automatically make the optimum settings.

  • Page 14: Before Performing The Auto Setup Procedure

    Easy Setup Procedure w Before performing the Auto Setup procedure Turn on your subwoofer. Set the volume to halfway and set the crossover frequency to the maximum or Low pass filter off if your subwoofer can adjust the output volume and the crossover frequency. Some subwoofers have a standby mode.

  • Page 15: Preliminary Measurements

    Easy Setup Procedure y Preliminary measurements This procedure is used to automatically determine the background noise, whether or not speakers are connected, and the polarities of the connected speakers. D D H H Press to select “Start”, then press • The preliminary measurements start. D D H H Press to select “Speaker Detect Check”, then...

  • Page 16: Checking And Storing The Measurement Results

    An error message is displayed if the measurements could not be completed automatically due to the speaker layout, the measuring environment, etc. Please check the following matters, reset the pertinent items, and measure again. Be sure to turn off the AVR-987’s power before checking the speaker connections. Example q The reproduction have not been detected.

  • Page 17: Connecting Other Sources

    Connecting Other Sources Cable indications The hookup diagrams on the subsequent pages assume the use of the following optional connection cables (not supplied). Audio cable Analog terminal (Stereo) (White) (Red) Pin-plug cable Analog terminal (Monaural, for subwoofer) Pin-plug cable Digital terminal (Coaxial) (Orange) Coaxial cable (75 Ω/ohms pin-plug cable) Digital terminal (Optical)

  • Page 18: The Video Conversion Function

    Connecting Other Sources The video conversion function • Even if the formats of the video signals from the various players differ, the different formats can be converted and the signals output to the monitor from a single video output terminal. We recommend outputting with the format offering the highest quality video signals possible.

  • Page 19: The Analog Video To Hdmi Conversion Function

    1080i or 720p; S-Video and composite video – 480i/576i) to the – VIDEO HDMI monitor output terminal. • On the AVR-987, it is possible to convert 480i/576i component VIDEO video, S-Video and composite video input signals to 480p/576p format and output them from the HDMI monitor output VIDEO terminal.

  • Page 20: [To Convert Analog Video Signals To Hdmi Signals]

    • When “OFF” is set at “i/p Convert” under “Setting the HDMI Out Setup”, use a monitor compatible with input resolutions of 480i/576i. • If your monitor is not equipped with an HDMI terminal, connect the AVR-987 to the monitor using the component video, S-Video, or composite video terminals.

  • Page 21: Connecting The External Inputs (Ext. In) Terminals

    • With discs on which special copyright protection measures have been taken, however, the digital signals may not be output from the DVD player. In this case, connect the DVD player’s analog multi-channel output to the AVR-987’s EXT. IN terminals for playback. Also refer to your DVD player’s operating instructions.

  • Page 22: Connecting A Dvd Recorder

    • When recording to a DVD recorder, it is necessary that the type of cable used with the playback source equipment be the same type that is connected to the AVR-987 VCR-1 (to 2) OUTPUT terminal.

  • Page 23: Connecting A Cd Recorder Or Md Recorder

    (High-Definition Multimedia Interface) terminal allows digital transfer of the digital images of DVD- Video and other sources, and the multi-channel sound of DVD-Audio and DVD-Video. • To provide audio output from AVR-987’s audio output terminal, select “Amp” at the “HDMI In Assign”.

  • Page 24: Connecting The Antenna Terminals

    Connecting the XM terminal • AVR-987 is the XM Ready® receiver. You can receive XM Satellite Radio® by connecting to the XM Connect-and-Play • Plug the XM Connect-and-Play antenna into XM connector on the rear panel.

  • Page 25: Connecting The Ipod

    Connecting the iPod When using an iPod, you must Connect the DENON original Control Dock for iPod and the DOCK CONTROL jack on the AVR-987 with a mini-jack and assign the iPod to any AUDIO and/or S-VIDEO terminal(s). The diagram below shows an example of connections for when the iPod is assigned to the VDP terminal.

  • Page 26: Zone2 Speaker Out Connections

    Connecting Other Sources ZONE2 speaker out connections • When the surround back’s power amplifier is assigned to the ZONE2 output channel at “Power Amp Assign” in the “System Setup Menu”, the surround back speaker terminals can be used as the ZONE2 speaker out terminals ( page 54).

  • Page 27: Basic Operation

    Press < ANALOG > to select “ANALOG”, < EXT. IN > to select “EXT. IN”. AUTO (All auto mode): The type of input signal is detected and the AVR-987’s surround mode is switched automatically. Can be selected for sources for which the “Digital In Assign” ( page 47) is made.

  • Page 28: Selecting The Room Equalizer Mode

    Basic Operation <STATUS> PURE DIRECT <DIMMER> ROOM EQ DIRECT/STEREO <PHONES> SURROUND PARAMETER [MUTING] [ON SCREEN] ROOM EQ [SPEAKER] DIRECT/ PURE DIRECT STEREO SURROUND PARAMETER About the button names in this explanation < > : Buttons on the main unit : Buttons on the remote control unit Button name only : Buttons on the main unit and remote control unit Selecting the room equalizer mode...

  • Page 29: Using The Surround Modes

    Basic Operation Using the surround modes Types of surround modes and their features The AVR-987 is equipped with many surround modes. We recommend using the surround modes as described below in order to achieve the maximum effect for the specific signal source.

  • Page 30: Selecting The Dolby Digital And Dts Surround Mode (Only With Digital Input)

    Basic Operation ENTER SURROUND <STATUS> STANDARD PARAMETER INPUT MODE <SURROUND BACK> D H F G D H F G ENTER STANDARD SURROUND PARAMETER D H F G INPUT MODE ENTER About the button names in this explanation < > : Buttons on the main unit : Buttons on the remote control unit Button name only : Buttons on the main unit and remote control unit...

  • Page 31: Selecting The Dolby Pro Logic Ii X (Pro Logic Ii ) Mode

    Basic Operation AFDM (Auto Flag Detect Mode): • ON: When software including Dolby Digital EX or DTS-ES 6.1- channel identification signals is played, 6.1-channel playback is performed automatically. The surround mode is set according to the program source being played. The “SB CH OUT”...

  • Page 32: Selecting The Dts Neo:6 Mode

    • OSD-2: The monitor’s resolution is displayed when an HDMI monitor is connected to the AVR-987. • OSD-4: This is displayed when the auto surround mode is set to “ON” page 23) and the input mode is set to “AUTO”.

  • Page 33: Surround Modes And Parameters

    Basic Operation Surround modes and parameters Channel output Surround Mode SURROUND FRONT SURROUND SUB- D. COMP CENTER BACK WOOFER C C (OFF) PURE DIRECT, DIRECT MULTI CH DIRECT C C (OFF) STEREO EXT. IN MULTI CH IN C C (OFF) WIDE SCREEN C C (OFF) DOLBY PRO LOGIC...
  • Page 34 Basic Operation 2 Differences in surround mode names depending on the input signals Button LINEAR Surround Mode Note ANALOG STANDARD DTS SURROUND DTS ES DSCRT6.1 DTS ES MTRX6.1 DTS SURROUND DTS 96/24 DTS + PL x CINEMA DTS + PL x MUSIC DTS + NEO:6 DTS NEO:6 CINEMA...
  • Page 35 Basic Operation Button LINEAR Surround Mode Note ANALOG DIRECT DIRECT MULTI CH DIRECT M DIRECT + PL x CINEMA M DIRECT + PL x MUSIC PURE DIRECT PURE DIRECT MULTI CH PURE DIRECT M PURE D + PL x CINEMA M PURE D + PL x MUSIC DSP SIMULATION...

  • Page 36: Using The Denon Original Surround Modes

    Using the DENON original surround modes The AVR-987 is equipped with a high performance digital signal processor (DSP) that uses digital signal processing to recreate sound fields artificially. One of 10 surround modes can be selected according to the program source and parameters can be further adjusted to achieve even more realistic sound fields.

  • Page 37: Selecting The Dsp Surround Simulation

    Basic Operation SURROUND SIMULATION PARAMETER ENTER <7CH STEREO> D H F G <SURROUND BACK> D H F G ENTER DSP SIMULATION SURROUND PARAMETER D H F G ENTER About the button names in this explanation < > : Buttons on the main unit : Buttons on the remote control unit Button name only : Buttons on the main unit and remote control unit...

  • Page 38: Setting The Tone Control

    Basic Operation <FUNCTION> CH SEL/ SURROUND ENTER PARAMETER <TONE DEFEAT> D H F G [SHIFT] [CHANNEL] D H F G CH SEL/ENTER [TUNER] [TUNING] [MODE] SURROUND PARAMETER [BAND] [MEMORY] ENTER D H F G About the button names in this explanation <...

  • Page 39: Using The Fader Function

    Basic Operation Using the fader function With this function, the volume of all the front side speakers or all the rear side speakers can be adjusted (attenuated) at once. CH SEL/ENTER Press D D H H CH SEL/ENTER Press to select “Fader”. Press to attenuate the volume of all the front side speakers,...

  • Page 40: Checking The Preset Stations

    Basic Operation XM Satellite Radio AVR-987 is the XM Ready® receiver. You can receive XM Satellite Radio® by connecting to the XM Connect-and-Play (sold separately) and subscribing the XM service. 2 Introducing XM Satellite Radio There’s a world of audio listening pleasure beyond AM and FM.

  • Page 41: Checking The Xm Signal Strength And Radio

    Basic Operation Checking the XM signal strength and Radio ID < FUNCTION > [TUNER] Either turn or press select “TUNER”. [BAND] Press to select “XM”. < STATUS > Press until “SIGNAL” is displayed. • The display changes as shown below according to the receiving condition.

  • Page 42: Advanced Operation

    User mode function The AVR-987 is equipped with a function for storing the selected input source, the auto surround mode and input mode in the memory and selecting these settings when you want to use them.

  • Page 43: Playing The Ipod

    On Screen Display” to “OFF” ( page 52). • With the AVR-987 it is possible to display folder names and file names on the screen like titles. The AVR-987 can display up to 64 characters, consisting of numbers, capital letters and small letters.

  • Page 44: Multi Zone Music Entertainment System

    Multi-zone playback using the ZONE2 output terminals 2 When using the power amplifier as the MAIN ZONE output The AVR-987 is equipped with ZONE2 output terminals for which the volume is fixed output level and composite video output terminals as the ZONE2 output terminals.

  • Page 45: Outputting A Program Source To Amplifier, Etc., In The Zone2 Room (Zone2 Select Mode)

    Advanced Operation FUNCTION <ZONE2/REC SELECT> [CHANNEL] FUNCTION [VOLUME] [MODE1] [MODE2] [ZONE2 ON] [ZONE1 (MAIN) [ZONE2 OFF] ON/OFF] FUNCTION About the button names in this explanation < > : Buttons on the main unit : Buttons on the remote control unit Button name only : Buttons on the main unit and remote control unit Outputting a program source to amplifier,...

  • Page 46: Recording (Audio And/Or Video)

    About the memory functions 2 Last function memory The various settings set when the AVR-987’s power is switched to standby are stored in the memory. When the power is turned back on, the settings made when the power was switched to standby are recalled.

  • Page 47: Advanced Setup - Part 1

    Advanced Setup – Part 1 System setup items and default values 1. Auto Setup/Room EQ 2. Speaker Setup Items This unit performs an analysis of the speaker system and 1 Auto Setup measures the acoustic characteristics of your room to permit an appropriate automatic setting.
  • Page 48 EXT. IN subwoofer terminal. Level It is possible to assign the DENON original Dock’s audio iPod Assign and/or video signals to any input terminals on the AVR-987 and play them. Input The playback level is corrected individually for the different Function Lev.
  • Page 49 “Front B”) for bi-amp playback, ZONE2. Volume This sets the volume level of output. Control Use the DC12V output of the AVR-987’s two Trigger Out trigger out jacks in association with the various input sources and surround modes. This sets whether or not to lock the system setup settings Setup Lock so that they cannot be changed.

  • Page 50: Navigating Through The System Setup Menu

    Advanced Setup – Part 1 About the display In addition to the easily understandable on screen display, the AVR-987 is also equipped with displays for checking the settings. Use this when making settings and operating. Below are some examples of typical displays.

  • Page 51: Audio Input Setup

    Press Advanced Setup – Part 1 Setting the iPod Assignment It is possible to assign the DENON original Dock’s audio and video signals to any input terminals on the AVR-987 and play them. D D H H Press to select “iPod Assign”, then press...

  • Page 52: Setting The Input Function Level

    Advanced Setup – Part 1 Setting the Input Function Level The playback level is corrected individually for the different input sources. D D H H Press to select “Input Function Lev.”, then ENTER press D D H H Press to select the input source, then press to set.

  • Page 53: Video Setup

    “Audio”, then press select where to output the audio signals. AMP: Output the speakers connected to the AVR-987. Output the TV connected to the AVR-987. If no audio signal is included in the input signal: D D H H...

  • Page 54: Setting The Component In Assignment

    • If a monitor is connected with an HDMI cable but the monitor is not compatible with HDMI audio signal playback, only the video signals are output to the monitor from the AVR-987. • Audio signals input from the analog and digital terminals are not output to the TV.

  • Page 55: Setting The Hdmi Out Setup

    Advanced Setup – Part 1 Setting the HDMI Out Setup Set whether or not to up-convert from analog video signals to HDMI. When this function is used, the format of the signal output from the HDMI terminal can be set. D D H H Press to select “HDMI Out Setup”, then...

  • Page 56: Setting The On Screen Display (Osd)

    Advanced Setup – Part 1 Setting the On Screen Display (OSD) Set whether or not to display the on screen display for indications other than the menu screens. D D H H Press to select “On Screen Display”, then ENTER press D D H H Press...

  • Page 57: Setting The Dolby Digital Downmix Option Setup

    Advanced Setup – Part 1 Setting the Dolby Digital Downmix Option Setup Turn the audio compression on or off when down-mixing Dolby Digital signals. D D H H Press to select “Dolby Digital Setup”, then ENTER press F F G G Press to set.

  • Page 58: Option Setup

    Front Bi-Amp connections Dynamic sound with a range wider than that of full range systems can be played by connecting bi-amp compatible speakers to the AVR-987. Be sure to consult the owner’s manual of your bi-amp-capable speakers for further information before proceeding.

  • Page 59: Setting The Volume Control

    –80 to +18 dB (and ZONE2 volume level within the range of –70 to +18 dB). • LAST The volume set when the AVR-987 was last used is stored in the memory and set when the power is turned on. • – – – (Mute) The volume is always muted when the power is turned on.

  • Page 60: Setting The Setup Lock

    Advanced Setup – Part 1 Setting the Setup Lock This sets whether or not to lock the system setup settings so that they cannot be changed. D D H H Press to select “Setup Lock”, then press ENTER ENTER Press to select “ON”, then press •...

  • Page 61: Setting The Subwoofer Setup

    Advanced Setup – Part 2 Center Speaker Front Speaker Subwoofer Surround Speaker Surround back Speaker • Select “Large” or “Small” not according to the actual size of the speaker but according to the speaker’s capacity for playing low frequency (bass sound below the frequency set for the Crossover Frequency) signals.

  • Page 62: Setting The Channel Level

    Advanced Setup – Part 2 D D H H Press to select the speaker, then press to set. ENTER Press ... L1 ... L2 ... L3 ... L4 ... L5 ... L6 ... L7 ... L8 • Press D D to select “Step”, then press F F G G to change the amount of variation if so desired.

  • Page 63: Setting The Crossover Frequency

    Advanced Setup – Part 2 2 Adjusting the test tone using the remote control unit Adjustment of the test tones using the remote control unit is only possible in the “Auto” mode and only valid in the STANDARD (Dolby Surround and DTS Surround) mode. The adjusted levels are automatically stored for the different surround modes.

  • Page 64: Others Setup

    Advanced Setup – Part 2 Others Setup Setting the Room Equalizer Setup Set the Room Equalizer setting with “All” or “Assign” for each surround mode. D D H H Press to select “Room EQ Setup”, then press ENTER F F G G ENTER Press to set, then press...

  • Page 65: Setting The Mic Input Select

    Advanced Setup – Part 2 Setting the MIC Input Select Sets whether the setup microphone is connected to the pin jack (V. AUX L channel) or mini jack (SETUP MIC). D D H H Press to select “Mic Input Select”, then press ENTER F F G G Press...

  • Page 66: Operating The Remote Control Unit

    Setting the preset memory function • DENON and other makes of components can be operated by setting the preset memory. • This remote control unit can be used to operate components of...

  • Page 67: Operating A Component Stored In The Preset Memory

    Operating the remote control unit ON/SOURCE SHIFT CHANNEL+, – A/B, SKIP+ VCR CHANNEL + – ENTER SETUP AUDIO D H F G DISPLAY RETURN MENU MODE1 MODE2 0 ~ 9, +10 TV/VCR SETUP TUNING+ –, MODE, BAND, MEMORY, AUDIO TV VOL+ –, MENU, PICTURE, ADJUST, SUBTITLE RETURN...
  • Page 68 – – RETURN D D H H F F G G – – – – ENTER Default setting DENON DENON CD-R (preset code) (111) (111) Special remarks Tape deck DVD player Video disc player Video deck VIDEO TAPE DVD / VDP –...

  • Page 69: Setting The Punch Through Function

    Operating the remote control unit [MODE1] [MODE2] [NUMBER] [MEMORY] [INPUT] Setting the punch through function “Punch Through” is a function allowing you to operate the PLAY, STOP, MANUAL SEARCH and AUTO SEARCH on CD, TAPE, CD- R/MD, DVD/VDP or VCR components when in the DBS/CABLE or TV mode.

  • Page 70: Additional Information

    Additional Information About the speakers Surround back speakers Sound position directly to the rear can be achieved easily by adding a surround back speaker to a 5.1-channel system. In addition, the acoustic image extending between the sides and the rear is narrowed, thus greatly improving the expression of the surround signals for sounds moving from the sides to the back and from the front to the point directly behind the listening position.
  • Page 71 Additional Information Surround The AVR-987 is equipped with a digital signal processing circuit that lets you play program sources in the surround mode to achieve the same sense of presence as in a movie theater. Dolby Surround [1] Dolby Digital Dolby Digital is the multi-channel digital signal format developed by Dolby Laboratories.
  • Page 72 Additional Information Audyssey MultEQ XT Audyssey MultEQ XT is a technology designed to provide the optimum listening environment for multiple listeners within the listening area. Test data collected from multiple listening points is analyzed comprehensively and equalization that improves the sound quality for the entire listening area is performed.

  • Page 73: Troubleshooting

    No DTS sound is • DVD player is not DTS-compatible. produced. • AVR-987’s input setting is set to analog • Copying between a source such as DVD and a VCR is not usually Copying from DVD to possible, as DVDs are often VCR is not possible.

  • Page 74: Specifications

    Troubleshooting Symptom Cause “NO SIGNAL” • The signal cannot be received. displayed in the XM mode. • The selected channel is not “OFF AIR” is displayed currently broadcasting. in the XM mode. Receiving only • The XM Tuner is not activated. channels 0 and 1.
  • Page 75 2 List of preset codes Denon 014, *[111] Aiwa Hitachi 006, 011 Konka 012, 013 Magnavox Mitsubishi Panasonic Philips 005, 015, 016, 017 Pioneer 003, 008 Sanyo Sony 002, 019, 020 Toshiba 001, 021, 022 Zenith Denon 028, 029, 112...
  • Page 76 Optonica Panasonic 024, 049, 064, 066, 067, 068, 069, 107 Perdio Pentax 009, 013, 023, 058, 090 Philco 015, 016, 049 Philips 015, 021, 042, 049, 105 Pilot Pioneer 005, 013, 029, 036, 037, 038, 045, 085 Portland 025, 055, 090 Proscan 063, 080 Pulsar...
  • Page 77 Futuretech 020, 036, 037, 040, 044, 058, 066, 088, 119, 120, 125, 147 Goldstar 000, 015, 029, 031, 039, 048, 051, 056, 057, 067, 068, 069, 116 Grundy Hitachi 029, 031, 051, 052, 070, 111, 112, 113, 124, *[134] Hitachi Pay TV Infinity 017, 071 Janeil...
  • Page 78 Sierra III Sony 049, 067 STS1 STS2 STS3 SRS4 Technisat 077, 078, 079, 081, 082 Toshiba 047, 050 Uniden Denon *[111] Aiwa 001, 035, 043 Burmster Carver 003, 035 PRESET CODE Emerson 004, 005, 006, 007 Fisher 003, 008, 009, 010...
  • Page 79 Magnavox Marantz Onkyo 016, 018 Optimus 007, 008 Panasonic Philips Pioneer 007, 008, 009 Sony 013, 014, 015 Technics Victor Wards Yamaha 010, 011 *[ ] : Preset codes set upon shipment from the factory. DVD preset codes DVD-555 DVD-800 DVD-755 DVD-1600 Model No.
  • Page 80 TOKYO, JAPAN www.denon.com Denon Brand Company, D&M Holdings Inc. Printed in Japan 00D 511 4529 003...
