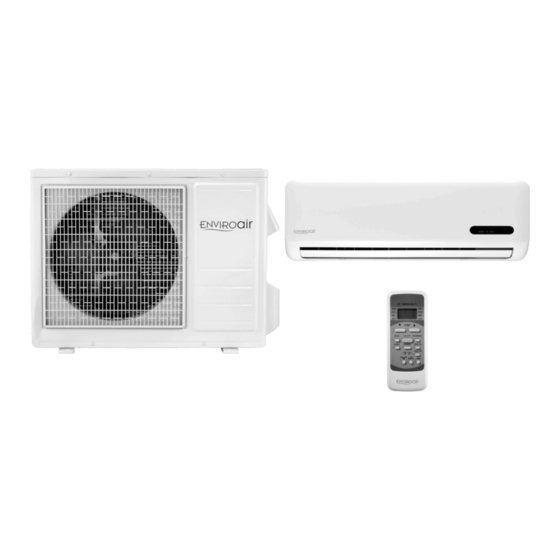

FSR Series
Single Zone 15SEER High-Wall
Ductless Inverter Split Systems
Installation, Operation &
Manintenance Manual
Air Handler (Indoor) Models: FWCA
Condenser (Outdoor) Models: FCA
ECR International, Inc.
2201 Dwyer Avenue • Utica, New York 13501
PN 240009906, Rev C [01/13/2014]
An ISO 9001-2008 Certified Company
Phone: 800.325.5279 • Web: enviromaster.com
Advertisement
Table of Contents
Related Manuals for EMI enviroair 24000 btu
Summary of Contents for EMI enviroair 24000 btu
- Page 1 Presents FSR Series Single Zone 15SEER High-Wall Ductless Inverter Split Systems Installation, Operation & Manintenance Manual Air Handler (Indoor) Models: FWCA Condenser (Outdoor) Models: FCA ECR International, Inc. 2201 Dwyer Avenue • Utica, New York 13501 PN 240009906, Rev C [01/13/2014] An ISO 9001-2008 Certified Company Phone: 800.325.5279 •...
-
Page 2: Table Of Contents
CONTENTS ......................INSTALLATION PRECAUTIONS ......................SAFETY PRECAUTIONS ......................SELECT THE BEST LOCATION INDOOR UNIT ......................INSTALLATION PLATE MOUNTING ......................DRILL A HOLE IN THE WALL ......................CONNECT THE CABLE TO THE INDOOR UNIT ......................CONNECTIVE PIPE AND DRAINAGE INSTALLATION OUTDOOR UNIT ...................... -
Page 3: Installation Precautions
INSTALLATION MANUAL FOR ROOM AIR CONDITIONER (Split Wall-Mounted Type) INSTALLATION PRECAUTIONS Please read this installation manual carefully before operating the unit to ensure correct installation. If the power cord is damaged, replacement work shall be performed by authorised personnel only. Installation work must be performed in accordance with the national wiring standards by authorised personnel only. -
Page 4: Select The Best Location
SELECT THE BEST LOCATION Indoor unit There should not be any heat source or stream near the unit. There should not be any obstacles blocking the air circulation. A place where air circulation in the room is good. A place where drainage can be easily done. A place where noise prevention is taken into consideration. -
Page 5: Indoor Unit
INDOOR UNIT INSTALLATION PLATE MOUNTING NOTE: The mounting wall is strong and solid enough to prevent it from the vibration. Indoor unit outline 150mm or more to ceiling Installation Plate Mounting 120mm or more to wall 1. Fit the installation plate horizontally 120mm or more to wall on structural parts of the wall with... -
Page 6: Connect The Cable To The Indoor Unit
CONNECT THE CABLE TO THE INDOOR UNIT Electrical work Electric safety regulations for the initial Installation 1. If there is serious safety problem about the power supply, the technicians should refuse to install the air conditioner and explain to the client until the problem is solved. 2. - Page 7 Connective pipe installation 1. For the left-hand and right-hand piping, remove the pipe cover from the side panel. 2. For the right back and left back piping, install the piping as shown. NOTE: One side drainage structure is standard. Both sides drainage structure is optional and can only be customized from factory.For both sides drainage structure, it can be choosen for right, left or both sides...
-
Page 8: Outdoor Unit
OUTDOOR UNIT OUTDOOR INSALLATION PRECAUTION Install the outdoor unit on a rigid base to prevent increasing noise level and vibration. Determine the air outlet direction where the discharged air is not blocked. In the case that the installation place is exposed to strong wind such as a seaside, make sure the fan operating properly by putting the unit lengthwise along the wall or using a dust or shield plates. -
Page 9: Connect The Cable To The Outdoor Unit
CONNECT THE CABLE TO THE OUTDOOR UNIT 1. Remove the electrical control board cover from the outdoor unit by loosening the screw. 2. Connect the connective cables to the terminals as identified with their respective matched numbers on the terminal block of indoor and outdoor units. 3. - Page 10 2. When using the Vacuum Pump 1. Completely tighten the flare nuts, A, B, C, D, connect the manifold valve charge hose to a charge port of the Manifold valve packed valve on the gas pipe side. Compound meter Pressure gauge 2.
-
Page 11: Room Air Conditioner
Before using your air conditioner, please read Before using your air conditioner, please read Before using your air conditioner, please read Before using your air conditioner, please read Before using your air conditioner, please read Before using your air conditioner, please read Before using your air conditioner, please read Before using your air conditioner, please read Before using your air conditioner, please read... -
Page 12: Sociable Remark
SOCIABLE REMARK CAUTION Contact the authorized installer for installation of this unit. Contact an authorized service technician for repair or maintenance of this unit. This appliance is not intended for use by persons(including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by persons responsible for their safety. - Page 13 SAFETY PRECAUTIONS To prevent injury to the user or other people and property damage, the following instructions must be followed. Incorrect operation due to ignoring of instructions may cause harm or damage. The seriousness is classified by the following indications. This symbol indicates the possibility of death or serious injury.
- Page 14 SAFETY PRECAUTIONS CAUTION Ventilate the room well When the air filter is to be Do not put objects like thin when used together removed, do not touch the rods into the panel of blower with a stove, etc. metal parts of the unit. and suction side.
-
Page 15: Operating Instructions
OPERATING INSTRUCTIONS Indoor unit 1. Front panel 2. Air inlet 3. Air filter 4. Air outlet 5. Horizontal air flow grille 6. Vertical air flow louver(inside) 7. Display panel NOTE: The actual shape of the indoor unit you purchased may be slight different on front panel and display window. -
Page 16: Special Functions
OPERATING INSTRUCTIONS Special functions Refrigerant Leakage Detection With this new technology, the dipsplay area will appear EC and the indication lamps continue flashing when the outdoor unit detects refrigerant leakage. Louver Angle Memory Function(optional): Within the scope of safety angle, it will memorize the open angle of horizontal louver. If it exceeds, it will memorize the boundry of safety angle. -
Page 17: Operating Temperature
OPERATING INSTRUCTIONS NOTE: This manual does not include Remote Controller Operations, see the <<Remote Controller Instruction>> packed with the unit for details. Operating temperature Mode Cooling operation Heating operation Drying operation Temperature Room temperature Outdoor temperature For the models with low temperature cooling system NOTE: 1. -
Page 18: Airflow Direction Control
OPERATING INSTRUCTIONS Airflow direction control Adjust the air flow direction properly otherwise it might cause discomfort or cause uneven room temperatures. Adjust the horizontal louver using the remote controller. Adjust the vertical louver manually. To set the vertical air flow(Up--Down) direction Range Perform this function while the unit is in operation. -
Page 19: How The Air Conditioner Works
OPERATING INSTRUCTIONS How the air conditioner works AUTO operation When you set the air conditioner in AUTO mode, it will SLEEP operation automatically select cooling, heating(cooling/heating 7 hours timer off models only), or fan only operation depending on set temperature and the room temperature. The air conditioner will control room temperature Temperature automatically to the temperature point you set. -
Page 20: Care And Maintenance
CARE AND MAINTENANCE Care and Maintenance Cleaning the Grille, Case and Remote Controller Turn the system off before cleaning. To clean, wipe with a soft, dry cloth. Do not use bleach or abrasives. NOTE: Power supply must be disconnectd before cleaning the indoor unit. - Page 21 CARE AND MAINTENANCE 4. Remove the Air Freshening Filter from its supporting frame (on some models). Clean the air freshening filter at least once a month, and replace it every 4-5 months. Clean it with vacuum cleaner, then dry it in cool place.
-
Page 22: Operation Tips
OPERATION TIPS The following events may occur during normal operation. 1. Protection of the air conditioner. Compressor protection The compressor can't restart for 3 minutes after it stops. Anti-cold air (Cooling and heating models only) The unit is designed not to blow cold air on HEAT mode, when the indoor heat exchanger is in one of the following three situations and the set temperature has not been reached. - Page 23 OPERATION TIPS 8. Dripping water may generate on the surface of the indoor unit when cooling in a high relatively humidity (relative humidity higher than 80%). Adjust the horizontal louver to the maximum air outlet position and select HIGH fan speed. 9.
-
Page 24: Troubleshooting Tips
TROUBLESHOOTING TIPS Troubleshooting Tips If one of the following faults occurs, stop the air conditioner immediately, disconnect the power and then connect it in again. If the problem still exists, disconnect the power and contact the nearest customer service center. OPERATION indicator or other indicators continue flashing.
