Electro - Acoustic parameters
SX 250D
SX 300D
D
210
253
mm
Xmax
14
14
mm
Re*
4,0
4,0
ohm
Fs
51
46
Hz
Le
-
-
mH@1kHz
Le
-
-
mH@10kHz
Vas
11
20
l
Mms
147
202
g
Cms
0,06
0,06
mm/N
BL
20,8
21,6
T-m
Qts
0,42
0,48
Qes
0,44
0,51
Qms
8,00
8,20
Spl
90,5
91,0
dB
* Bobine in serie / Coils in series
62018 Potenza Picena (MC) Italy - Tel. +39 0733 870870 - Fax +39 0733 870880 - www.elettromedia.it
SX 380D
320
14
4,0
43
-
-
45
274
0,05
20,7
0,67
0,70
9,30
92,0
ADVANCED
MANUAL

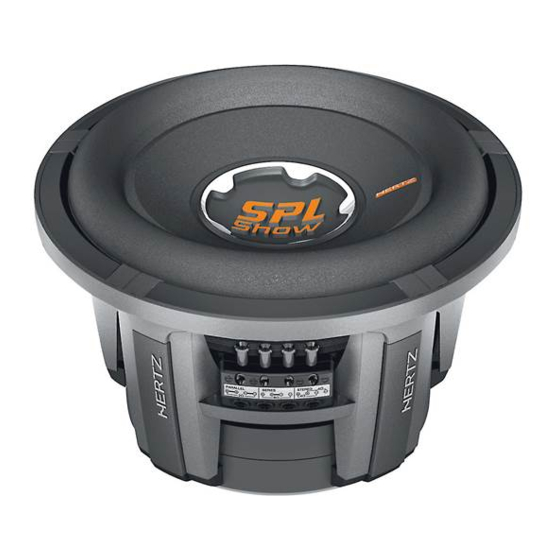

SX Subwoofer
www.hertzaudiovideo.com
Advertisement
Related Manuals for Hertz SX 380D
Summarization of Contents
Connections and Wiring
Voice Coil Connection Patterns
Illustrates voice coil connection patterns for stereo, parallel, and series configurations.
Stereo Connection Example
Demonstrates the wiring diagram for a stereo connection setup.
Multiple Parallel Connections
Subwoofer Series / Parallel Examples
Shows connection examples for multiple subwoofers wired in series and parallel.
Multiple Series Connections
Subwoofer Parallel / Series Examples
Provides examples for multiple subwoofers wired in parallel and series configurations.
Projects and Applications
Enclosure Design Warnings
Important considerations for designing subwoofer enclosures, including volume and multiple speaker setups.
