OWNER'S MANUAL
Subwoofer

Advertisement

loading
Need help?

Need help?

Do you have a question about the UNO S 300 S4 and is the answer not in the manual?

Questions and answers

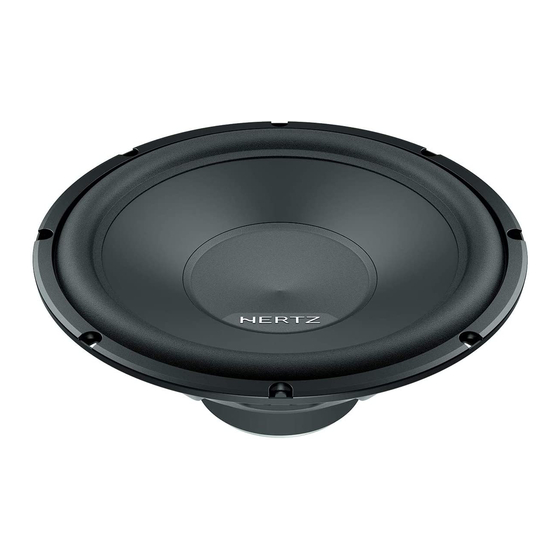

Summary of Contents for Hertz UNO S 300 S4

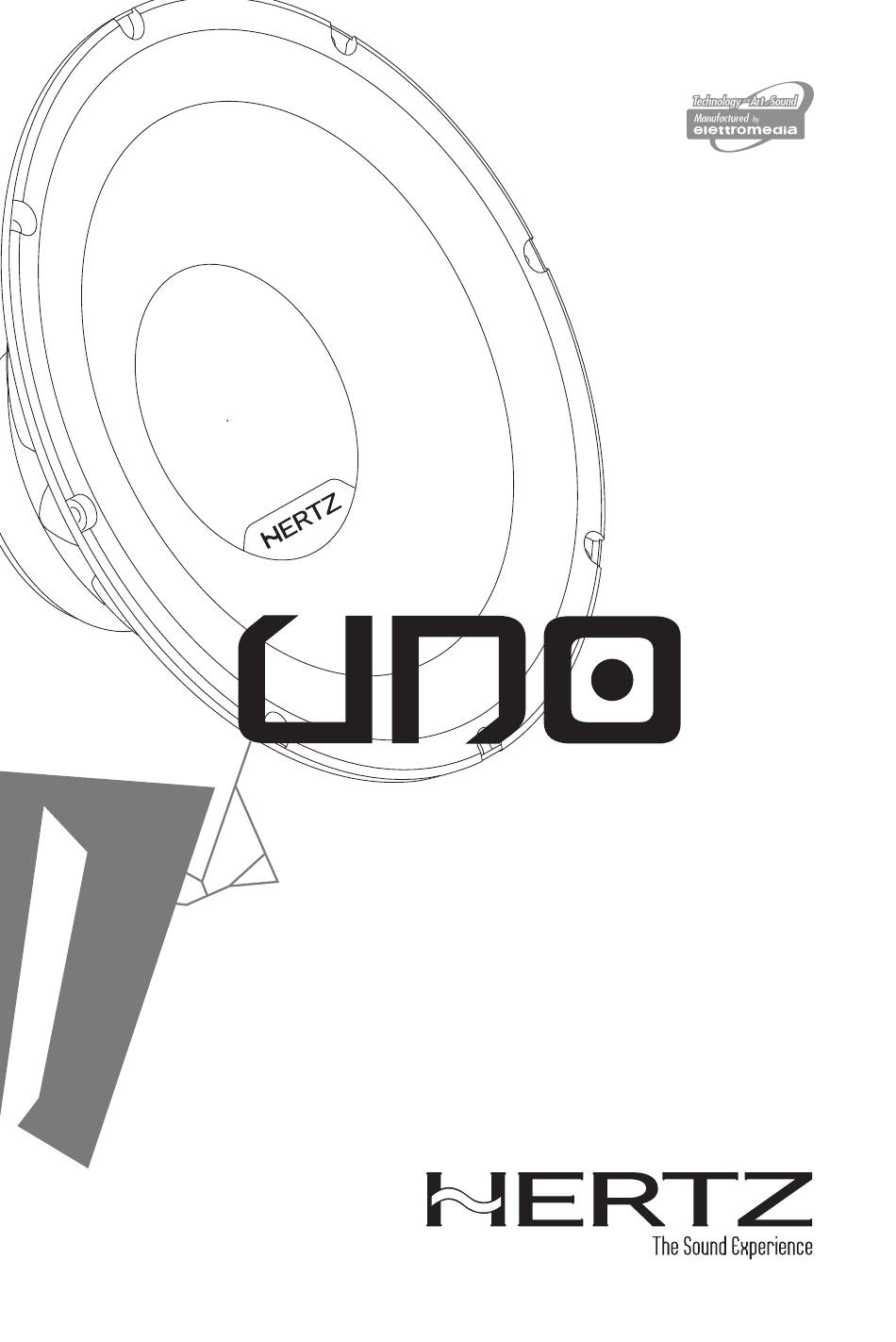

  • Page 1 www.hertzaudiovideo.eu OWNER’S MANUAL Subwoofer...
  • Page 2 14. Use top quality cables, connectors and accessories such as found in the Connection catalogue. 15. Warranty certificate: For more information visit the Hertz website. Information on electrical and electronic equipment waste (for those European countries which organize the separate collection of waste). Products which are marked with a wheeled bin with an X through it can not be disposed of together with ordinary domestic waste. These electrical and electronic products must be recycled in proper facilities, capable of managing the...
  • Page 3 Owner’s Manual Съдържание на опаковката / Sadržaj pakiranja / Obsah balení / Pakket inhoud / Packaging 内装物 / contents / Pakendi sisu / Pakkauksen sisältö / Contenu de l’emballage / Verpackungsinhalt / Περιεχόμενα συσκευασίας / csomag tartalma / Isi kemasan / Contenuto dell’imballo / Pakuotės turinys / パッケージ内容 /...
  • Page 4 / 安装 / Montaža / Montáž / Montage / Mounting / Paigaldamine / Kiinnitys / Montage / Montage / Монтаж Τοποθέτηση / Beszerelés / Pemasangan / Montaggio / マウント / 마운트 / Montavimas / Montaż / Montagem / Монтаж / Montáž / Namestitev / Montaje / Montering / การใส่...
  • Page 5 Owner’s Manual Електро-акустични параметри / 电声参数 / Elektro-akustički parametri / Elektroakustické parametry Elektro-akoestische parameters / Electro-Acoustic parameters / Elektroakustilised parameetrid / Sähköakustiset parametrit Elektro-akustische Parameter / Paramètres électro-acoustiques / Ηλεκτρο-ακουστικές παράμετροι / Elektro-akusztikus paraméterek / Parametri elettroacustici / 電気音響パラメータ / 전자 어쿠스틱 파라미터 / Parameter elektro-akustik / Elektriniai Parametry elektro - akustyczne /...
  • Page 6: Enclosure Design

    ENCLOSURE DESIGN SEALED REFLEX BOX BOX ASSEMBLY ASSEMBLY SUGGESTED PORT POSITION/DIMENSION P=10÷20 Fb Qtc External dimensions Mounting Wood Lp-Port Sound Dp-Tube Hole - M Thickness length absorbing inner TECH Material diameter DATA (cu. in.) (in.) (in.) (in.) (in.) (in.) (in.) (in.) S 300 S4 0,89...
  • Page 7 Owner’s Manual REFLEX SOUND ABSORBING MATERIAL 1 layer of sound absorbing material on each side except the one where the speaker is fixed to. Pic. 1 FILTER Suggested Lo-pass filter cut-off Lo-pass S 300 S4 90 Hz / 12 dB Oct. Sealed S 300 S4 90 Hz / 12 dB Oct.
  • Page 8 PART OF ELETTROMEDIA Strada Regina Km 3,500 - Marignano 62018 Potenza Picena (MC) Italy T +39 0733 870 870 - F +39 0733 870 880 www.elettromedia.it...
  • Page 9 www.hertzaudiovideo.com www.hertzaudiovideo.com S 300 S4 TECHNICAL SPECIFICATIONS SUBWOOFER Component Subwoofer 1000 W Size mm (in.) 300 (12) Voice Coil Ø 38 (1.5) W peak 1000 Power Handling W continuos Impedance Ω Magnet size 115 x 47,5 x 25 D x d x h (in.) (4.53 x 1.87 x 0.98) Very high efficiency, superior power handling;...
