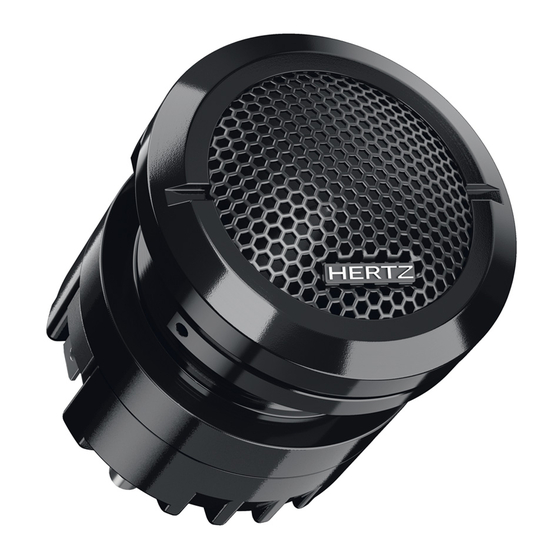

Hertz SPL Show ST 25K Neo Owner's Manual

Hertz SPL Show ST 25K Neo Owner's Manual

Hide thumbs Also See for SPL Show ST 25K Neo:

Advertisement

Quick Links

hertzaudiovideo.com
OWNER'S MANUAL
Comp

Advertisement

loading
Need help?

Need help?

Do you have a question about the SPL Show ST 25K Neo and is the answer not in the manual?

Questions and answers

Summary of Contents for Hertz SPL Show ST 25K Neo

  • Page 1 hertzaudiovideo.com OWNER’S MANUAL Comp...
  • Page 2 14. Do not run the wires outside of the vehicle. 15. Use top quality cables, connectors and accessories such as found in the Connection catalogue. 16. Warranty certificate: For more information visit the Hertz website. SAFE SOUND USE COMMON SENSE AND PRACTICE SAFE SOUND. PLEASE REMEMBER THAT LONG EXPOSURE TO EXCESSIVELY HIGH SOUND PRESSURE LEVELS MAY DAMAGE YOUR HEARING.
  • Page 3 Hertz Warranty The Hertz products are warranted, under normal functioning conditions, for the period of time as set by the laws in force, against defects concerning materials or their manufacturing. The warranty is valid from the date of purchase, certified by receipt.
  • Page 4 Owner’s Manual 包裝內容 / Съдържание на опаковката / 内装物 / Sadržaj pakiranja / Pakkens indhold / Obsah balení / Pakket inhoud Packaging contents / Pakendi sisu / Pakkauksen sisältö / Contenu de Verpackungsinhalt / Περιεχόμενα συσκευασίας / l’emballage / Isi kemasan / A csomag tartalma / Contenuto dell’imballo / パッケー...
  • Page 5 ST 25K Neo / ST 25A Neo 尺寸 / Veličina / Størrelse Размер / 规格 / Velikost / Size / Koko / Größe / Afmetingen / Suurus / Dimensions / Ukuran / Méretek / Ingombro / サイズ Διαστάσεις Izmērs / Størrelse / Wielkość...
  • Page 6 Owner’s Manual Montaža / Montering / 安裝 / 安装 / Монтаж / Montáž / Mounting / Kiinnitys / Montage Montage / Paigaldamine / Montage / Pemasangan / Τοποθέτηση / / Beszerelés / Montaggio / Uzstādīšana / Montering / マウント / 마운트 / Montavimas / Montaż...
  • Page 7 ST 25K Neo STG 25.2 STG 25. Rubber gasket Ring 1 L-key for tightening (not included)
  • Page 8 Owner’s Manual Предложени дължина и ъгъл / 建議長 Preporučena duljina i kut nagiba / 度和角度 / 建议长度及角度 / Foreslået længde og vinkel / Požadovaná délka a úhel / Voorgestelde Suggested Length and Angle / lengte en hoek / Soovitatav pikkus ja Suositeltu pituus ja kulma / nurk / Longueur et angle recommandés...
  • Page 9 ST 25K Neo ST 25A Neo REPLACEMENT OF VOICE COIL GROUP 1. Disassembly WARNING Carefully separate bottom from top Broken Remove broken voice coil group Remove srews. Replace with new voice coil group...
  • Page 10 Owner’s Manual 2. Re-assembly WARNING Place back in position top cover on bottom. Pay attention to again screw movies. WARNING Carefully insert = 6.3mm new voice coil terminal group into bottom Replace srews.
  • Page 11 尺寸 / Veličina / Størrelse Размер / 规格 / Velikost / Size / Koko / Größe / Afmetingen / Suurus / Dimensions / Ukuran / Méretek / Ingombro / サイズ Διαστάσεις Izmērs / Størrelse / Wielkość / 크기 / Dydis / Dimensão Dimensiuni / Rozmery /...
  • Page 12 Owner’s Manual Montaža / Montering / Монтаж / 安裝 / 安装 / Montáž / Mounting / Kiinnitys / Montage Montage / Paigaldamine / Montage / Pemasangan / Τοποθέτηση / / Beszerelés / Montaggio / Uzstādīšana / Montering / マウント / 마운트 / Montavimas / Montaż...
  • Page 13 SX 690 Neo 237,5 163 8,5 mm SX 690 Neo 9.35 6.42 8.86 6.06 3.66 3.35 0.22 0.33 in.
  • Page 14 Owner’s Manual Spajanje / Свързвания / 連接 / 连接 / Připojení / Forbindelser / Connections / Kytkennät Verbindingen / Ühendused / Verbindungen / Connexions / Συνδέσεις / Csatlakozók Sambungan / Connessioni / 接続 / 연결 /Savienojumi / Jungtys / Tilkoblinger / Połączenia / Conectarea / Ligações /...
  • Page 15 Свързване на системата / 連接系統 / 连接系统 Priključivanje sustava / Připojení systému / Forbinding af systemer Aansluiten van de systemen / Connecting the systems / Süsteemi ühendamine / Järjestelmän kytkeminen / Branchement du système / System anschließen / Σύνδεση του συστήματος / A rendszer csatlakoztatása / Menghubungkan sistem / Collegamenti...
  • Page 16 Owner’s Manual ST 25K Neo SV 165 Neo SV 200 Neo ST 25K Neo STX 25.2 SV 165 Neo SV 200 Neo SV 165 Neo SV 200 Neo Input from AMP Best SPL performance filtering: SV 165 Neo: 400 W Peak ( Hi-Pass @ 200 Hz - 12 dB Oct.) SV 200 Neo: 500 W Peak ( Hi-Pass @ 150 Hz - 12 dB Oct.) SV 165 Neo...
  • Page 17 SX 165 Neo SX 690 Neo ACTIVE FILTER SX 165 Neo ACTIVE FILTER SX 690 Neo Best SPL performance filtering SX 165 Neo: 200 W Peak (Hi-Pass @ 200 Hz - 12 dB Oct.) SX 690 Neo: 260 W Peak (Hi-Pass @ 60 Hz - 12 dB Oct.) SX 690 Neo SX 165 Neo SX 165Neo...
  • Page 18 Owner’s Manual 電聲參數 Електро-акустични параметри / Elektro-akustički parametri / Elektroakustické parametry / 电声参数 / Electro-Acoustic parametre / Elektro-akoestische parameters / Electro- Acoustic parameters / Elektroakustilised parameetrid / Sähköakustiset parametrit / Paramètres électro-acoustiques / Elektro-akustische Parameter / Ηλεκτρο-ακουστικές παράμετροι / Elektro-akusztikus paraméterek Parameter elektro-akustik / Parametri elettroacustici /...
  • Page 19 /技術規格/ 技术规格 / Технически спецификации Tehnički podaci / Technické údaje / Tekniske specifikationer / Technische specificaties / Technical specifications / Tehnilised andmed / Tekniset tiedot / Caractéristiques techniques / Technische daten / Τεχνικά Műszaki adatok / Spesifikasi teknis χαρακτηριστικά / Specifiche tecniche / Tehniskā...
  • Page 20 Owner’s Manual Magnet size Voice Magnet Cone Dome Weight of coil ∅ component mm (in.) mm (in.) Kg (lb.) 25 x 7 (1.0 x 0.27) 25,4 (1) Neodymium Aluminium Dome 0,39 (0.86) Ultra Light pressed 110 x 45 x 20 Hight density 38 (1.5) 1,85 (4)
  • Page 21 PART OF ELETTROMEDIA Strada Regina Km 3,500 - Marignano 62018 Potenza Picena (MC) Italy T +39 0733 870 870 - F +39 0733 870 880 www.elettromedia.it...
