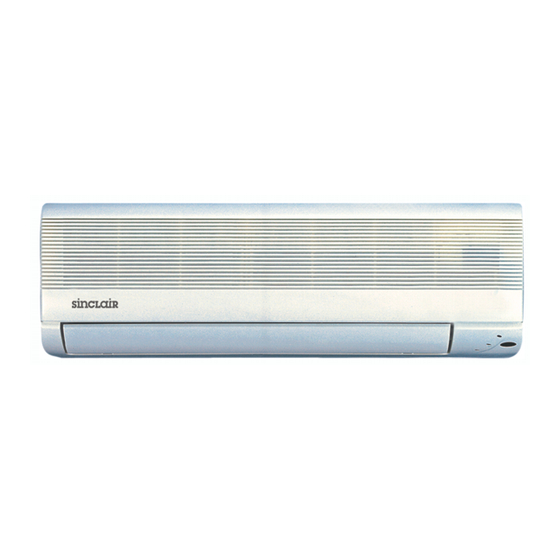

- Page 1 A I R C O N D I T I O N E R OWNER‘S MANUAL ASH-09CS ASH-12CS SLIM SERIE Before operating the unit please carefully read this manual. SPLIT AIR CONDITIONER WALL MOUNTED MODEL SINCLAIR...
-
Page 2: The Instructions Before Use
The instructions before use WARNING The power plug must be in- Don’t pull out the power plug Never splice the power cord or serted tightly. during operation. use an extended cord. Otherwise, it can cause an elec- It can cause an electric shock or It can cause overheating or fire. - Page 3 Don’t use any other fuse ex- Be sure to pull out the power When cleaning, it is necessary cluding the fuse of correct plug as the Air Conditioner will to stop driving and turn off the capacity. not be used for a longtime. power suply.
-
Page 4: Name And Function Of Each Part
Name and function of each part Indoor unit Outdoor unit ６６１２２４５２．ｐ６５ 03-7-15, 17:26... -
Page 5: Name And Function-Remote Control
Remote control operation procedure Name and Function-Remote control Note: Be sure that there are no obstructions between receiver and remote controller. The remote control signal can be received at the distance of up to about 10m. Don’t drop or throw the remote control. Don’t let any liquid in the remote controller and put the remote controller di- rectly under the sunlight or any place where is very hot. -
Page 6: Name And Function-Remote Control(Remove The Cover)
Name and Function-Remote control. (Remove the cover) Note: This type of remote controller is a kind of new current controller. some buttons of the controller which are not available to this Air condi- tioner will not be described below. Operate on unmentioned buttons would not impact on the normal use. Liquid crystal displayer. -
Page 7: Cool Mode Operation Procedure
COOL mode operation procedure According to difference between room temp. and set temp., microcomputer can control cooling on or not. If room temp. is higher than set temp., compressor runs at COOL mode. If room temp. is lower than set temp., compressor stops and only indoor fan motor runs. SET TEMP. -
Page 8: Heat Mode Operation Procedure
HEAT mode operation procedure If room temp. is lower than set temp., compressor runs at HEAT mode; If room temp. is higher than set temp., compressor and outdoor fan motor stop, only indoor fan motor runs, louver motor makes the louvers horizontal. SET TEMP. -
Page 9: Dry Mode Operation Procedure
DRY mode operation procedure If room temp. is lower than set temp., compressor ,outdoor and indoor fan motor stop. If room temp. is between of set temp., Air conditioner is drying.If room temp. is higher than set temp., it’s at COOL mode. -
Page 10: Auto Mode Operation Procedure
AUTO mode operation procedure Under Auto mode operation, standard SET TEMP. is 25 for COOL mode and 20 for HEAT mode. 1.Plug in,Press 1/0 button, then air conditioner is turned on. 2.According to room temp.,micro- computer can automatically set operation mode,so as for best effect. -
Page 11: Timer Mode Operation Procedure
TIMER mode operation procedure TIMER ON button At stopping, press TIMER ON button, set ON TIME in range of 0 to 24 hour to start the unit automatically. Timer cancellation TIMER OFF button At operating, press TIMER OFF button, set OFF TIME in range of 0 to 24 hour to stop the unit automatically. -
Page 12: Sleep Mode Operation Procedure
SLEEP mode operation procedure As the unit is cooling or drying, if SLEEP operation is set, SET TEMP. would increase 1 in 1 hour and 2 in 2 hours. As the unit is heating , if SLEEP operation is set, SET TEMP. would decrease 1 in 1 hour and 2 2 hours. -
Page 13: How To Insert Batteries
How to insert batteries 1.Remove the cover from the back of the remote control. 2.Insert the two batteries ( Two 7# dry - cell batteries ) and press but- ton “ACL”. 3.Re - attach the cover. NOTE: Don’t confuse the new and worn or different types of batteries. -
Page 14: The Best Operating Methods
The best operating methods adjust to the suit- able temp. too cool will do harm pull off the plug to the health. if the unit will be free in a long time. cleaning the air filter se- riously and maintaining the air cleaner carefully. -
Page 15: User Notices
USER NOTICES Select the most appropriate temperature. It can The airflow direction can be adjusted appropria- avoid the electricity wasting. tely. The louvers can be adjusted downward at heat- ing operation, and upward at cooling operation. Don’t leave windows and doors open while the air Don’t blow the wind to animals and plants directly. -
Page 16: Care And Maintenance
Care and Maintenance CAUTION Turn power off and pull out the power plug before cleaning air conditioner. Don’t sprinkle water on the indoor unit and the outdoor unit for cleaning. Wipe the units with a dry soft cloth, or a cloth slightly moistened with water or cleaner. - Page 17 3.Reinsert the filters Reinsert the filters with side marked FRONT facing forward. Replacement of Air cleaner Recommended once every three years, and the alternate filters can be found in the service center. 1.Remove the Air Filters (Refer to the first step of “cleaning the Air Filters”) 2.Replace the Air cleaner Air cleaner Take off the packed bag of Air purifying Filters, and...
-
Page 18: Trouble Shooting
Trouble shooting Check the following points before requesting on service center if the malfunction persist, it saves your time and money. Phenomenon Trouble Shooting Indoor unit does not Once the air conditioner is stopped, it will not operate in operate immediately approximately 3 minutes to protect itself. - Page 19 Trouble shooting Immediately stop all operations and plug out, contact with service center in following situations. Unusual noise can be heard during operation. Power fuse or switch often breaks. Carelessly splash water or something into air conditioner. Electrical lines and power plug are very hot. Wind blowing from the outlet smells terrible during operation.
-
Page 20: Technical Specifications
Technical specifications Model Functions Cool Cool Heat Cool Cool Heat Cool Cool Heat Accessory Memory function (show in Cooling capacity (W) 2000W 2000W 2500W 2500W 3200W 3200W Heating capacity (W) 2400W 3100W 3800W 230V~ Power supply Frequence 50Hz Cooling/Heating rated current 3.26/-A 3.26/3.43A 4.35/-A... - Page 21 Technical specifications Model Functions Cool Cool Heat Cool Cool Heat Cool Cool Heat Accessory Memory function (show in Cooling capacity (W) 2500W 2000W 2000W 2 00W 3200W 3 00W Heating capacity (W) 2400W 2 00W 3800W Power supply 230V~ Frequence 50Hz Cooling/Heating rated current 3.6/-A...
-
Page 22: Accessories And Installation Diagram
Accessories and Installation diagram Accessories (Check that all accessory parts are present before installation) Part name Diagram Specification Memo Rear panel Wireless remote controller Battery 1.5V Power connection cord Control cord 0.75 Heat pump type only Tapping screw ST4.2 Fix the rear panel Packaged with Plastics drain hose L=2m... - Page 23 Installation dimension diagram IMPORTANT NOTES The installation must be done by trained and qualified service per- sonnel with reliability according to this manual. Contact with service center before installation to avoid the malfunc- tion due to unprofessional installation. When picking up and moving the units, you must be guided by trained and qualified personnel.
-
Page 24: Installation Location
Installation location Indoor unit 1.The inlet and outlet should not be covered so that the outflow air can reach all parts of the room. 2.Install in a location where is easy to connect to the outdoor unit. 3.A location from which the condensation water can be drained out conveniently. 4.Avoid a location where there is heat source, high humidity or inflammable gas. -
Page 25: Install The Indoor Unit
Install the indoor unit Install the rear panel 1.For well draining,make the rear panel hori- zontally and then appreciably lower the left side of the rear panel because the drain hose is on the left side.. 2.Fix the rear panel on the selected location with screws supplied with the unit. - Page 26 Install the indoor unit 6.Reassemble the clampand wiring cover. 7.Recover the surface panel. Fig.4 NOTE: All the electrical work must be done by qualified personnel according to the local rules and this manual. The rated voltage and the exclusive circuit must be used. Leakage circuit - breaker must be installed.
-
Page 27: Install The Outdoor Unit
Install the outdoor unit Install the connection pipe 1.Align the center of the piping flare with the relevant valve. 2.Screw in the flare nut by hand and then tighten the nut with spanner and torque wrench refer to the diagram at right. Note: Exceeding tightening torque will damage the flare surface. - Page 28 Install the outdoor unit Air purging and leakage test 1.Remove the flare nuts from the cut - off valves of the outdoor unit. 2.Align the center of the piping flare with the relevant valve, and screw in the flare nut about 3~4 turns by hand. 3.Tighten the flare nut with spanner and torque wrench.
-
Page 29: Test Operation And Check After Installation
Test operation and check after installation Test operation 1. Before test operation (1)Do not switch on power before installation is finished completely. (2)Electric wiring must be connected correctly and securely. (3) Cut - off valves of the connection pipes should be opened. -
Page 30: Table Of Contents
CONTENTS The instructions before use Name and function of each part Name and Function-Remote control Name and Function-Remote control(Remove the cover) COOL mode operation procedure HEAT mode operation procedure DRY mode operation procedure AUTO mode operation procedure TIMER mode operation procedure SLEEP mode operation procedure HOW to insert batteries The best operating methods...
