Auto Meter Products Inc.
413 West Elm Street
Sycamore, IL 60178
Toll Free (866)-883-TEST (8378)
www.autometer.com/test
2650-1753-77 Rev. C
1/12/16

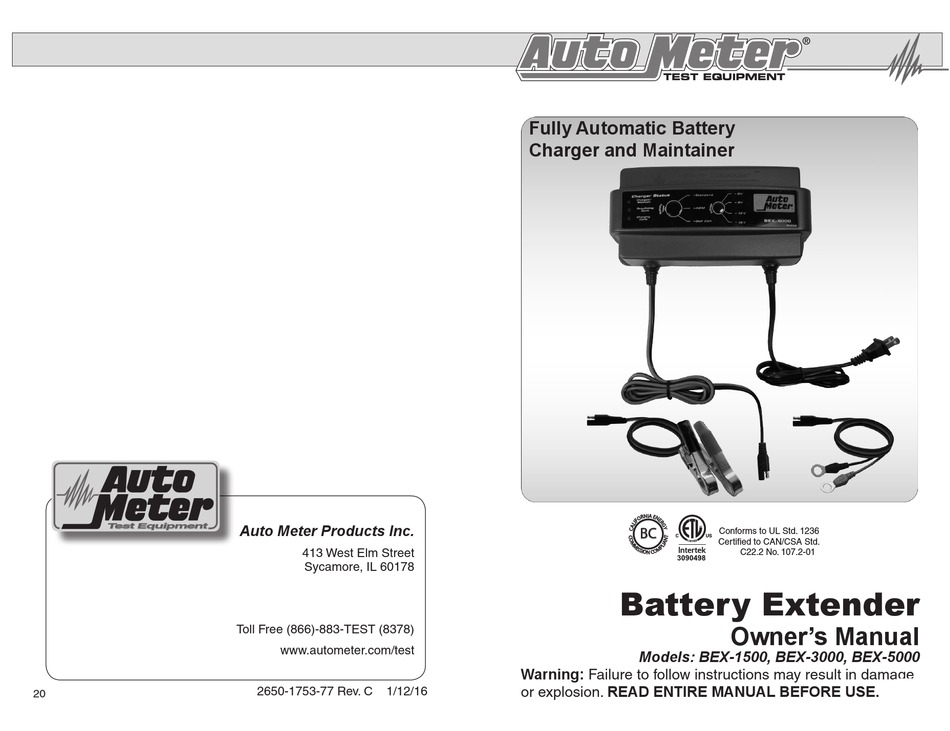

Fully Automatic Battery
Charger and Maintainer
BC
Battery Extender
Models: BEX-1500, BEX-3000, BEX-5000
Warning: Failure to follow instructions may result in damage
or explosion. READ ENTIRE MANUAL BEFORE USE.
�
Conforms to UL Std. 1236
Certified to CAN/CSA Std.
C22.2 No. 107.2-01
Owner's Manual
