Auto Meter AC-90 Operator's Manual

Docking & charging station
Hide thumbs

Advertisement

Table of Contents

�

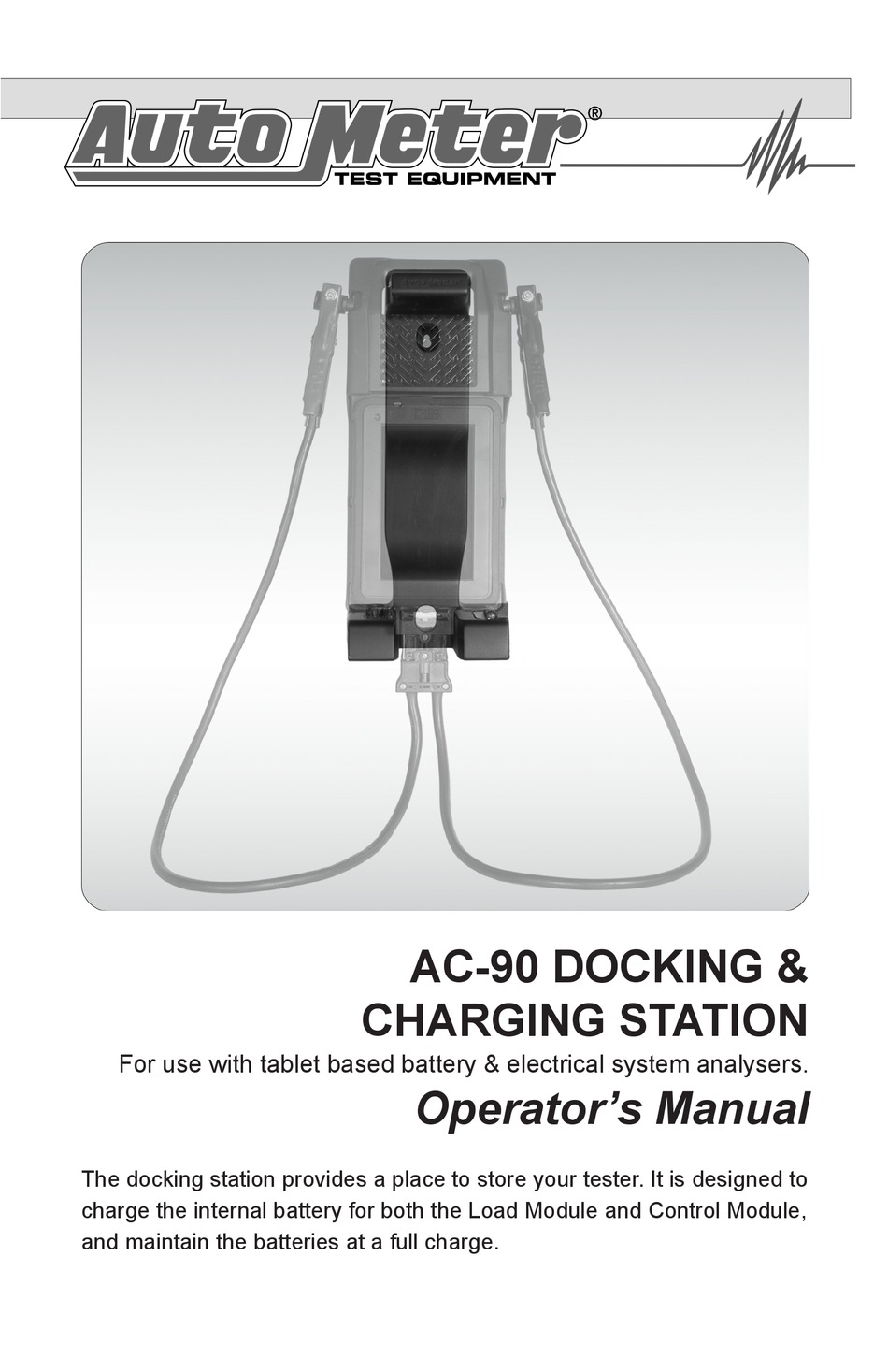

AC-90 DOCKING &
CHARGING STATION
For use with tablet based battery & electrical system analysers.
Operator's Manual
The docking station provides a place to store your tester. It is designed to
charge the internal battery for both the Load Module and Control Module,
and maintain the batteries at a full charge.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AC-90 and is the answer not in the manual?

Questions and answers

Related Manuals for Auto Meter AC-90

Summary of Contents for Auto Meter AC-90

  • Page 1 � AC-90 DOCKING & CHARGING STATION For use with tablet based battery & electrical system analysers. Operator’s Manual The docking station provides a place to store your tester. It is designed to charge the internal battery for both the Load Module and Control Module,...
  • Page 2 CONTENTS Specifications ................4 Safety ..................5 Usage ..................6 Warranty ..................7 Contact ..................8...
  • Page 3 CONGRATULATIONS! You have purchased Auto Meter’s AC-90 Docking Station. The docking station is designed to be mounted on a vertical surface and provides a place where you can store your tester and charge the Li-Ion internal batteries for both the Load Module and Control Module.

  • Page 4: Specifications

    SPECIFICATIONS Input Power: .........100 – 240 VAC, 50/60 HZ, 1 Amp Output Power:............. 5.5 VDC, 4.0 Amps Operating Temperature: ............32º to 120ºF Mounting Hole Spacing: ..............12.0” Size:..............16-5/8” H x 6-1/2” W x 5” D Weight: ..................1-3/4 lbs. MOUNTING INSTRUCTIONS 1. Hold the docking station up to the vertical surface that it is to be mounted to.
  • Page 5 SAFETY Carefully read all operating instructions before using the Docking Station. Wear eye protection when working around batteries. Keep sparks flames or cigarettes away from batteries. Provide adequate ventilation to remove car exhaust. Do not expose the Docking Station to rain or snow.
  • Page 6 USAGE Plug the included power supply in to a power outlet receptacle. Then plug the barrel connector from the power supply in to the left side of the docking station. Place the tester into the docking station by placing the carrying handle over the docking station handle hook and then swing the bottom into the docking station until the tester falls into position.

  • Page 7: Limited Warranty

    LIMITED WARRANTY 12 MONTHS FROM DATE OF PURCHASE The manufacturer warrants to the consumer that this product will be free from defects in material or workmanship for a period of twelve (12) months from the date of original purchase. Products that fail within this 12 month warranty period will be repaired or replaced at the manufacturer's option to the consumer, when determined by the manufacturer that the product failed due to defects in material or workmanship.
  • Page 8 Auto Meter Products Inc. T est Equipment 413 West Elm Street Sycamore, IL 60178 Service (815) 899-0801 Toll Free (866)-883-TEST (8378) www.autometer.com/test 2650-1836-77 9/15/15...
