Professional
BusPro-620
s

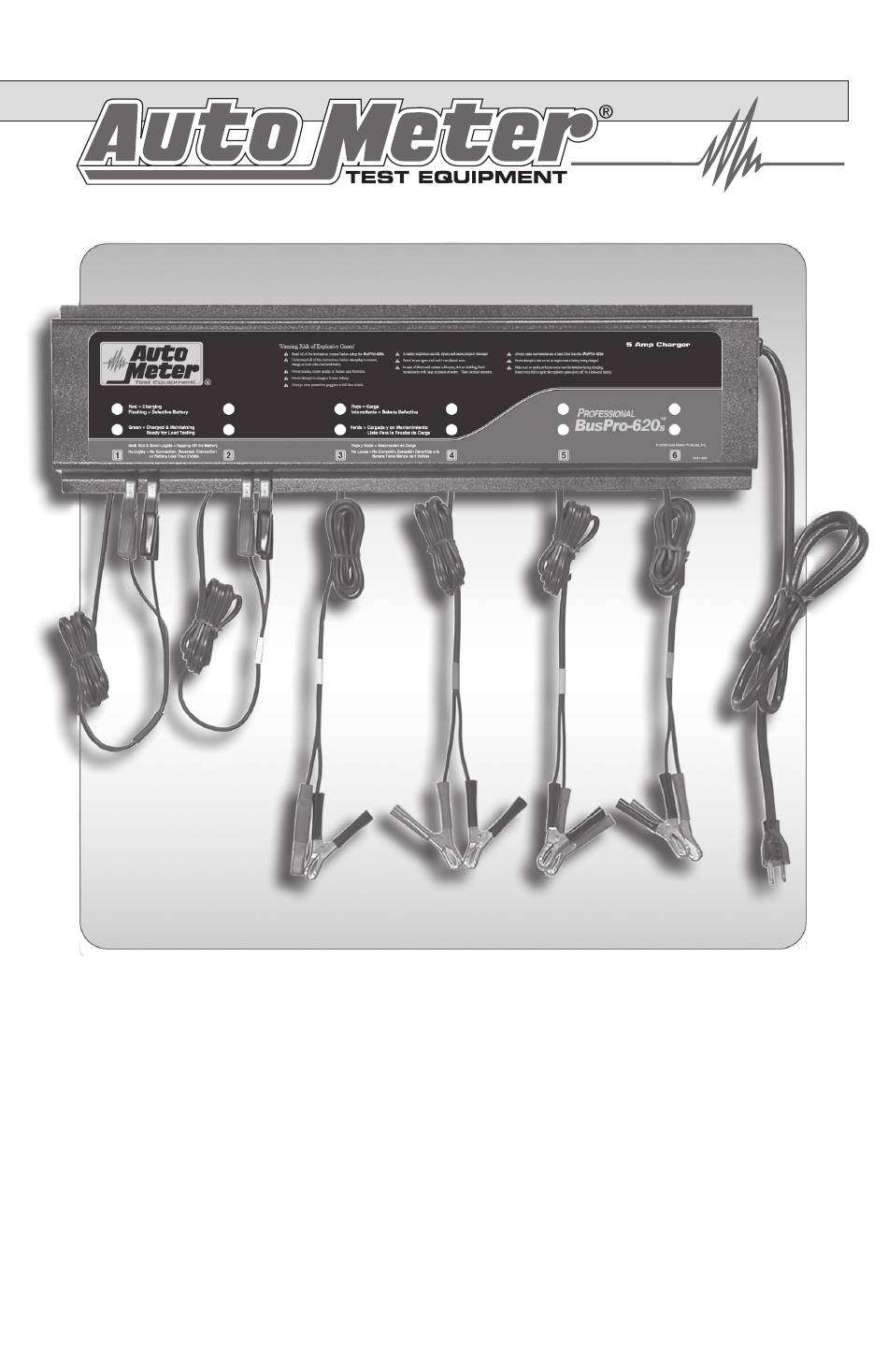

Instruction Manual

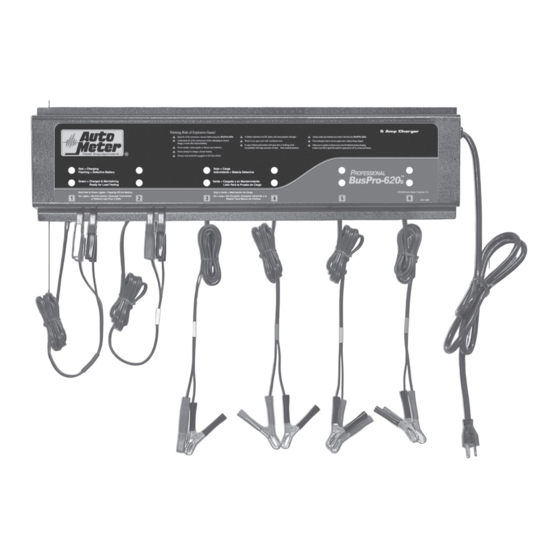

The BusPro-620s is an automated 12-Volt Battery Charging System that
will charge and maintain up to six batteries at a time. The BusPro-620s
delivers a voltage recommended by battery manufacturers for the
longest life and greatest performance of your batteries.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Professional BusPro-620s and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Auto Meter Professional BusPro-620s

Summary of Contents for Auto Meter Professional BusPro-620s

  • Page 1 Professional BusPro-620 Instruction Manual The BusPro-620s is an automated 12-Volt Battery Charging System that will charge and maintain up to six batteries at a time. The BusPro-620s delivers a voltage recommended by battery manufacturers for the longest life and greatest performance of your batteries.

  • Page 2: Table Of Contents

    CONGRATULATIONS! You have made a purchase of Auto Meter’s BusPro-620s designed to charge 12 Volt batteries. The system is fully automated with LED’s indicat- ing unattended viewing status. BusPro-620s Charges ------------------------------------------------------ 12 Volt Batteries Input -----------------------------------------------------220 VAC @ 2.5 Amps Charging output mode ----------------------------------------- 5 Amps Max.

  • Page 3: Safety Instructions

    Auto Meter. If the BusPro-620s has been dropped, received a sharp blow, or abused in any way, have it inspected and repaired by Auto Meter if necessary. Do not use an extension cord to operate the BusPro-620s. An inadequate...

  • Page 4: Personal Safety

    SAFETY INSTRUCTIONS Cont. 11. NEVER attempt to charge a frozen battery. Allow the battery to return to room temperature before connection. 12. ALWAYS use the BusPro-620s in an open and well-ventilated area. The area should be dry and free of trash, debris and combustibles. 13.

  • Page 5: Setting Up The Buspro-620S

    SETTING UP THE BusPro-620s The BusPro-620s Charger has two mounting keyholes. YOU MUST mount the BusPro-620s to a wall that provides a secure surface. This will keep it out of the way and prevent damage due to accidents. If needed, you may leave the two screws slightly extended from the wall to allow easy removal through the keyhole slots.
  • Page 6 What To Expect From The BusPro-620s The Professional BusPro-620s Charger is equipped with sophisticated circuitry that will: Check Each Battery’s Condition The BusPro-620s will indicate bad batteries that are sulfated or have bad cells. This allows the battery to be replaced without unnecessary charging.
  • Page 7 DISCONNECTING THE BusPro-620s The BusPro-620s charger is safely maintaining the battery at a full charge when the green light is on. Simply remove the clamps and set them on the working surface clear from the other batteries and clamps. You can now load-test the battery. Note: When the clamps are accidentally disconnected while charging is in effect the BusPro-620s will shut the individual station off.

  • Page 8: Inspecting The Battery

    Inspecting the electrical system If the battery and terminals have a white or bluish crust on them, the charging system may be having problems. Use one of Auto Meter’s BVA Analyzers to test the charging and starting system. These problems should be corrected before the battery is installed.
  • Page 9 BusPro-620s HOOKUP POTENTIAL Charge up to 36 12-Volt batteries n Each station delivers 5 Amps to one battery n With optional AC-8 lead sets each station delivers 2.5 Amps to each battery n In order to charge 36 batteries follow the steps below: Step 1 Hooking Up 3 Bus-Pro-620s Chargers Hook 3 units together by plugging the next unit into the AC cord...

  • Page 10: Hooking Up The Clamps

    HOOKING UP THE CLAMPS Each charging station has a lead set with a red positive (+) and a black negative (-) clamp. If the BusPro-620s has been installed correctly, at least two feet above the work station, the clamps should lie on a clean dry surface.
  • Page 11 ADD ON CORD INSTRUCTIONS OPTIONAL ADD ON CORD FOR 2nd and 3rd UNITS Remove Cover Drill 13mm hole through circle on decal at the opposite end from the cord. Insert supplied grommet (zip tied to black and white wires) into hole. Route new cord through grommet.
