Electrode Replacement - EUTECH INSTRUMENTS HIGHLOW CONDUCTIVITY TESTER Manual

Twist-off
Battery
Compartment
Replaceable
Sensor
•
Push-button calibration
•
Fast, stable, repeatable readings
•
Available through authorized distributors
S P E C I F I C A T I O N S
Tester TDScan TDScan
Low
Range 0 to
1990
ppm
Resolution 10
ppm
Accuracy
TDS factor 0.4 to 1.0 selectable
Calibration 200 to
Standard 1990
Range ppm
Calibration 1 point (calibration range is ±30%
of factory default parameter)
ATC
Temp
Coefficient
Operating
Temp
Power
Battery (Type: A76, LR 44 or V136A);
> 140 hrs continuous use
Dimension; Tester: 16.5 cm x 3.8 cm; 90 g
Weight Boxed: 22 cm x6 cm x 5 cm; 170 g
Manufactured By:
Eutech Instruments Pte Ltd
Blk 55, Ayer Rajah Crescent,
#04-14/24, Singapore 139949
Tel: (65)778 6876 Fax: (65)773 0836
E-Mail: marketing@eutechinst.com
Web-Site: http://www.eutechinst.com
Made in Singapore
68X247828 11/00 Rev 0
Lanyard
connection
ECScan ECScan
High Low High
0 to 0 to 0 to
10.00 1990 19.90
ppt µS/cm mS/cm
0.10 10 0.10
ppt µS/cm mS/cm
±1% Full Scale
-
2 .00 to 200 to 2.00 to
10.00 1990 19.90
ppt µS/cm mS/cm
0 to 50 °C
2% per °C
0 to 50 °C
Four X 1.5V

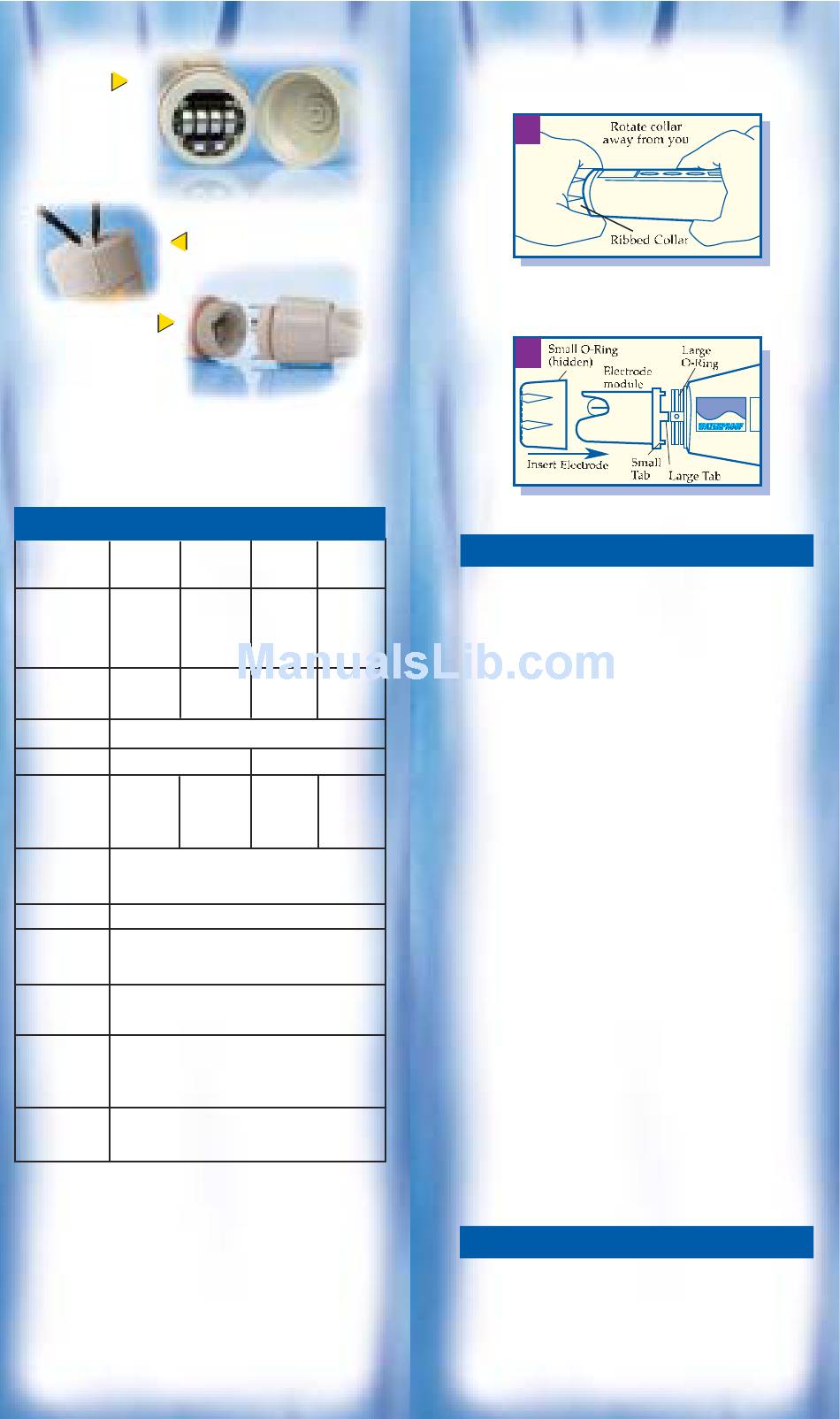

(Picture A)
REMOVE THE OLD ELECTRODE
A
(Picture B)
REPLACE THE ELECTRODE
B

Electrode Replacement

You can replace the electrode module
at the fraction of the cost of a new
tester. When the tester fails to calibrate
or gives fluctuating readings in
calibration standards, you need to
change the electrode.
1. With dry hands, grip the ribbed tester
collar with electrode facing you. Twist
the collar counter clockwise (see picture
A). Save the ribbed tester collar and
O-ring for later use.
2. Pull the old electrode module away from
the tester.
3. Align the four tabs on the new module
so that they match the four slots on the
tester (see picture B).
4. Gently push the module onto the slots
to sit it in position. Push the smaller
O-ring fully onto the new electrode
module. Push the collar over the module
and thread it into place by firmly twisting
clockwise.
Applications
Water quality testing • water and
Wastewater treatment • hydroponics
• pools • boilers • factories • ecology
studies • and more!
