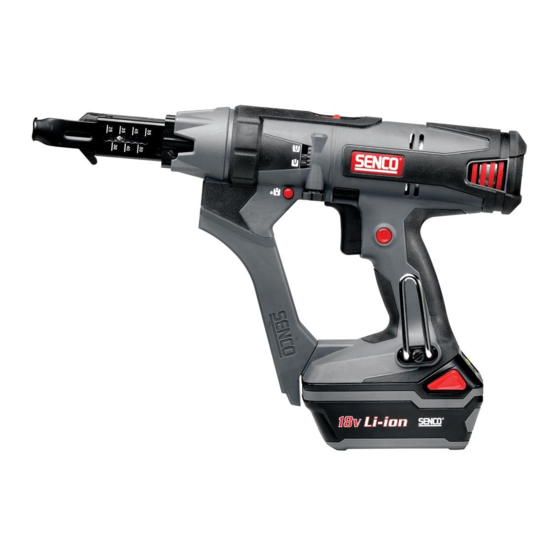

AUTOFEED SCREWDRIVER
Senco Brands, Inc.
8450 Broadwell Road
Cincinnati, Ohio 45244
1-800-543-4596
www.senco.com
EMEA: www.senco-emea.com
BRUKSVISNING
(OVERSETTELSE AV DE ORIGINALE INSTRUKSJONENE)
BRUKSVISNING
(ÖVERSÄTTNING AV DE URSPRUNGLIGA UNDERVISNINGARNA)
BRUGSANVISNING
(OVERSÆTTELSE AF DE ORIGINALE INSTRUKTIONER)
INSTRUZIONO PER L'USO
(TRADUZIONE DELLE ISTRUZIONI ORIGINALI)
INSTRUCCIONES DE EMPLEO
(LA TRADUCCIÓN DE LAS INSTRUCCIONES ORIGINALES)
DS5550-18V
DS5525-18V
DS7525-18V
NFE87W7X7Y Issued April 26, 2013
© 2013 by Senco Brands, Inc.
Advertisement
Table of Contents
Related Manuals for Senco DS5525-18V
Summarization of Contents
General Power Tool Safety Warnings
Work Area Safety
Keep your work area clean and well lit. Cluttered or dark areas invite accidents.
Electrical Safety
Power tool plugs must match the outlet. Never modify the plug in any way. Use adapter plugs with earthed power tools.
Prevent Unintentional Starting
Ensure the switch is in the off-position before connecting to power source and/or battery pack.
Personal Safety
Stay alert, watch what you are doing, and use common sense when operating a power tool.
Battery Pack Safety
A battery short can cause a large current flow, overheating, possible burns and even a breakdown.
Battery Disposal
To preserve natural resources, please recycle or dispose of properly. This product contains Li-lon.
Tool Operation
Loading the Tool
Check to be sure the heads of the screws are resting on top of the plastic collation material.
Changing the Nosepiece
Remove battery before changing the nosepiece.
Forward and Reverse Operation
To operate in reverse, remove the screw strip and push the black reverse button.
Trigger Lock
To lock the trigger for continuous operation, depress the trigger and push in the red locking button.
Depth of Drive Adjustment
This tool has a depth-sensing clutch. When the screw is countersunk to the pre-set depth, it automatically disengages.
Maintenance
Read Safety Warnings Before Maintenance
Read section titled "Safety Warnings" before maintaining tool.
Daily Inspection
With battery disconnected, make daily inspection to assure free movement of nosepiece and trigger.
Cleaning the Tool
Wipe tool clean daily and inspect for wear. Use non-flammable cleaning solutions only if necessary.
Troubleshooting
Tool Will Not Start or Runs Slowly
Check if the battery is discharged or defective, trigger switch is defective, or motor is defective.
Tool Will Not Fully Drive Fastener
Verify bit is worn, tool capabilities exceeded, or tool is in reverse.
Fastener Jams
Check for defective collation material or damaged nosepiece.
Battery Will Not Charge
Check if the battery is defective or overheated. Allow battery to cool before charging.
Technical Specifications
DS5550-18V Specifications
Details voltage, RPM, weight, dimensions, recharge time, fastener capacity and range.
DS5525-18V Specifications
Details voltage, RPM, weight, dimensions, recharge time, fastener capacity and range.
DS7525-18V Specifications
Details voltage, RPM, weight, dimensions, recharge time, fastener capacity and range.
Noise/Vibration Information
Measured sound and vibration values determined according to EN 60745.
Accessories
Senco Screws and Accessories
Information on DuraSpin screws, bits, batteries, chargers, nosepieces, and hangers.
Contact Sales Representative for Catalog
Contact your sales representative for more information or a complete illustrated catalog of Senco accessories.
Declaration of Conformity
Product Conformity Statement
Declares product conformity with relevant standards and directives.
Authorized Technical File Compiler
Identifies the party authorized to compile the technical documentation.
Senco Professional End User Warranty Policy
Warranty Period for Products
Details warranty periods for various Senco product lines like pneumatic, electric, and battery tools.
Warranty Claim Procedure
Outlines steps for claiming warranty, including sending defective products and proof of purchase.
Exclusions from Warranty
Lists conditions not covered by warranty, such as normal wear and tear, misuse, or accidents.
