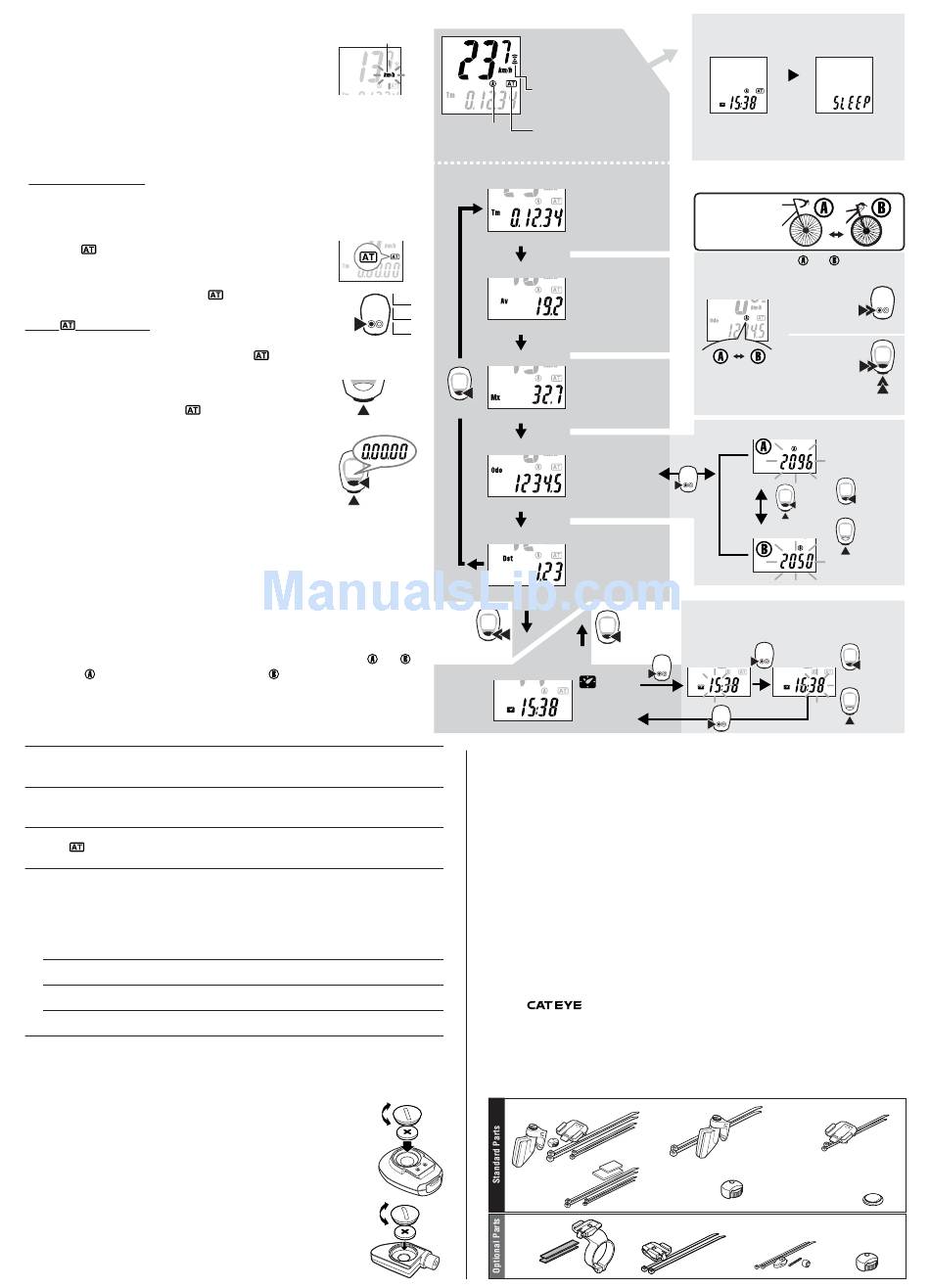

Computer Features; Specification; Troubleshooting/Replacing Battery - Cateye CC-FR7CL Owner's Manual

Operation of Computer
Speed Scale Indicator - "mph" or "km/h" on main display flashes
when computer is measuring speed.
Display Modes - Press MODE button to shift lower display from
one mode to the next. The display modes change from Elapsed
Time (Tm), to Average Speed (Av), to Maximum Speed (Mx), to
Total Odometer (Odo), to Trip Distance (Dst).
CLOCK TIME - Hold MODE button for 2 seconds to display Clock
Time (this works in any of the display modes).
[To set correct Clock Time, press SET button when Clock Time is
showing in lower display. Use MODE button to increase the digit
number, and press SET to change to next digit. Press SET button
when complete].
AUTO TIME - When this is activated, the computer will auto-
matically start and stop measuring Elapsed Time (Tm), Average
Speed (Av), and Trip Distance (Dst), as soon as the bike starts
moving. AUTO TIME is activated when
display.
To turn feature on or off, press SET button while lower display
is in Elapsed Time (Tm), Average Speed (Av), or Trip Distance (Dst)
mode. For best results, operate the computer with
MANUAL MODE - Press the START/STOP button to start the
Elapsed Time (Tm), Average Speed (Av) and Trip Distance (Dst)
measurement, ONLY IF AUTO TIME
Reset Time, Distance, Average - To reset (zero out) ride data
(Elapsed Time, Trip Distance, Average Speed, and Max. Speed),
press MODE and START/STOP simultaneously. [Total Odometer is
not reset].

Computer Features

Power Saving Function:
• Power saving mode ------- No signal for 10 minutes.
• Sleep mode ----------------- No signal for 2 weeks.
• Wake mode ----------------- Press MODE or START/STOP button.
Dual tire size:
• Two different wheel size can be programed.
• Press MODE and START/STOP simultaneously for 2 seconds to switch size
• Wheel size is designed for road bikes. Wheel size
that can be typical for mountain bikes.
Troubleshooting
No display.
The battery in the computer run down?
Replace it with a new one and do all clear operation.
Incorrect data appears.
Do all clear operation. (Before this operation, write down your Odo data, and input it again after all
clear operation. In this way you can continue to accumulate your Odo.)
Cannot start measuring by START/STOP button.
Is the icon on?
To operate manually, switch off the Auto Time.
Sensor pulse indicator does not flash. (Current speed does not appear.)
[If the sensor pulse indicator fails to flash, first spin front wheel to align computer with sensor. Indicator
will flash if computer is working. If not, this will pinpoint the problem to be: 1. dead battery; 2. distance
between sensor and unit is over 70cm.]
Is the clearance between the sensor and the magnet too large?
Are the magnet's center and the sensor's marking line aligned?
Re-adjust the positions of the magnet and the sensor.
Is the distance between the computer and the sensor too long?
Adjust the sensor's position so that the distance becomes less than 70cm.
The battery in the sensor run down?
Replace it with a new one. *In winter, battery's performance is degraded.
The battery in the computer run down?
Replace it with a new one and do all clear operation.
Maintenance
• To clean the computer or accessories, use diluted neutral detergent on
a soft cloth, and then wipe it off with a dry cloth.
• If the gaps between the buttons and the unit get clogged with mud or
sand, wash with water.
Replacing Battery
Computer
If the screen gets dim, please replace the battery. (Before replacing bat-
tery, write down your Odo data, and input it again after all clear operation.
This way you can retain your Odo data and continue to count, even after
replacing the battery.)
• Insert a new lithium battery (CR2032) with the (+) mark facing up.
• After replacing battery, do all clear operation and set up the unit again.
Sensor
If the sensor pulse symbol on the display gets dim, please replace the
battery. After replacing the battery, check the position of the sensor and
magnet again.
Speed Scale Indicator
icon shows in main
SET
Press SET button in
Tm, Av or Dst
activated.
is not activated. Start/Stop
MODE
ST./STOP
is designed for slower speeds
Close
Open
Close
Open
Display Features
Speed
0.0(4.0)-105.9 km/h
[0.0(3.0)-65.9 mph]
Sensor Pulse Indicator
Flashes in synchronization with
signal from sensor.
Wheel Icon
Auto Time Icon
Shows which
Starts/stops measuring
wheel is selected
automatically.
How Mode Shifts in Lower Display
Tm
Av
If Elapsed Time exceeds 27 hours or Trip
Dst
Distance exceeds 999.99km, Average
Speed shows E. and ceases calculation.
MODE
From any mode
Hold
down
2 seconds
MODE
Returns to
and .
above mode

Specification

Battery ------------------------------ Computer:
Battery Life ------------------------- Computer:
Controller -------------------------- 4-bit 1-chip microcomputer (crystal controlled oscillator)
Display ----------------------------- Liquid crystal display
Sensor ------------------------------ No contact magnetic sensor
Wheel Circumference Range ---- 10mm-2999mm (default figure: A: 2095mm, B: 2050mm)
Working Temperature ------------ 0°C - 40°C (32°F - 104°F)
Dimension/Weight ---------------- 1-19/32 x 2-7/32 x 27/32" (40 x 56.5 x 21mm) / 1.06oz (30g)
* The factory-loaded battery life might be shorter than the above-mentioned specification.
* The specifications and design are subject to change without notice.
Limited Warranty
2-year warranty for computer/sensor only (excluding parts and batteries)
If trouble or damage occurs during normal use, the product will be repaired or replaced free of charge. Type your
name, address, date of purchase and the situation of trouble clearly on the warranty certificate, and send it back
to the appropriate service center together with the product. Insurance, handling and transportation charges shall
be borne by the customer. After being repaired or replaced, the product will be shipped back to the customer.
The following parts are available.
#169-6693
Parts Kit
#169-6773
Attachment Kit
#169-6667
Center
Mount Kit
Power Saving Function
No signal
(When the unit doesn't receive signal for ten minutes,
10 minuets
(upper display)
it enters into power saving mode.)
Power Saving Mode
When wheel starts rotating,
it returns to normal mode.
Pressing MODE and ST./STOP button simultaneously for a few
seconds in Mx mode, the computer will go to sleep mode.
Tm
Dual Tire Size
Elapsed Time
You can set 2
0:00'00"-9:59'59"
different wheel
circumferences
How to Switch Wheel
Av
Average Speed
0.0-105.9 km/h
[0.0-65.9 mph]
Mx
Road
Racer
Maximum Speed
0.0(4.0)-105.9 km/h
[0.0(3.0)-65.9 mph]
How to Change Wheel Circumference
Odo
Road
Racer
Total Distance
SET
0.0-99999 km [mile]
Dst
Trip Distance
MTB
0.00-999.99 km [mile]
How to Adjust Clock
If Km/h is selected for speed scale, it becomes 24-hour
clock. If mph is selected, it becomes 12-hour clock.
MODE
SET
SET
Clock
0:00-23:59
[1:00-12:59]
SET
Lithium Battery CR2032 X 1
Sensor: Lithium Battery CR2032 X 1
approx. 1 year (in the case of being used for 1 hour every day)
Sensor: until Total Distance reaches about 10,000km (6,250mile)
*This is the average figure of being used under 20°C temperature and the dis
tance between the computer and the sensor is 65cm.
2-8-25, Kuwazu, Higashi Sumiyoshi-ku, Osaka 546-0041 Japan
CO.,LTD.
Attn.: CAT EYE Customer Service Section
Service & Research Address for United States Consumers:
CAT EYE Service & Research Center
1705 14th St. 115 Boulder, CO 80302
Phone: 303-443-4595 Toll Free: 800-5CATEYE
Fax: 303-473-0006 e-mail: service@cateye.com
URL: http://www.cateye.com
#169-6673
Sensor
#169-9691
Magnet
#169-6669 #169-9760
Stem Mount Kit Magnet for Composite
Wheel
2 weeks
later
Sleep Mode
To wake up the unit,
press MODE button or
ST./STOP button.
and
In any functions
Odo
other than
SET
Hold down 2 seconds
Odo
In
MODE
MTB
ST./STOP
Press simultaneously
2 seconds
Default figure
Wheel A: 2096
Wheel B: 2050
Increases
figure
MODE
MODE
ST./STOP
Press simultaneously
Decreases
figure
ST./STOP
Increases
figure
MODE
Decreases
figure
ST./STOP
#169-6663
Bracket Kit
#166-5150
Lithium Battery (CR2032)
#169-9690
Hi-Power Wheel
Magnet
