SERVICE MANUAL

Ver. 1.1 2010.05
• HBD-TZ210/TZ230/TZ510/TZ630/TZ710 are the amplifi er,
DVD/CD and tuner section in DAV-TZ210/TZ230/TZ510/
TZ630/TZ710.
This system incorporates with Dolby* Digital and Dolby Pro Logic
(II) adaptive matrix surround decoder and the DTS** Digital Surround
System.
* Manufactured under license from Dolby Laboratories.
Dolby, Pro Logic, and the double-D symbol are trademarks of
Dolby Laboratories.
** Manufactured under license under U.S. Patent #'s:
5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,487,535 & other
U.S. and worldwide patents issued & pending. DTS and DTS
Digital Surround are registered trademarks and the DTS logos and
Symbol are trademarks of DTS, Inc. © 1996-2008 DTS, Inc. All
Rights Reserved.
Amplifi er Section
(DAV-TZ210/DAV-TZ510/DAV-TZ710)
POWER OUTPUT (rated):
Front L + Front R 65 W + 65 W (at 3 ohms, 1
kHz, 1% THD)
POWER OUTPUT (reference):
Front L/Front R/Center/
Surround L/Surround R:
100 watts (per channel at 3
ohms, 1 kHz)
Subwoofer: 100 watts (at 3
ohms, 80 Hz)
Inputs (Analog)
Canadian model: TV/CABLE (AUDIO IN)
Sensitivity: 450/250 mV
Other models: TV (AUDIO IN)
Sensitivity: 450/250 mV
Amplifi er Section
(DAV-TZ230/DAV-TZ630)
POWER OUTPUT (rated):
Front L + Front R 65 W + 65 W (at 3 ohms, 1
kHz, 1% THD)
POWER OUTPUT (reference):
Front L/Front R/Center/
Surround L/Surround R:
100 watts (per channel at 3
ohms, 1 kHz)
Subwoofer: 100 watts (at 3
ohms, 80 Hz)
Inputs (Analog)
TV (AUDIO IN) Sensitivity: 450/250 mV
Sony Corporation
9-889-755-02
2010E04-1 Audio&Video Business Group
©
2010.05 Published by Sony Techno Create Corporation
HBD-TZ210/TZ230/TZ510/

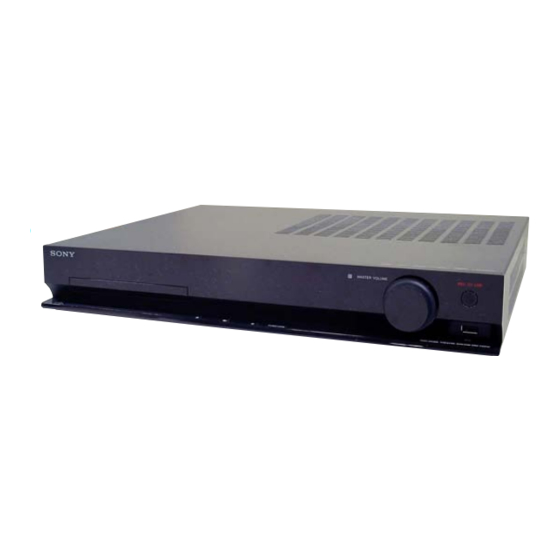

Photo: HBD-TZ210
Model Name Using Similar Mechanism
Mechanism Type
Optical Pick-up Name
SPECIFICATIONS
Super Audio CD/DVD System
(DAV-TZ210/DAV-TZ510/DAV-TZ710)
Laser Diode Properties Emission Duration:
Continuous
Laser Output: Less than
44.6 W
* This output is the value measurement at a distance
of 200 mm from the objective lens surface on the
Optical Pick-up Block with 7 mm aperture.
Signal format system
Mexican and Latin American models:
NTSC
Other models: NTSC/PAL
Super Audio CD/DVD System
(DAV-TZ230/DAV-TZ630)
Laser Diode Properties Emission Duration:
Continuous
Laser Output: Less than
44.6 W
* This output is the value measurement at a distance
of 200 mm from the objective lens surface on the
Optical Pick-up Block with 7 mm aperture.
Signal format system PAL/NTSC
USB Section
(USB) port:
Maximum current: 500 mA
TZ630/TZ710
Canadian Model
HBD-TZ210/TZ510
AEP Model
HBD-TZ230/TZ630
UK Model
HBD-TZ230
E Model
HBD-TZ210/TZ510/TZ710
Australian Model
HBD-TZ210
Chinese Model
HBD-TZ710
Russian Model
HBD-TZ210/TZ710
HBD-DZ170/DZ171/DZ175/
DZ310/DZ510/DZ610/DZ810
CDM85MB-DVBU102
KHM-313CAA
Tuner Section
System PLL quartz-locked digital
synthesizer
Tuning range
Canadian model: 87.5 MHz - 108.0 MHz
(100 kHz step)
Other models: 87.5 MHz - 108.0 MHz (50
kHz step)
Antenna (aerial) FM wire antenna (aerial)
Antenna (aerial) terminals 75 ohms, unbalanced
Intermediate frequency 10.7 MHz
Video Section
(DAV-TZ210/DAV-TZ510/DAV-TZ710)
Outputs VIDEO: 1 Vp-p 75 ohms
HDMI OUT: Type A (19
pin)
Video Section
(DAV-TZ230/DAV-TZ630)
Outputs VIDEO: 1 Vp-p 75 ohms
R/G/B: 0.7 Vp-p 75 ohms
HDMI OUT: Type A (19
pin)
– Continued on next page –
DVD RECEIVER
