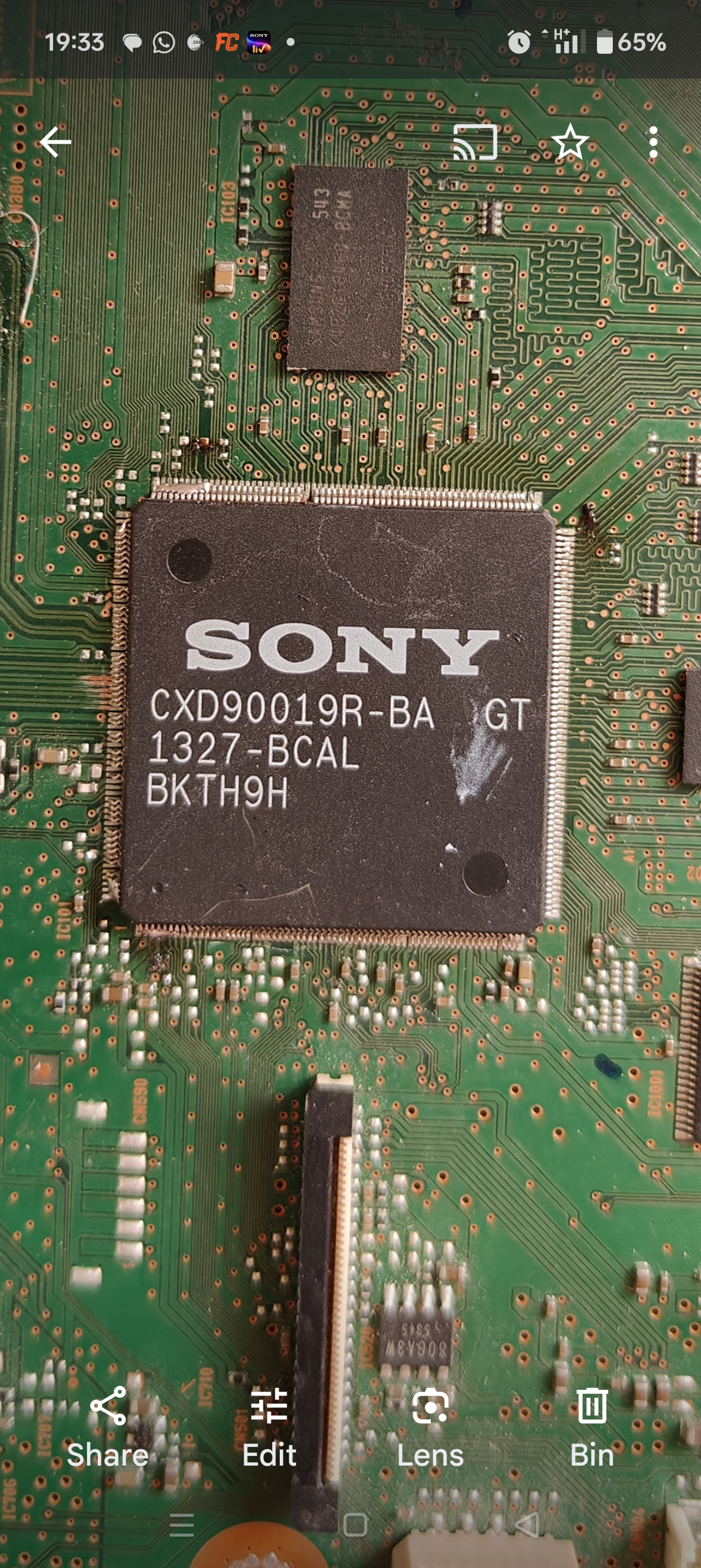

Sony HBD-E2100 Service Manual

Blu-ray disc/dvd receiver.
Hide thumbs

Advertisement

SERVICE MANUAL

Ver. 1.7 2014.06
• HBD-E2100 is the amplifi er, video, HDMI, BD/DVD/CD system, USB, LAN,
wireless LAN, Bluetooth, NFC and FM tuner section in BDV-E2100.
• HBD-E3100 is the amplifi er, video, HDMI, BD/DVD/CD system, USB, LAN,
wireless LAN, Bluetooth, NFC and FM tuner section in BDV-E3100.
• HBD-E3200 is the amplifier, video, HDMI, BD/DVD/CD system, USB, LAN,
wireless LAN, Bluetooth, NFC and FM tuner section in BDV-E3200.
• HBD-E4100 is the amplifi er, video, HDMI, BD/DVD/CD system, USB, LAN,
wireless LAN, Bluetooth, NFC and FM tuner section in BDV-E4100.
• HBD-E6100 is the amplifi er, video, HDMI, BD/DVD/CD system, USB, LAN,
wireless LAN, Bluetooth, NFC and FM tuner section in BDV-E6100.
Model Name Using Similar Mechanism
Mechanism Type

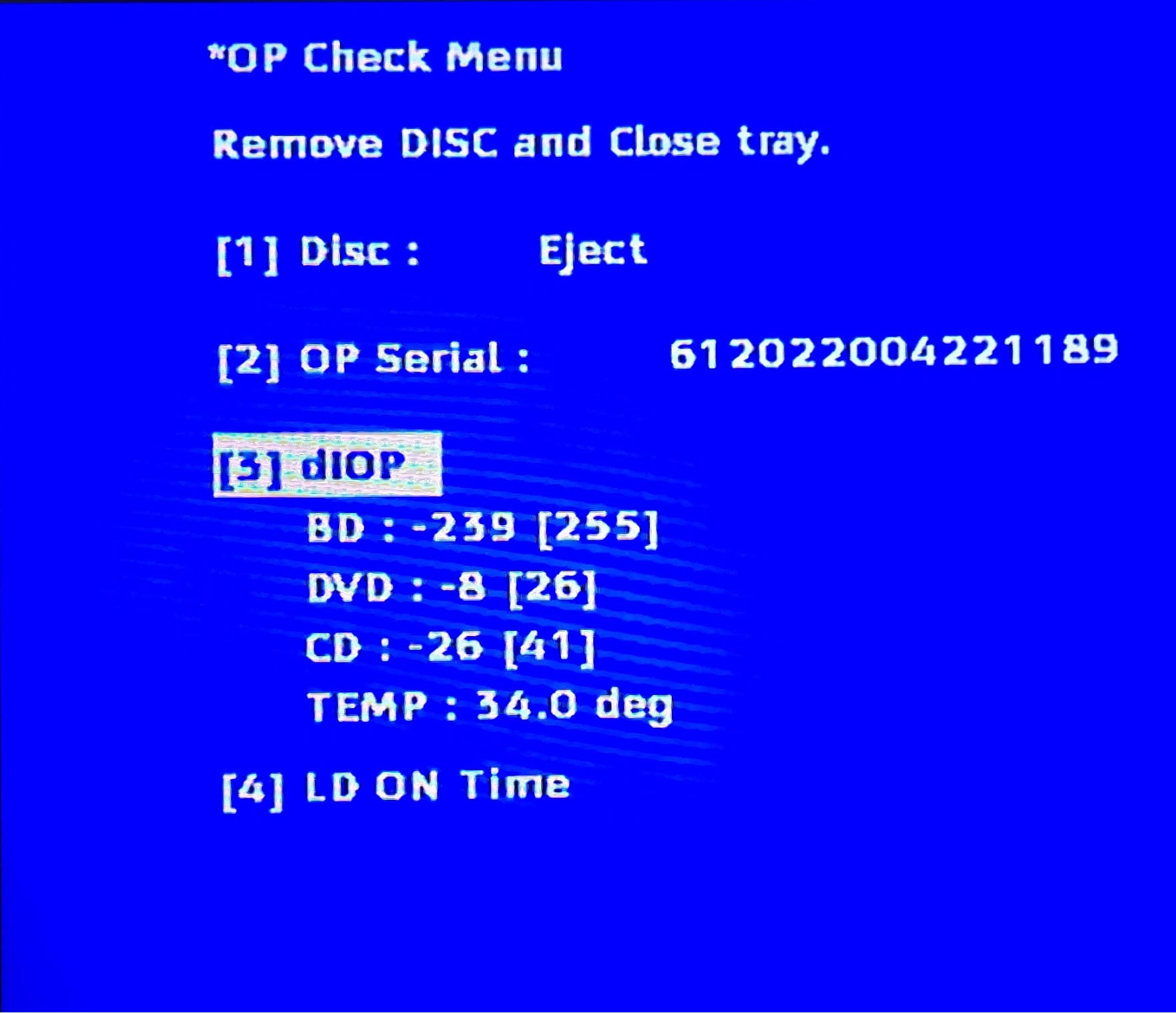

Optical Pick-up Block Name
Amplifi er Section
US model only:
AUDIO POWER SPECIFICATIONS
POWER OUTPUT AND TOTAL HARMONIC DISTORTION:
(FTC)
Front L + Front R:
With 3 ohms loads, both channels driven, from
180 Hz - 20,000 Hz;
rated 50 watts per channel
minimum RMS power, with no more than 1%
total harmonic distortion from 250 milliwatts to
rated output.
BDV-E6100/BDV-E4100/BDV-E3100/BDV-E3200
BDV-E2100 (Except UK model):
POWER OUTPUT (rated)
Front L/Front R:
75 W + 75 W (at 3 ohms, 1 kHz, 1% THD)
POWER OUTPUT (reference)
Front L/Front R/Surround L/Surround R:
125 W (per channel at 3 ohms, 1 kHz)
Center:
250 W (at 6 ohms, 1 kHz)
Subwoofer:
250 W (at 6 ohms, 80 Hz)
Inputs (Analog)
AUDIO IN
Sensitivity: 1 V/400 mV
MIC 1/2
Sensitivity: 10 mV (Singapore model)
Inputs (Digital)
TV (Audio Return Channel/OPTICAL)
Supported formats: LPCM 2CH
(up to 48 kHz), Dolby Digital, DTS
BDV-E2100 (UK model)
POWER OUTPUT (rated)
Front L/Front R:
75 W + 75 W (at 3 ohms, 1 kHz, 1% THD)
POWER OUTPUT (reference)
Front L/Front R/Surround L/Surround R:
100 W (per channel at 3 ohms, 1 kHz)
Center:
200 W (at 6 ohms, 1 kHz)
Subwoofer:
200 W (at 6 ohms, 80 Hz)
BDV-E4100/ BDV-E6100 (Chinese model)
POWER OUTPUT
Front L/Front R/Surround L/Surround R:
75 W (per channel at 3 ohms, 1 kHz)
9-890-611-08
Sony Corporation
2014F80-1
©
2014.06
Published by Sony EMCS (Malaysia) PG Tec
HBD-E2100/E3100/E3200/E4100/
Photo: HBD-E3100
BDP-S3100
BPX-7
KEM480AAA

SPECIFICATIONS

Center:
150 W (at 6 ohms, 1 kHz)
Subwoofer:
150 W (at 6 ohms, 80 Hz)
Inputs (Analog)
AUDIO IN
Sensitivity: 1 V/400 mV
Inputs (Digital)
TV (Audio Return Channel/OPTICAL)
Supported formats: LPCM 2CH (up to 48 kHz),
Dolby Digital, DTS
HDMI Section
Connector
Type A (19 pin)
BD/DVD/CD System
Signal format system
NTSC/PAL (except US, PX and Canadian models)
NTSC (US, PX and Canadian models)
USB Section
(USB) port:
Type A (For connecting USB memory, memory
card reader, digital still camera, and digital video
camera)
LAN Section
LAN (100) terminal
100 BASE-TX Terminal
Wireless LAN Section
Standards Compliance
IEEE 802.11 b/g/n
Frequency and Channel
US, Canadian, Argentina and Taiwan models:
2.4 GHz band: channels 1–11
Other models:
2.4 GHz band: channels 1–13
Frequency band
2.4000 GHz - 2.4835 GHz
Canadian Model
Singapore Model
HBD-E2100/E3100/E4100/E6100
Taiwan Model
HBD-E2100/E4100/E6100
HBD-E2100/E3100/E4100
Chinese Model
HBD-E2100/E3100/E3200/E4100/E6100
Argentina Model
Australian Model
Russian Model
Saudi Arabia Model
HBD-E3100/E4100/E6100
South African Model
HBD-E2100/E3100/E6100
Bluetooth Section
Communication system Bluetooth Specification version 3.0
Output
Bluetooth Specification Power Class 2
Maximum communication range
Line of sight approx. 10 m
(except US, PX and Canadian models)
Line of sight approx. 10 m (33ft)
(US, PX and Canadian models)
Frequency band
2.4 GHz band
2.4000 GHz - 2.4835 GHz
Modulation method
FHSS (Freq Hopping Spread Spectrum)
Compatible Bluetooth profiles
A2DP 1.2 (Advanced Audio Distribution
Profile)
AVRCP 1.3 (Audio Video Remote Control
Profile)
Supported Codecs
3)
SBC
Transmission range (A2DP)
20 Hz – 20,000 Hz (Sampling frequency
44.1 kHz, 48 kHz)
1)
The actual range will vary depending on factors such as obstacles
between devices, magnetic fields around a microwave oven, static
electricity, cordless phone, reception sensitivity, antenna's perfor-
mance, operating system, software application, etc.
Bluetooth standard profiles indicate the purpose of Bluetooth
2)
communication between devices.
3)
Codec: Audio signal compression and conversion format
4)
Subband Codec
BLU-RAY DISC/DVD RECEIVER
E6100
US Model
HBD-E2100/E3100
AEP Model
UK Model
HBD-E4100/E6100
E Model
BDV-E2100/E4100
HBD-E2100/E6100
Thai Model
PX Model
HBD-E2100
1)
1)
2)
4)
, AAC
