DELTA DORE RF 660 WIRELESS RECEIVER - GUIDE D Installation And User Manual

Installation and User Guide
RF 660
Wireless receiver
6050430 RF 660 – Wireless receiver/6-order pilot wire
http://pro.deltadore.com
DELTA DORE TALCO - Bonnemain - F-35270 COMBOURG - FRANCE
E-mail: deltadore@deltadore.com
Device complying with the requirements of the directives:
R&TTE 1999/5/CE
Because of changes in standards and equipment, the characteristics given in the text
and the illustrations in this document are not binding unless confirmed by Delta Dore.
Warnings
• Carefully read these instructions prior
to installation.
• The unit must be installed in compliance
with currently applicable standards.
• Always switch off the mains before installing or
servicing the unit.
• Do not attempt to repair the unit yourself;
an after-sales service is available.
• The diagrams provided are simplified for
greater clarity. The protective devices and other
accessories required by the standards are not
illustrated.
Standard UTE NF C15-100 and good practice
must be complied with. Connected or nearby
equipment must not generate excessive
interference (directive 2004/108/EEC).
Connection
Pilot
N L
wire
Blue
Brown Black
brown wire
black wire
blue wire
N
L

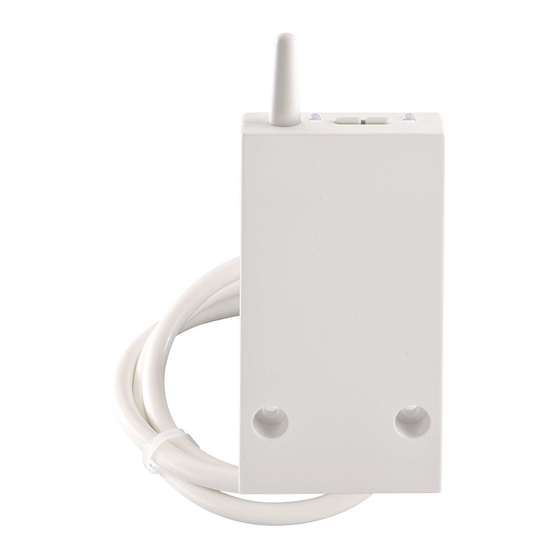

Presentation
Associated with a programmer (e.g. RADIO DRIVER),
the RF660 wireless receiver makes it easy for you to
control your heat emitters (convectors, panel heaters,
electric underfloor or ceiling heating, towel rail,
storage heaters, etc.) by using the principle of
the Pilot Wire.
Antenna
LEDs
Button
Pilot Wire principle:
Programmer Heat emitters
Pilot Wire orders
Receiver
Pilot Wire
(e.g. Wireless/Pilot Wire)
Mounting and connections
Switch off the mains power supply to your
electrical meter (general circuit breaker) before
any intervention.
- Remove the convector to obtain a clear access.
- Fit the receiver behind the convector, letting
the radio antenna project from it.
- Connect the receiver then fit back the convector.
Important: the operating temperature of the receiver
must not exceed 50°C. You must not install the
receiver to near the hottest parts of the convector.
Position behind the convector
You must let the radio antenna project from
the top of the convector to obtain a correct radio
transmission.
Antenna
radio
No
Convector
IIndependent from the power supply of the heat
emitter, the Pilot Wire is used to send the Comfort
Economy , Frost Protection or Shutdown
orders requested by the programmer.
The required temperature is set on the thermostat of
each heat emitter.
IMPORTANT: the heat emitter must be in automatic
mode (PROG, AUTO, etc. depending on model)
to receive orders from the programmer.
Pilot Wire
Setting on Room
order
the heat emitter temperature
(mode)
Comfort Comfort setting (thermostat knob)
example: 19°C
Comfort setting -1°C
Médio
(depending on model)
Modérato Comfort setting -2°C
(depending on model)
Economy setting (thermostat knob)
Economy
example: 16°C
Comfort –X°C
(depending on heat emitter model)
Absence
Frost protection set to 7°C or 8°C
7°C or 8°C
(depending on model)
Off
Heating shutdown
Heating
2
1
3 4
Screw-mounting Mounting by double-sided
adhesive tape
Mounted on a wall
Secure to the wall
using the screws
by using the
and pegs supplied.
double-sided
adhesive tape
supplied.
Ensure that the
surface on which the
tape is applied is
thoroughly clean before
attaching the tape.
,
19°C
18°C
17°C
16°C
No
