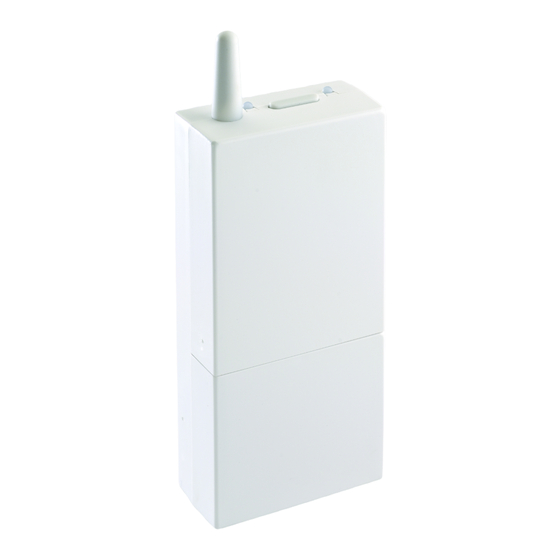

RF 6420 - RF 6450
Presentation

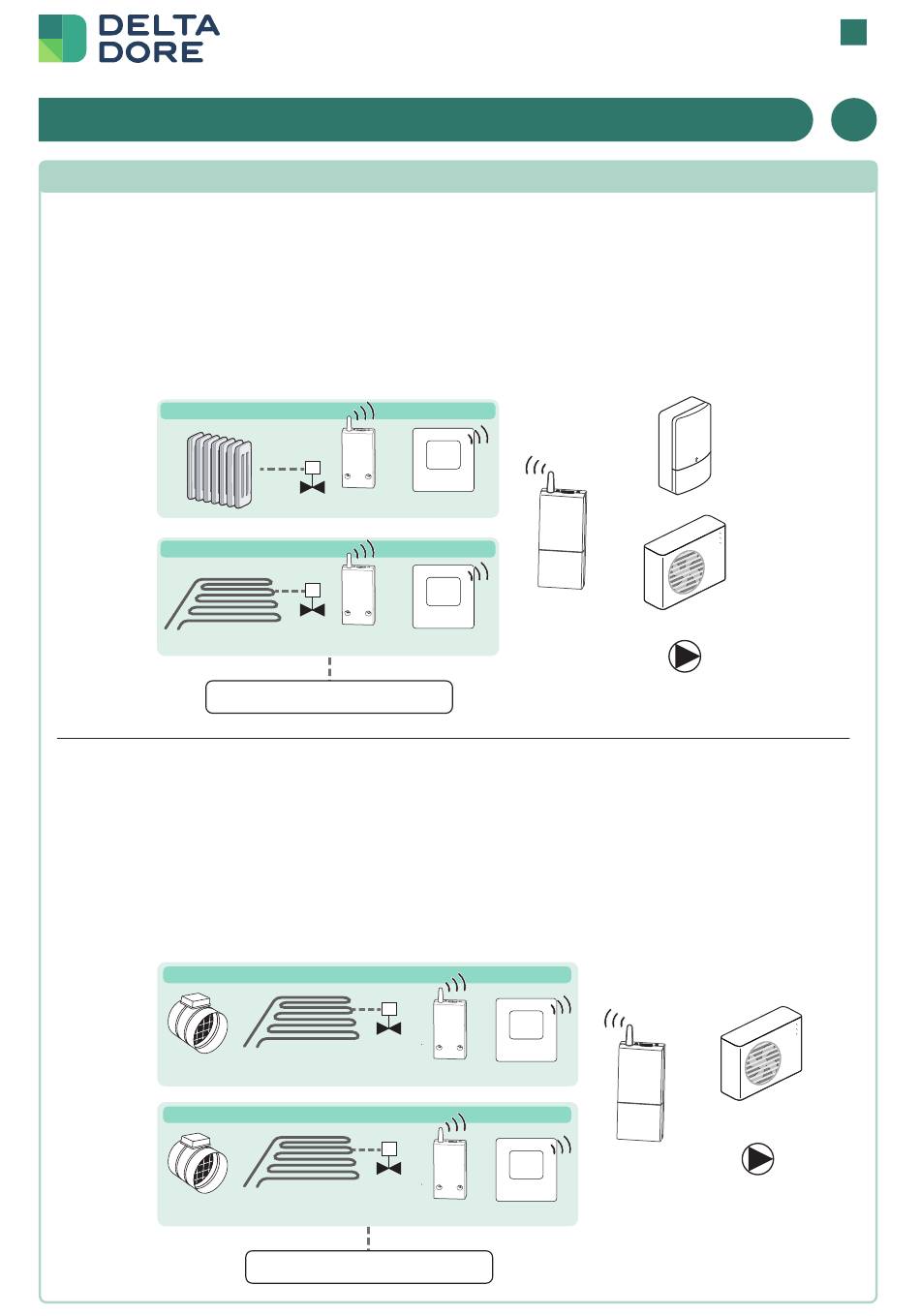

Operation of the RF 6420 receiver
General On/Off control receiver (boiler and non-reversible heat pump) for multi-zone installation:
- Generator receives the Off command when no zone requires heating.
- Generator receives On command 1 minute after a heating request is issued for a zone.
- Short cycle protection management (configurable)
RF 6420 receivers are not compatible with zone receivers configured in on-off control mode.
Zone 1
Zone 2
Operation of the RF 6450 receiver
General On/Off and change-over control receiver (reversible heat pump) for multi-zone
installation:
- Reversible heat pump receives the Off command when no zone requires heating or air
conditioning.
- Generator receives On command 1 minute after a heating request is issued for a zone.
- Short cycle protection management (configurable)
RF 6450 receivers are not compatible with zone receivers configured in on-off control mode.
Zone 1
Zone 2
RF 6000 (+)
RF 6000 (+)
Additional zones
or
or
Additional zones
Transmitter
RF 6420
Transmitter
Transmitter
RF 6050 (+)
RF 6050 (+)
Transmitter
www.deltadore.com
or
or
and/or
RF 6450
EN
1
Advertisement
Related Manuals for DELTA DORE RF 6420
Summary of Contents for DELTA DORE RF 6420
- Page 1 - Generator receives On command 1 minute after a heating request is issued for a zone. - Short cycle protection management (configurable) RF 6420 receivers are not compatible with zone receivers configured in on-off control mode. Zone 1 RF 6000 (+)
- Page 2 Description Antenna Configuration button Relay status Mounting > 20 cm 1,50 m Connection RF 6420 Black Grey 230V~ 3 4 5 Brown Blue 230 V RF 6450 Thermostat input 5A - 230V~ 5A - 230V~ 230V~ 1 2 3 4 5...
-
Page 3: Short-Cycle Protection
Pairing of RF 6420 and RF 6450 receivers with the RF 6000 (+) or RF 6050 (+) RF 6000 (+) RF 6420 or RF 6450 RF 6000 (+) RF 6420 RF 6050 (+) RF 6050 (+) or RF 6450 230V~ 50 Hz >3s... - Page 4 > 6s ......... RF 6420 or RF 6450 Ê Press the receiver button for 6 Ë The LED produces a series of flashes, Ì Confirm your seconds until the red LED is on after which you can press the button choice by and steady.
- Page 5 Deletion of pairing from the zone receivers >10s ....RF 6420 or RF 6450 RF 6420 or RF 6450 Ê Press and Hold the button Ë Make sure that the receiver of the receiver (RF6420 or RF6450) for ~10 LED is no longer flashing.
- Page 6 RF 6420 RF 6450 230 V~, 50/60 Hz 1.2 W max 230 V~, 50/60 Hz 1.8 W max X3D wireless remote control device: 868.7 Õ 869.2 MHz / Õ 300 m Max. wireless power < 10 mW / Category 2 receiver Type 1 C action / Rated impulse withstand voltage: 2500 V Ball test temperature: 75°C...
