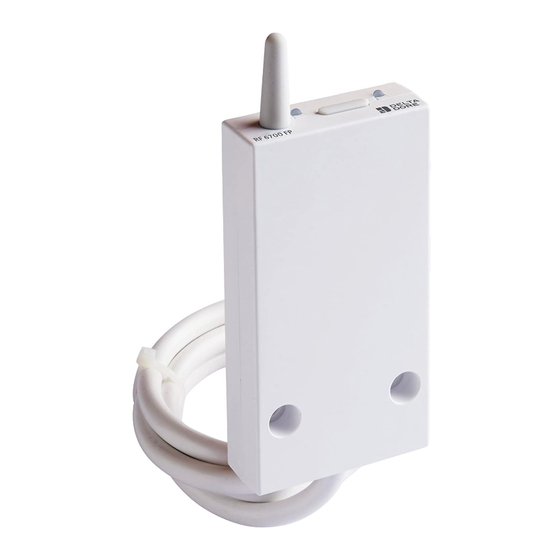

RF 6700 FP
www.deltadore.com
Contents
1.
Installing the receiver .................................................................................................. 2
1.1
Location ...................................................................................................................................2
1.2 Mounting / Connection ......................................................................................................2
2.
Associating the receiver to the transmitter ............................................................ 3
3.
Associating with the Tydom app .............................................................................. 3
4. Associating with a door/window magnetic contact ............................................ 3
5.
Troubleshooting ............................................................................................................ 4
Deleting associations from the receiver ..............................................................................4
6.
Technical characteristics ........................................................................................... 4
1.
Operation with a load-shedder ................................................................................. 5
2.
LED switch off mode .................................................................................................... 5
3.
Troubleshooting ............................................................................................................ 6
What the receiver LEDs mean ................................................................................................6
Installation and User
Guides
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RF 6700 FP and is the answer not in the manual?

Questions and answers

Related Manuals for DELTA DORE RF 6700 FP

Summary of Contents for DELTA DORE RF 6700 FP

  • Page 1: Table Of Contents

    Installation and User Guides RF 6700 FP www.deltadore.com Contents Installation Installing the receiver ....................2 Location ...........................2 1.2 Mounting / Connection ......................2 Associating the receiver to the transmitter ............3 Associating with the Tydom app ................3 4. Associating with a door/window magnetic contact ..........3 Troubleshooting ......................

  • Page 2: Installation

    INSTALLATION 1. Installing the receiver 1.1 Location mode mode mode The antenna of the receiver must be clear of any mode ~1,50 m metallic surface. 230V~ 50 Hz 1.2 Mounting / Connection ❶ First of all, switch off the power to your >...

  • Page 3: Associating The Receiver To The Transmitter

    2. Associating the receiver to the transmitter Example TYBOX 5101 or STI 2000 ❶ ❷ >3s ❸ >3s mode mode mode mode mode mode ..mode ..>3s >3s ❷ Confirm on the transmitter in ❸ Make sure that the receiver LED The green LED light on the receiver flashes rapidly, indicating that it has question: refer to the user guide.

  • Page 4: Troubleshooting

    : If you hold down the button for 30 seconds, the LED flashes quickly 3 times. The receiver is fully reset (back to factory settings). 6. Technical characteristics RF 6700 FP receiver - Power supply 230 V~ +/-10%, 50 Hz - Consumption: 0.4 W •...

  • Page 5: Use

    IMPORTANT: The radiator must be in automatic mode (AUTO, PROG, , ...), with its Comfort temperature set to the maximum. 1. Operation with a load-shedder If a load-shedder is connected to the receiver, the heating will switch to Off during load-shedding requests. When load-shedding is in progress, the green LED on the receiver flashes.

  • Page 6: Troubleshooting

    3. Troubleshooting What the receiver LEDs mean Signal type Diagnosis/Solutions The green light is constantly Power supply is on. The red light is constantly The receiver is requesting heating (pilot wire output = Comfort) The red LED is slowly The receiver is in association mode. flashing Please refer to the “Associating the receiver(s) with the transmitter”...
