DELTA DORE RF 6050 Installation Manual

DELTA DORE RF 6050 Installation Manual

Advertisement

RF 6050
Notice d'installation
FR
Installation guide
EN
www.deltadore.com
1

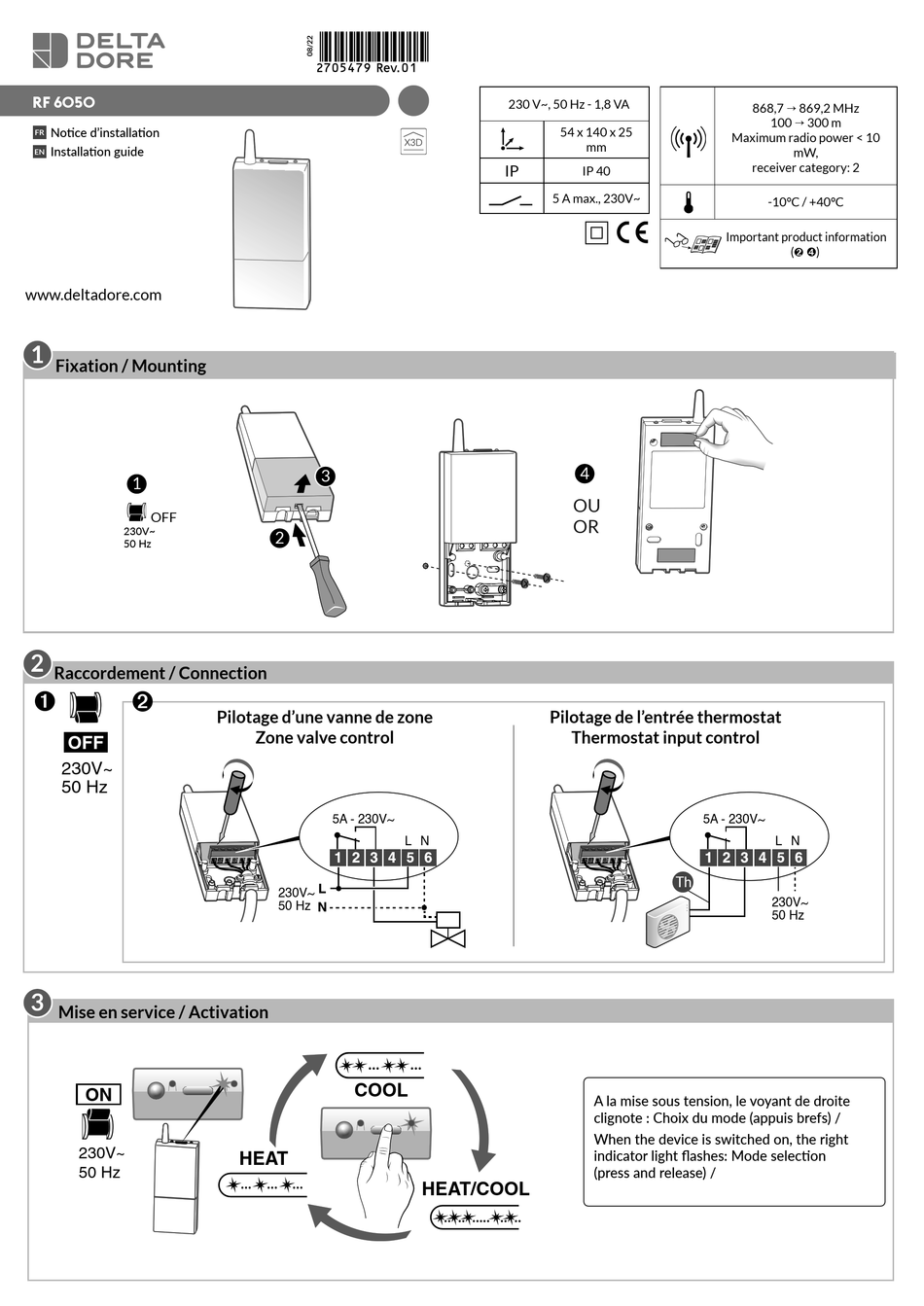

Fixation / Mounting

1
OFF
230V~
50 Hz
2

Raccordement / Connection

Ê
Ë
OFF
230V~
50 Hz
3

Mise en service / Activation

ON
230V~
50 Hz
3
2
Pilotage d'une vanne de zone
Zone valve control
5A - 230V~
230V~
50 Hz
...
COOL
HEAT
... ... ...
230 V~, 50 Hz - 1,8 VA
54 x 140 x 25
IP
5 A max., 230V~
OU
OR
Pilotage de l'entrée thermostat
Thermostat input control
L N
...
HEAT/COOL
.. .. ..... .. ..
868,7 Õ 869,2 MHz
Maximum radio power < 10
mm
receiver category: 2
IP 40
Important product information
4
5A - 230V~
Th
A la mise sous tension, le voyant de droite
clignote : Choix du mode (appuis brefs) /
When the device is switched on, the right
indicator light fl ashes: Mode selecti on
(press and release) /
100 Õ 300 m
mW,
-10°C / +40°C
(Ë Í)
L N
230V~
50 Hz
