DELTA DORE RF 6620 Instructions

16 amp receiver

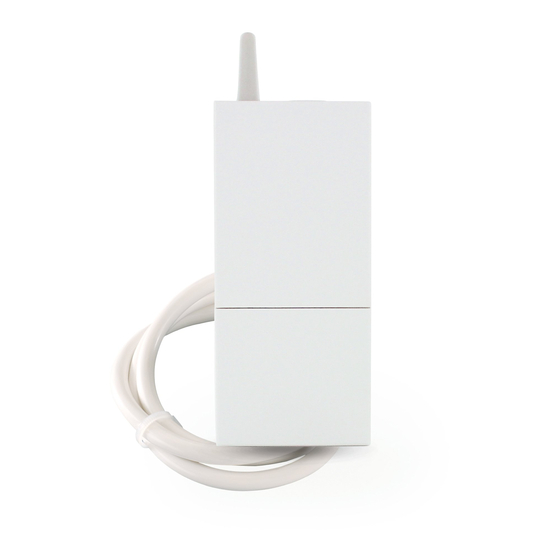

Instructions for RF 6620 16 Amp Receiver

As it comes precabled, from left to right:

1 – Live

2 – Neutral

3 – Switched Live out

X3D – X2D Mode

The receiver comes in the X3D mode which will work with the TYBOX 5101 and the TYDOM 1.0

straight away.

If you then want to use the receiver in the X2D mode, you need to change it within the first 4

seconds of turning the power on. Press the button 2 times within the first 4 seconds so that the LED

light flashes twice, indicating it's in the X2D mode.

If it still flashes 3 times (X3D mode), switch off the installation and start again.

If you need to change it from X2D mode to X3D mode, turn on the power to the installation. Press

the button 3 times within the first 4 seconds so that the LED light flashes thrice, indicating it's in the

X3D mode.
