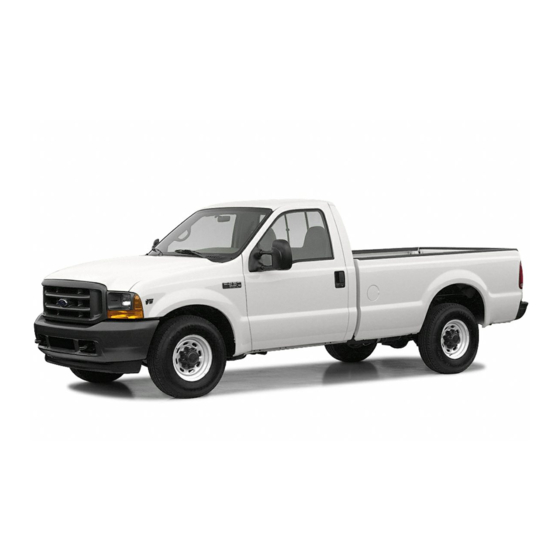

Ford F-Super Duty 550 2003 Workshop Manual

2003 F-Super Duty 250-550/Excursion Workshop Manual
SECTION 303-01D: Engine — 6.0L Diesel

INSTALLATION

Printable View (1982 KB)
Engine
Special Tool(s)
Diesel Engine Lifting Bracket
(D83T-6000-B) 303-D043
Heavy Duty Floor Crane
014-00071
Adapter for 303-D043
303-D043-02
Adapter for 303-D043
303-D043-01
Wrench, Fan Clutch Nut
303-591
Material
Item
SAE 15W-40 Super Duty Motor Oil
XO-15W40-QSD or equivalent
Motorcraft Premium Gold Engine Coolant
VC-7-A (in California, Oregon and New Mexico VC-7-B, in Canada CVC-
7-A) or equivalent (yellow color)
R-134a Refrigerant
YN-19
Installation
All vehicles
1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to
2. Raise the engine high enough to clear the No. 1 crossmember, then position the engine into the vehicle.
Vehicles with automatic transmission
3. Align the torque converter studs with the holes in the engine flywheel, then lower the engine onto the engine mount towers.
Vehicles with manual transmission
4. Lower the engine onto the engine mount towers.
All vehicles
5. Remove the Heavy Duty Floor Crane and the Diesel Engine Lifting Bracket.
Vehicles with automatic transmission
6. Remove the transmission jack.
http://www.fordtechservice.dealerconnection.com/pubs/content/~WS3O/~MUS~LEN/20/S3...
Specification
WSS-M2C171-
C
WSS-M97B51-
A1
WSH-M17B19-
A
Section 100-02.
2003 F-Super Duty 250-550/Excursion Workshop Manual
Procedure revision date: 04/07/2005
Page 1 of 9
