4. Pick up the Core-32 in your other hand. Orient the cards with their connector sides facing
each other and align the connectors at the top of each card. Firmly press the cards
together until they connect fully. The holes on the edges of the Core-32 card should be
aligned with the standoffs on the PC-90 card.
5. Once the cards are mated, place the assembly, with the Core-32 card on top, onto the
Core-32 anti-static bag. Use the four screws provided to attach the PC-90 to the Core-32
card. Do not overtighten the screws as you may damage the boards.
Attach the PCI Extender
The extender provides support for cards installed horizontally and prevents boards from
touching one another and shorting. To attach the extender:
1. Holding the Core-32 assembly by its edges, align the holes of the board and the
extender.

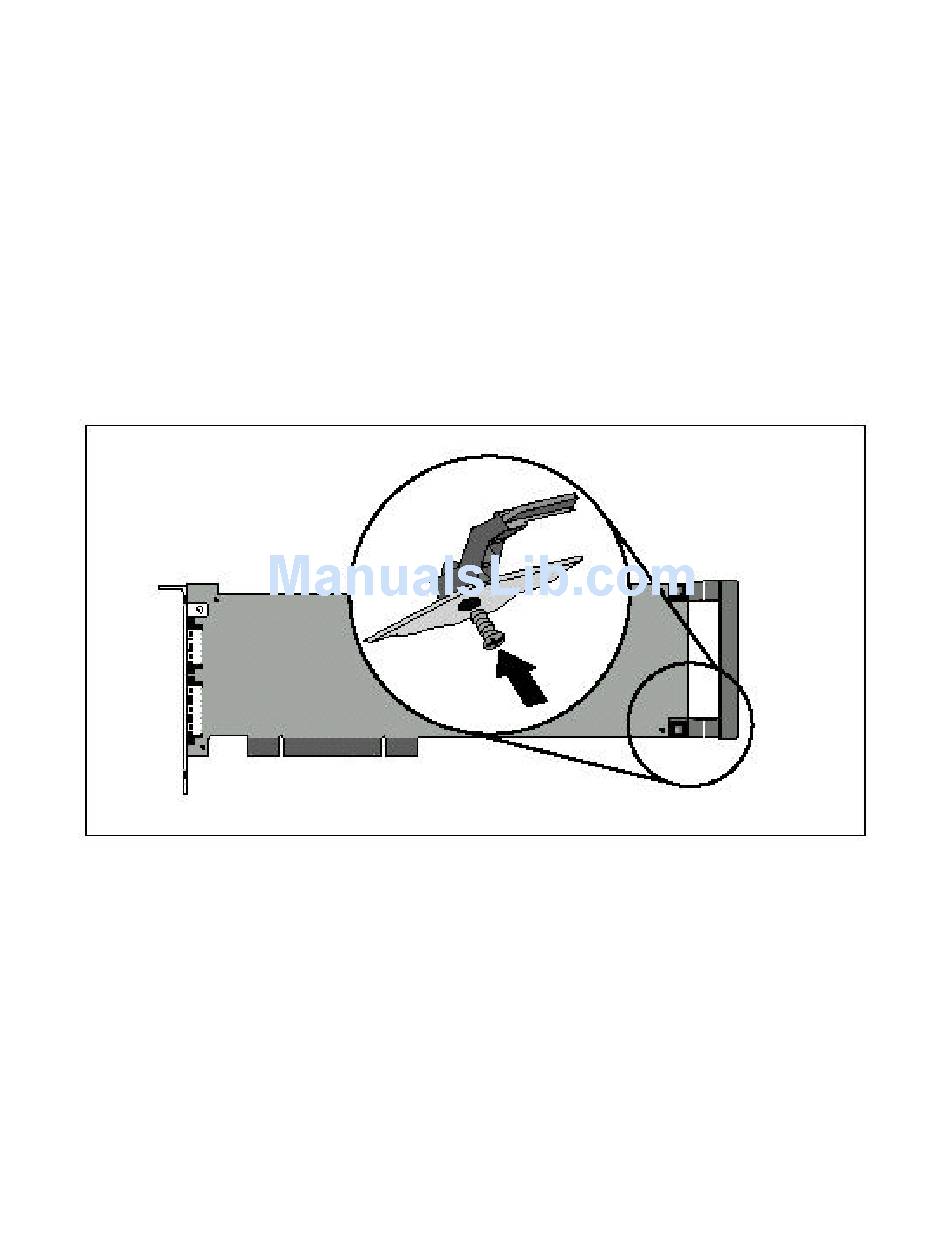

2. Insert two screws (provided) from the back of the Core-32 card as shown. Do not
overtighten the screws , as you may damage the Core-32 card.
Install the Core-32/PC-90 assembly
The Core-32 System card must be installed in a full-size PCI slot which is a bus master slot.
Refer to your computer owner's manual to determine which slots are available as bus
masters. (On some older motherboards, the PCI slot next to the ISA bus connector [the
PCI/ISA/ shared slot] in not a PCI bus master slot).
1. Touch the computer power supply case to discharge any personal static electricity.
2. Pick up the Core-32/PC-90 assembly by the top of the metal bracket and the top of the
other end of the card.
3. Align the card assembly over the slot you've chosen and insert it.
4. Place one hand along the upper edge of the card and push down firmly until the card is
fully seated in the slot. Do not use excessive force.
5. Once the card is fully seated, attach the Core-32 bracket to the computer chassis with the
screw provided with your computer. If you are standing the computer up, check to see
5.
Lexicon Studio User Guide Addendum
