Thank you for your purchase of a Lexicon Studio System. The document you are reading is
very important, because it contains all of the late-breaking information about Lexicon Studio
that either did not make it into the printed manual and pdf manual, or were information about
features that were altered and improved prior to release. The information in this document
supersedes all similar information within the Lexicon Studio User Guide. Also, remember
that our Website is updated often, and you will always be able to find the latest information
there. Thanks again for purchasing a Lexicon. Without you, we could never be...
S Y S T E M R E Q U I R E M E N T S . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
V
...................................................................................................................................2
. IDE................................................................................................................................................3
I I . I N S T A L L A T I O N . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
................................................................................................................................................3
I I I . C O N T R O L P A N E L S . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
V. PC-90 PRESET DESCRIPTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
VI. APPLICATION NOTES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 9
The Def.all file.........................................................................................................................................19
The Templates..........................................................................................................................................19
.................................................................................................................................................19
Cubase Record Settings..............................................................................................................................19
Analog I/O..............................................................................................................................................22
S/PDIF Digital I/O...................................................................................................................................22
ADAT Digital I/O.....................................................................................................................................22
...................................................................................................................................................22
...........................................................................................................................................24
VI. CONTACTING US . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 5
Table of Contents
..........................................................................................................................2
...............................................................................................................................4
................................................................................................................................6
........................................................................................................................9
.........................................................................................................................14

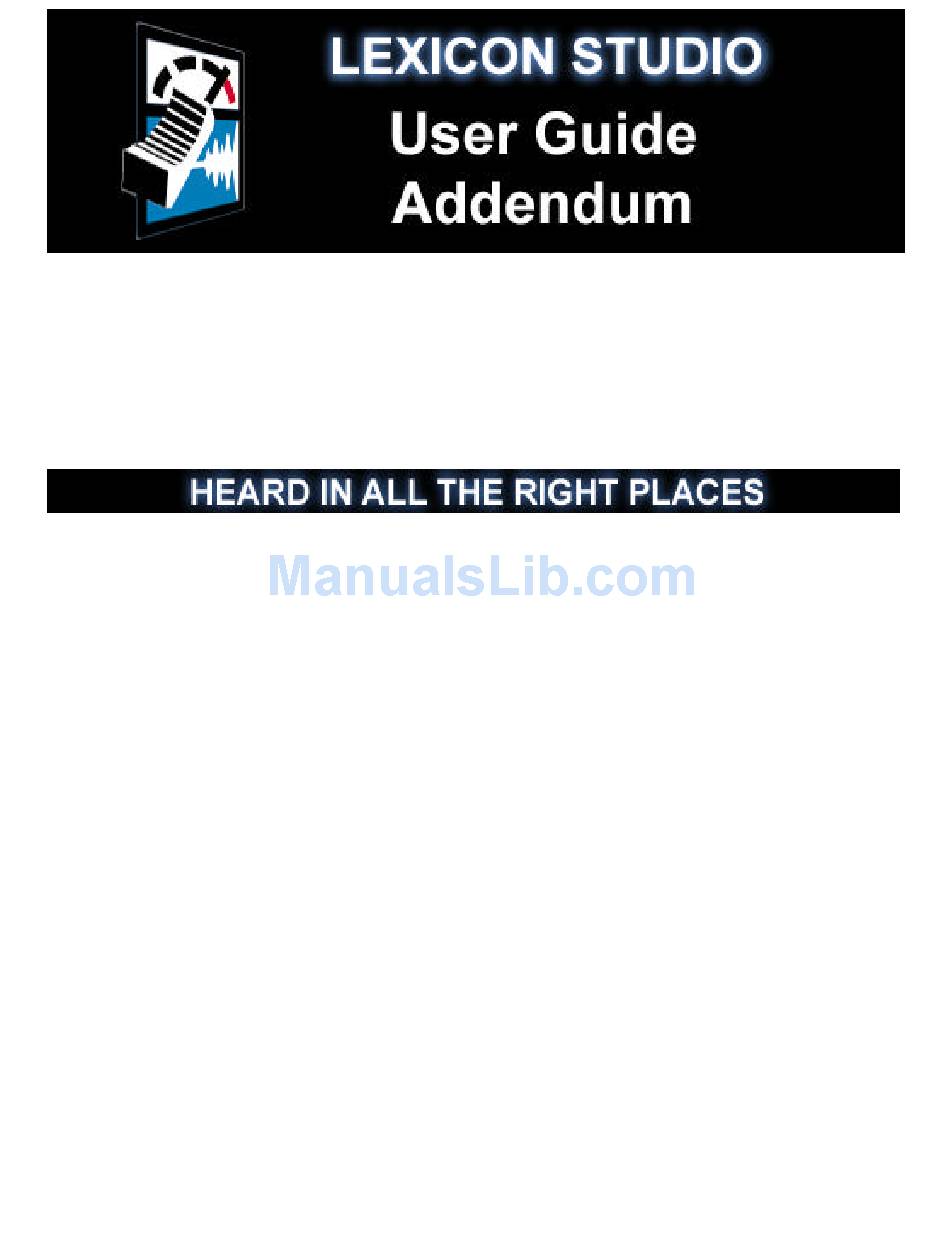

Lexicon Studio User Guide Addendum
1.
Advertisement
Table of Contents
Related Manuals for Lexicon STUDIO - ADDENDUM
Summary of Contents for Lexicon STUDIO - ADDENDUM
-
Page 1: Table Of Contents
Thank you for your purchase of a Lexicon Studio System. The document you are reading is very important, because it contains all of the late-breaking information about Lexicon Studio that either did not make it into the printed manual and pdf manual, or were information about features that were altered and improved prior to release. -
Page 2: System Requirements
Versions of Windows Your printed manual contains out-of-date information regarding the compatibility of Lexicon Studio with Windows 95. Lexicon Studio will work with any version of Windows 95 from Windows 95 V.0 (the first release of Windows 95) or later. -
Page 3: Scsi Vs. Ide
Lexicon Studio works with third party software (as with Steinberg Cubase VST). You should complete installation of this software prior to installing the hardware and software for Lexicon Studio. Refer to your audio software user manual on how to accomplish this. -
Page 4: Hardware Installation
Setup 1. Put on the anti-static wrist strap. 2. Place the foam from your Lexicon Studio package on top of a work surface next to your computer. (Any piece of static-safe foam with similar dimensions to the Core-32 card can be used). -
Page 5: Contacting
Do not use excessive force. 5. Once the card is fully seated, attach the Core-32 bracket to the computer chassis with the screw provided with your computer. If you are standing the computer up, check to see Lexicon Studio User Guide Addendum... -
Page 6: Software Installation
Connect the LDI-12T Interface to Audio Sources Cables/Connections 1. Use only the proprietary Lexicon cable (provided) to connect the Core-32 card to the LDI-12T Interface. 2. With both the computer and the LDI-12T powered down, attach the cable between the lower connector on the back of the Core-32 card and the Computer port on the LDI-12T rear panel. - Page 7 LxStudio.ini C:\Windows Install the PC-90 Software for Windows 95 1. Insert Lexicon Studio Software Disk 1: PC-90 Plug-Ins. 2. Open the disk and double-click on Setup.exe to launch the Installer. 3. Click Next > at the InstallShield Welcome screen. 4. Make certain that the installer is directed toward the desired plug-in folder (example: C:\..\Cubase Audio VST\vstplugins) and click Next >.
-
Page 8: I I I . C O N T R O L P A N E L S
If your computer system is fairly new (Pentium II, 266 MHz or higher), you should engage Turbo Select to get optimum performance out of your Lexicon Studio. The default setting for Turbo Select is off. Off is the recommended setting for Pentium I 200 mHz machines or slower. -
Page 9: Preset Descriptions
1 Large Hall Algorithm: Chamber A classic Lexicon reverb preset. The hall size is large, with a gentle bloom in the reverberation envelope. The first set of pre-echoes are set to 14 and 20 ms, but are turned off. Turn up the L RefLvl and R RefLvl to add early reflections. - Page 10 A mid-sized hall with most of its activity in the lower frequencies. A very deep and dark reverb. 18 Slap Hall Algorithm: Concert Hall This preset uses the relationships that the parameters have with one another to create a subtle delayed slap effect with no delay parameters! Lexicon Studio User Guide Addendum...
- Page 11 A natural reverb for live settings. Smooth and subtle. Perfect for anything you put through it. 29 Slap Room Algorithm: Room A natural room with a subtle, yet unnatural slap back in the reverb tail. Lexicon Studio User Guide Addendum...
- Page 12 A large, ambient space. Very spacious and breathy on dialog. 40 Phone Booth Algorithm: Ambience A tight environment that is similar to the Iso Booth preset, but a bit more reflective since it’s made out of glass. Lexicon Studio User Guide Addendum...
- Page 13 Will create the wild sound of a flipped tape reverb! Your source will become 800 ms late so you may need to adjust the placement of the recorded track so that it lines up with your other tracks again. Lexicon Studio User Guide Addendum...
-
Page 14: Bank2: Applications
Algorithm: Chamber Tuned to add just enough reverb to the snare punch within a mix. 8 Oil Drum Algorithm: Chamber Emulates the reverberant, metallic sound of an oil can. Try on kick drums and deep toms. Lexicon Studio User Guide Addendum... - Page 15 An enormous, well-tuned hall for all sorts of guitars. Try on acoustic guitars, both nylon and steel strings. Works well for wailing solo guitars as well. 19 Concerto Algorithm: Concert Hall Useful for string sections, quartets and string solos. Lexicon Studio User Guide Addendum...
- Page 16 A fairly large room with most of the low end taken out of the reverb. Useful on all types of guitars and it won’t muddy the original source. 30 Organ Room Algorithm: Room A nice reverb for rotary sounds. Lexicon Studio User Guide Addendum...
- Page 17 Adds exceptional depth to acoustic guitars, both nylon and steel strings. Also great on crunching electric guitar chords. 40 Keys Ambience Algorithm: Ambience An ambience subtle enough for acoustic piano, but brash enough for some of the wilder synth sounds. Nice on church organs too. Lexicon Studio User Guide Addendum...
- Page 18 A gentle bloom gives the sensation that this is a hall. Only at the reverb tail does it show its true colors. A nice unnatural reverb for stringed instruments, horns, or even a full orchestra. Lexicon Studio User Guide Addendum...
-
Page 19: Application Notes
The Def.all file Included with your installation of Lexicon Studio is a file called Def.all. This file is located in a folder called ‘IDS’ the installer creates at the root level of your C: drive. This file can be used by Cubase to set the program to “custom”... - Page 20 Audio Performance Within the Lexicon Studio def.all file included in your install, 16 channels have been set up as a default number of channels. This can be increased or decreased depending upon the job. The Memory per Channel setting recommended by Lexicon is 768 kB per channel.
- Page 21 Input Button on the mixer page channel strip. 4. Highlight the desired track for input on within the Arrange window and click the Input Button to enable monitoring of the selected input signal. Lexicon Studio User Guide Addendum...
-
Page 22: Analog I/O
ADATSYNC 12T selection is reserved for expanded features in an upcoming software release. Timecode To use timecode within Lexicon Studio and Cubase, the following settings within their respective areas are required: Core-32 Timecode Settings: 1. Connect a timecode source to your Timecode Input on the front panel of the LDI-12T. - Page 23 1. Go to the Options menu and select Synchronization. 2. Select MIDI Timecode as your Timecode Base. 3. Select Lexicon MTC as your 'From Input' sync source. 4. Select the correct frame rate (if in doubt, remember the Core-32 Timecode Control Panel will auto-detect the frame rate and display it for you).
-
Page 24: Routing
5. Lastly, make sure the channel of the audio you wish to process is sending from AuxSend 1 into the PC-90. You now have created a cascade reverb within PC-90. This will give you immense flexibility when creating your own super-reverbs. Lexicon Studio User Guide Addendum... - Page 25 VI. Contacting Us The Lexicon Website contains all of the latest information regarding Lexicon Studio, and all of Lexicon’s audio products. Please use this site to obtain the latest information for Studio regarding compatibility, customer service, software updates, product announcements, and third party support.
