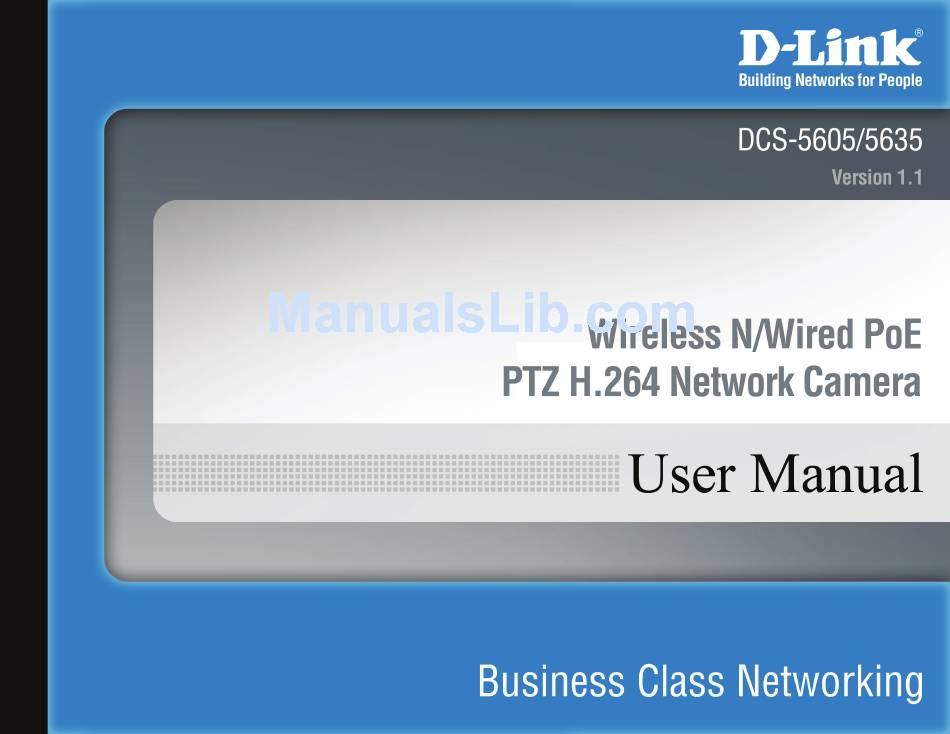

D-Link DCS-5605 User Manual

Wireless n/wired poe ptz h.264 network camera
Hide thumbs Also See for DCS-5605:

Advertisement

Quick Links

Advertisement

Table of Contents
loading

Summary of Contents for D-Link DCS-5605

  • Page 2: Table Of Contents

    Motion Detection ............46 Frequently Asked Questions..........74 Drawing Mode ............47 How to Ping Your IP Address ........77 Motion Detection Setup Wizard......48 Using & Configuring 3G Compatible Cell Phones ....78 Time and Date .............. 52 D-Link DCS-5605/DCS-5635 User Manual...
  • Page 3 Play from RealPlayer ..........79 Play from PVPlayer ..........84 Reset and Restore ...............86 Enabling UPnP for Windows XP ........87 ™ ® Technical Specifications............91 Contacting Technical Support ..........93 Warranty ..................94 Registration ................97 D-Link DCS-5605/DCS-5635 User Manual...
  • Page 4: Package Contents

    2 Wireless Antennas (DCS-5635 only) Note: Using a power supply with a different voltage than the one included with the DCS-5605/DCS-5635 will cause damage and void the warranty for this product. If any of the above items are missing, please contact your reseller.
  • Page 5: Introduction

    EASY TO INSTALL AND SIMPLE TO MANAGE The DCS-5605/DCS-5635 can be mounted on a flat surface or with a metal wall mount. You can also set up automated e-mail alerts to be instantly informed of unusual activities. In addition, this network camera supports the Universal Plug-n-Play feature, which allows computers running on Windows ®...
  • Page 6 Nothing herein represents a warranty or representation that the D-Link product provided herein is suitable for the end-user’s intended use under the applicable laws of his or her state. D-Link disclaims any liability whatsoever for any end-user use of the D-Link product, which fails to comply with applicable state, local, or federal laws.
  • Page 7: Hardware Overview

    Connect an Ethernet cable to a router, switch, or computer. The Ethernet port can also be used to Ethernet Port power the camera using a PoE switch (DCS-5605 only). The camera provides a terminal block with two pairs of connectors situated on the back panel. One pair is for input and the other is for output.
  • Page 8: Front

    The Link LED will illuminate green once a connection has been established. Microphone The built-in microphone can be used capture audio from sources nearby the camera. Power LED The Power LED will illuminate red when the camera is receiving power. D-Link DCS-5605/DCS-5635 User Manual...
  • Page 9: Camera Installation

    Camera Installation It is recommended to connect the camera to your computer and configure it before mounting. Step 1 - Connect an Ethernet cable to the network cable connector located on the DCS-5605/DCS-5635’s back panel and attach it to the network.
  • Page 10: Installation Wizard

    Installation Wizard Step 3 - Insert the D-Link CD. When the autorun screen appears, click Installation Wizard. Step 4 - The Welcome screen will appear. Click Next to continue. D-Link DCS-5605/DCS-5635 User Manual...
  • Page 11 Step 5 - Click Yes to the license agreement to continue. Step 6 - If you do not want to install the wizard into the default location, click Browse and select a new folder. Click Next to continue. D-Link DCS-5605/DCS-5635 User Manual...
  • Page 12 Step 7 - Click Finish to complete the installation. Uncheck the I would like to launch Setup Wizard SE box if you do not want to run the wizard. Step 8 - Now, click on ffdshow from the autorun screen. This will install the proper codecs that will allow you to playback video taken by the DCS-5605/5635. D-Link DCS-5605/DCS-5635 User Manual...
  • Page 13 Step 9 - Click I Agree to the license agreement to continue. Step 10 - Select your language from the drop-down menu and then click OK. D-Link DCS-5605/DCS-5635 User Manual...
  • Page 14 Step 11 - Click Next to continue. Step 12 - Select the installation location and then click Next. D-Link DCS-5605/DCS-5635 User Manual...
  • Page 15 Step 13 - Select the components you want to install and then click Next to continue. Step 14 - Select the Start Menu folder and then click Next. D-Link DCS-5605/DCS-5635 User Manual...
  • Page 16 Step 15 - Select the additional tasks you want to perform and then click Next to continue. Step 16 - Select the speaker setup on your computer and then click Next. D-Link DCS-5605/DCS-5635 User Manual...
  • Page 17 Step 17 - Click Install to continue. Step 18 - Click Finish. D-Link DCS-5605/DCS-5635 User Manual...
  • Page 18 Step 19 - Click on the D-Link Setup Wizard SE icon that was created in your Windows Start menu. Step 20 - The main screen will appear. Your camera should be displayed in the list. If it does not, then click the Search button. If your camera does not appear, make sure the camera is connected to your computer correctly and is powered on.
  • Page 19 Step 22 - Click DHCP to allow your router or DHCP server assign the IP settings to the camera. If you want to manually assign the IP settings, click Static and enter the IP address, subnet mask, default gateway, and DNS servers. Click Next to continue. D-Link DCS-5605/DCS-5635 User Manual...
  • Page 20 Wireless Channel - If you select Infrastructure, select Auto since the wireless router or access point will select the channel automatically. Authentication - Select Open, Shared, WPA-PSK, or WPA2-PSK. Encryption - Depending on Authentication, select the type of encryption. Key - Enter the encryption key or passphrase. Click Next to continue. D-Link DCS-5605/DCS-5635 User Manual...
  • Page 21 Step 24 - A summary window will display your settings. Click Restart to finish the installation. Installation is complete. Please refer to page 25 for advanced features of this camera. D-Link DCS-5605/DCS-5635 User Manual...
  • Page 22: Mounting

    The holes will be covered but are perferated to be easily removed. Attach the plate to the camera before mounting. Turn the camera clockwise (to the right) until it stops. Read the directions on the next page to mount to a wall or the ceiling. D-Link DCS-5605/DCS-5635 User Manual...
  • Page 23 1. Use 3 screws to affix the metal mounting bracket to the ceiling. 2. Push the camera up onto the metal mounting bracket. D-Link DCS-5605/DCS-5635 User Manual...
  • Page 24 3. Rotate the base of the camera to lock it onto the bracket. 4. Install the final screw so that the camera cannot be removed without the use of a tool. D-Link DCS-5605/DCS-5635 User Manual...
  • Page 25: Using The Camera With A Router

    IP address to the camera automatically. Please refer to your router documentation for more information. After you have completed the setup of the DCS-5605/DCS-5635 outlined in the Quick Install Guide you will have an operating camera that has an assigned IP Address. Because you are using a router to share the Internet with one or more PCs, the IP Address assigned to the camera will be a local IP Address.
  • Page 26: Configuration

    Configuration This section will show you how to configure your new D-Link camera using the web-based configuration utility. To access the configuration utility, open a web-browser such as Internet Explorer and enter the IP address of the camera (192.168.0.1). If you get a Page Cannot be Displayed error, please refer to the Troubleshooting section for assistance.
  • Page 27: Live Video

    Live Video The image from the DCS-5605/DCS-5635 should be visible from the Live Video page on your computer monitor. Clicking on any part of the image will cause the camera to reposition itself so that the point will be the center of the image.
  • Page 28: Overview

    Select the speed at which the camera will tilt (1-10, 10 = fastest). SD Status: Displays the status of your Micro SD memory card. If you do not have a card inserted into the camera, it will display as Invalid. Language: Select your language from the drop-down menu. D-Link DCS-5605/DCS-5635 User Manual...
  • Page 29 Digital Output - Click to turn on digital output. Digital Zoom - This button toggles the zoom feature on and off. When zoom is active, you may left click to zoom in or right click to zoom out. D-Link DCS-5605/DCS-5635 User Manual...
  • Page 30: Setup

    Click to launch the Motion Detection wizard. You will be able to configure detection areas and where to send Setup Wizard: the images (Email/FTP/folder). Manual Motion Click to manually configure motion detection settings. Refer to the Setup > Motion Detection section. Detection Setup: D-Link DCS-5605/DCS-5635 User Manual...
  • Page 31: Internet Connection Setup Wizard

    Select DHCP Connection to allow a DHCP server (such as a router) to automatically assign the network settings to the camera. Select Static IP Address to manually enter the camera’s network settings. Click Next to continue. D-Link DCS-5605/DCS-5635 User Manual...
  • Page 32 Verify Password - Enter your password again used to connect to the DDNS server. Timeout - You can setup how often the camera notifies the DDNS server of its current global IP address. By default this is 576 hours. Click Next to continue. D-Link DCS-5605/DCS-5635 User Manual...
  • Page 33 Offset - Select the time offset, if your location observes daylight saving time. Daylight Savings Dates - Sets the dates and time that Daylight Savings begins and ends. Click Next to continue. D-Link DCS-5605/DCS-5635 User Manual...
  • Page 34 Click Apply to finish. D-Link DCS-5605/DCS-5635 User Manual...
  • Page 35: Network Setup

    Network Setup The Network Setup page will allow you to set the IP address, network settings, UPnP, and port information for your camera. D-Link DCS-5605/DCS-5635 User Manual...
  • Page 36: Lan Settings

    This port is used to view the camera from the Internet. External RTSP Enter the RTSP port. The default port is 554. RTSP (Real Time Streaming Protocol) is used for viewing video from a Port: RTSP client. Clients are available for your computer or mobile phone. D-Link DCS-5605/DCS-5635 User Manual...
  • Page 37: Port Settings

    RTSP client. Clients are available for your computer or mobile phone. User Authentication: Check the User Authentication box to force user to enter a user name and password. Save Settings: Click the Save Settings button to save and activate your changes. D-Link DCS-5605/DCS-5635 User Manual...
  • Page 38: Https Settings

    HTTPS settings Enable HTTPS This is default enabled. HTTPS only Select this will redirect all the HTTP connection to HTTPS pages automatically. D-Link DCS-5605/DCS-5635 User Manual...
  • Page 39: Wireless Setup (Dcs-5635 Only)

    Some of the fields below will automatically be populated with the network’s settings. SSID: If you selected a network from the drop-down menu, the SSID, or name of the wireless network, will be displayed. If you are manually entering the wireless settings, enter the SSID of your network. D-Link DCS-5605/DCS-5635 User Manual...
  • Page 40 To access the network, the user must know the security passphrase used on the network and enter it in the Key field. The signal strength will be display. The value will be between 1 and 100, 100 being the best/strongest signal. D-Link DCS-5605/DCS-5635 User Manual...
  • Page 41: Setting Up A Wireless Connection With Wps

    After WPS is successfully activated, the WPS LED on your camera will stop flashing, and will light up solid blue, then reboot. Note: On some routers/access points, you may need to enter the web interface to activate WPS. Consult your product’s user manual for further assistance. D-Link DCS-5605/DCS-5635 User Manual...
  • Page 42: Dynamic Ddns

    User Name: Enter your DDNS user name. Password/Verify: Enter your DDNS password and again to verify. Timeout: Enter the time (in hours) before the camera will disconnect from the DDNS server. Status: Displays the current status. D-Link DCS-5605/DCS-5635 User Manual...
  • Page 43: Image Setup

    Select 50Hz or 60Hz. Flip: Vertically rotate the video 180 Mirror: Horizontally rotate the video 180 . Recommended to select if the camera is installed upside down on the ceiling. B/W: Change the video to black and white. D-Link DCS-5605/DCS-5635 User Manual...
  • Page 44 With the “On” option, the distribution of brightness values is automatically adapted to the recording scenario. De-interlace De-interlace - The De-interlacing option helps to improve the image quality. It reduces the effects of interlacing. Click this checkbox to set “de-interlacing on” D-Link DCS-5605/DCS-5635 User Manual...
  • Page 45: Audio And Video

    Select H264, JPEG, or MPEG4 encoding. Profile 4 will always be MPEG4. Resolution: Select the resolution (size of the viewing area on the screen). FPS: Select the FPS (Frames per Second). 30 is the maximum (best quality). D-Link DCS-5605/DCS-5635 User Manual...
  • Page 46 After making any changes, click the Save Settings button to save your changes, or click the Don’t Save Settings button to discard your changes. Save Settings: Click the Save Settings button to save and activate your settings. D-Link DCS-5605/DCS-5635 User Manual...
  • Page 47: Motion Detection

    Check the box to enable motion detection. This will allow the camera to serve as a security device by recording Detection: only when motion is detected. Sensitivity: Specify how much movement is required to trigger the motion detection. Refer to the next page to set up the trigger area. D-Link DCS-5605/DCS-5635 User Manual...
  • Page 48: Drawing Mode

    Note: The motion notification will continue to blink as long as motion is detected. If no additional motion is detected, it will return to its original state after eight seconds. Motion No Motion D-Link DCS-5605/DCS-5635 User Manual...
  • Page 49: Motion Detection Setup Wizard

    Motion Detection Setup Wizard To run the Motion Detection Setup Wizard, log into the camera’s web-based configuration and click the Setup tab. Click the Motion Detection Setup Wizard button. Click Next to continue. D-Link DCS-5605/DCS-5635 User Manual...
  • Page 50 Sender E-mail The sender’s email address that appears Address: in the email alert (For example smith@isp. com). Notification will be sent to this email address if the e-mails failed to be delivered to the recipient email address. D-Link DCS-5605/DCS-5635 User Manual...
  • Page 51 The port of the FTP server. Most FTP servers are running at the default port (21). Interval: The time interval between each snapshot. Passive Mode: Some FTP servers allow clients to use passive mode when connecting to an FTP, which uses random ports for transfers. D-Link DCS-5605/DCS-5635 User Manual...
  • Page 52 Once you are finished entering the requested information, click Apply to finish the wizard. D-Link DCS-5605/DCS-5635 User Manual...
  • Page 53: Time And Date

    Set Day and Time Manually: Select to manually enter the date and time. Copy your Computer’s Time Click to synchronize the time and date with the computer you are currently logged into the camera with. settings: D-Link DCS-5605/DCS-5635 User Manual...
  • Page 54: Preset Position

    The Pan/Patrol Speed control applies only when using the Pan and Patrol buttons in the live video interface. Dwelling Time: Specify the number of seconds that the camera should remain fixed upon a specified preset position. D-Link DCS-5605/DCS-5635 User Manual...
  • Page 55: Patrol Position

    Select the step of camera Pan/Patrol movement between 1 and 5. Dwelling Time: This sets the duration of staying at the position. Patrol Schedule: “Patrol Schedule” allows the PTZ camera to perform the position tour by an hourly schedule. D-Link DCS-5605/DCS-5635 User Manual...
  • Page 56: Recording

    Recording Record to SD Card Record to Samba Drive Enable Recording: Check to enable the recording function. SD Card: Select to record to an inserted Micro SD memory card. D-Link DCS-5605/DCS-5635 User Manual...
  • Page 57 You can program recording to turn on and off at specific time each day. Continuous: Select this option to record video all the time (Samba only). Scheduled: Select this option to record video based on the scheduled period of time (Samba only). D-Link DCS-5605/DCS-5635 User Manual...
  • Page 58: Snapshot

    Snapshot D-Link DCS-5605/DCS-5635 User Manual...
  • Page 59 This is the email address that will receive all the captured images. Port: This is the port that your email SMTP service is running on. Default is 25. TLS/SSL: These two protocols (SSL is succeeded by TLS) are cryptographic protocols that provide secure communication on a network. D-Link DCS-5605/DCS-5635 User Manual...
  • Page 60 The port of the FTP server. Most FTP servers are running at the default port (21). Interval: The time interval between each snapshots. Passive Mode: Some FTP servers allow clients to use passive mode when connecting to an FTP, which uses random ports for transfers. D-Link DCS-5605/DCS-5635 User Manual...
  • Page 61: Sd Card

    Playback Recorded Video: If video files are stored on the SD card, click on the video folder and choose the video file you would like to view. Refresh: Reloads the file and folder information from the SD card. D-Link DCS-5605/DCS-5635 User Manual...
  • Page 62: Advanced

    Select if your camera is in a low-light area and you need to improve the video quality. Schedule Mode: Select to set a specific time range to enable Day mode. The camera will switch to Night mode when outside this time range. D-Link DCS-5605/DCS-5635 User Manual...
  • Page 63: Digital Output

    I/O Connector Definition for the Camera The DCS-5605/DCS-5635 provides a general I/O terminal block with one digital input and one relay switch for device control. Pin 1 and pin 2 can be connected to an external sensor and the state of voltage will be monitored from the initial state ‘LOW’. The relay switch of pin 3 and pin 4 can be used to turn on or off the external device.
  • Page 64: External Trigger Configuration

    To configure your camera to record when triggered by an external device, you must first set your SMTP or FTP settings in order to send snapshots to your email account or FTP server, or video to your Samba network drive or an inserted Micro SD memory card. D-Link DCS-5605/DCS-5635 User Manual...
  • Page 65 4 seconds for both, the camera will record 4 seconds before the trigger and then 4 seconds after the event has ended. Step 6 - Click Save Settings. Skip to page 65 to continue. D-Link DCS-5605/DCS-5635 User Manual...
  • Page 66 Step 4 - Under Send To, select either Email Address or FTP Server. Refer to pages 58-59 for more information on the individual fields. Step 5 - Click Save Settings. D-Link DCS-5605/DCS-5635 User Manual...
  • Page 67 When a motion is detected, the camera will trigger traditional alarming devices that connect to the system. D/I Signal 1: When triggering the digital input 1 device, the camera will trigger traditional alarming devices that connect to the system. D-Link DCS-5605/DCS-5635 User Manual...
  • Page 68: Maintenance

    Create user accounts. Enter a user name and then a password for that user. Click the Add button to add the user account. User List: All accounts (except for the admin account) will be listed. To remove the user account, select from the drop-down menu and click the Delete button. D-Link DCS-5605/DCS-5635 User Manual...
  • Page 69: Device/Pt Setting

    Select Off to turn off the LED lights on the camera. This is useful to hide the camera or give the illusion the camera is turned off. Calibrate the Device: Click the Calibrate the Device button to reset the home position to the default setting if the camera was moved by hand or an external force. D-Link DCS-5605/DCS-5635 User Manual...
  • Page 70: System

    OK and then click the Load Configuration button to apply the settings to the camera. Restore to Factory Defaults: Click the Restore Factory Defaults button to set the camera back to the factory default settings. Reboot Device: Click the Reboot Device button to restart the camera. D-Link DCS-5605/DCS-5635 User Manual...
  • Page 71: Firmware Upgrade

    Firmware Upgrade Your current firmware version and date will be displayed on your screen. You may go to the D-Link Support page to check for the latest firmware version available. Firmware Upgrade: To upgrade the firmware on your camera, please download and save the latest firmware version from the D-Link Support page to your local hard drive.
  • Page 72: Status

    Status Device Info This page displays all the details information about your device and network connection. D-Link DCS-5605/DCS-5635 User Manual...
  • Page 73: Log

    This page displays the log information of your camera. You can save the log to a .txt file to your hard drive by clicking the Download button. D-Link DCS-5605/DCS-5635 User Manual...
  • Page 74: Help

    Help D-Link DCS-5605/DCS-5635 User Manual...
  • Page 75: Appendix

    PC/Notebook over an Intranet or the Internet from a Web browser. 2. What is the maximum number of users that can be allowed to access DCS-5605/5635 simultaneously? The maximum number of users that can log onto the Internet Camera at the same time is 10. Please keep in mind the overall performance of the transmission speed will slow down when many users are logged on.
  • Page 76 10. Why am I unable to access the DCS-5605/5635 from a Web browser? If a router or firewall is used on the network, the correct ports for the DCS-5605/5635 may not be configured on the router or firewall. To correct the problem, you need to determine if the DCS-5605/5635 is behind a router or firewall and if the router or firewall is properly configured for the ports the DCS-5605/5635 is using.
  • Page 77 The configuration on the Internet Camera image display is incorrect. Through the Image Setup section of the Web management you need to adjust the image related parameters such as brightness, contrast, hue and power line frequency for fluorescent light. Please refer to the Image Setup section for detailed information. D-Link DCS-5605/DCS-5635 User Manual...
  • Page 78: How To Ping Your Ip Address

    Follow the step-by-step procedure below to utilize the PING command but first you must disconnect the Camera from the network. Click on Start > Run and type in CMD Type ping x.x.x.x, where x.x.x.x is the IP address of the Camera. The replies, as illustrated below, will help diagnose any connection problems. D-Link DCS-5605/DCS-5635 User Manual...
  • Page 79: Using & Configuring 3G Compatible Cell Phones

    Using & Configuring 3G Compatible Cell Phones To enable mobile device video streaming, you will need to configure profile 4 for mobile viewing (see below). D-Link DCS-5605/DCS-5635 User Manual...
  • Page 80: Play From Realplayer

    Play from RealPlayer The following steps are based on a Nokia 6630 cell phone. Step 1 - Press the Menu button and select Media. Step 2 - Select Open. Step 3 - Select RealPlayer. D-Link DCS-5605/DCS-5635 User Manual...
  • Page 81 Step 4 - Select Open. Step 5 - When RealPlayer opens, press Options. D-Link DCS-5605/DCS-5635 User Manual...
  • Page 82 Step 6 - Select Download. Step 7 - Select Video Clips. Note: 71.34.50.5 is the camera’s IP address in this sample. Step 8 - Press Options. D-Link DCS-5605/DCS-5635 User Manual...
  • Page 83 Step 9 - Select Navigation Options. Step 10 - Select Go to web address. Step 11 - Input your rtsp address. D-Link DCS-5605/DCS-5635 User Manual...
  • Page 84 Step 12 - Press Yes, and allow Connection and Loading of the streaming video. Step 13 - Enjoy streaming video on your cellphone. D-Link DCS-5605/DCS-5635 User Manual...
  • Page 85: Play From Pvplayer

    Play from PVPlayer The following steps are based on a Nokia 6630 cell phone. Step 1 - Press the Menu button and select PVPlayer. Step 2 - Select Open. Step 3 - Press the Options button. D-Link DCS-5605/DCS-5635 User Manual...
  • Page 86 Step 4 - Select Open. Step 5 - Input your rtsp address. Note: 71.34.50.5 is the camera’s IP address in this sample. Step 6 - Enjoy streaming video on your cellphone. D-Link DCS-5605/DCS-5635 User Manual...
  • Page 87: Reset And Restore

    There is a button hidden in the pinhole beside the Ethernet socket. It is used to reset the system or restore the factory default settings. Sometimes resetting the DCS-5605/DCS-5635 will return the system back to a normal state. If the system still has problems after reset,...
  • Page 88: Enabling Upnp ™ For Windows ® Xp

    UPnP is short for Universal Plug and Play, which is a networking architecture that provides compatibility among networking equipment, ™ software, and peripherals. The DCS-5605/DCS-5635 is a UPnP enabled Camera. If your operating system is UPnP enabled, the device ™...
  • Page 89 Step 3 - Click Add/Remove Windows Components. Step 4 - The following screen will appear. Click Add/Remove Windows Components, highlight Networking Services, and then click Details. Step 5 - Check the Universal Plug and Play box and then click D-Link DCS-5605/DCS-5635 User Manual...
  • Page 90 Step 6 - Click Next to continue. Step 7 - Please wait while Setup configures the components. Step 8 - Click Finish. D-Link DCS-5605/DCS-5635 User Manual...
  • Page 91 Step 9 - To view your DCS-5605/DCS-5635 Camera in an Internet browser, go to your Desktop and click My Network Places. Step 10 - The last three digits (146), represent the fourth octet of your Camera’s IP address (in this example, 198.168.0.146).
  • Page 92: Technical Specifications

    • Auto-select or Manual specified PROTOCOLS • IPv4, ARP, TCP, UDP, ICMP, DHCP Client, NTP Client POWER (D-Link), DNS Client, DDNS Client (D-Link), SMTP Client, • 12VDC/2A FTP Client, HTTP Server, Samba Client, PPPoE, UpnP Port Forwarding, RTP, RTSP, RTCP, 3GPP POWER CONSUMPTION •...
  • Page 93 • DCS-5635: 855g OPERATING TEMPERATURE • 0° to 40° (32° to 104°) STORAGE TEMPERATURE • -20° to 70° (-4° to 158°) OPERATING HUMIDITY • 20%-80% RH non-condensing CERTIFICATIONS • FCC • IC • CE • C-Tick D-Link DCS-5605/DCS-5635 User Manual...
  • Page 94: Contacting Technical Support

    • Hardware Revision (located on the label on the bottom of the Camera (e.g. rev A1)) • Serial Number (s/n number located on the label on the bottom of the Camera). You can find software updates and user documentation on the D-Link website as well as frequently asked questions and answers to technical issues.
  • Page 95: Warranty

    Hardware. Repaired or replacement hardware will be warranted for the remainder of the original Warranty Period or ninety (90) days, whichever is longer, and is subject to the same limitations and exclusions. If a material defect is incapable of correction, or if D-Link determines that it is not practical to repair or replace the defective Hardware, the actual price paid by the original purchaser for the defective Hardware will be refunded by D-Link upon return to D-Link of the defective Hardware.
  • Page 96 The customer must submit with the product as part of the claim a written description of the Hardware defect or Software nonconformance in sufficient detail to allow D-Link to confirm the same, along with proof of purchase of the product (such as a copy of the dated purchase invoice for the product) if the product is not registered.
  • Page 97 OR INTEGRATED WITH ANY PRODUCT RETURNED TO D-LINK FOR WARRANTY SERVICE) RESULTING FROM THE USE OF THE PRODUCT, RELATING TO WARRANTY SERVICE, OR ARISING OUT OF ANY BREACH OF THIS LIMITED WARRANTY, EVEN IF D-LINK HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
  • Page 98: Registration

    Registration Product registration is entirely voluntary and failure to complete or return this form will not diminish your warranty rights. Version 1.1 November 26, 2010 D-Link DCS-5605/DCS-5635 User Manual...
