Installation Guide
ProSecure™ Web/Email Security Threat Management Appliance STM150
Start Here
Follow these instructions for
setting up a gateway
configuration where a single
STM150 is installed between
your firewall and the LAN core
switch.

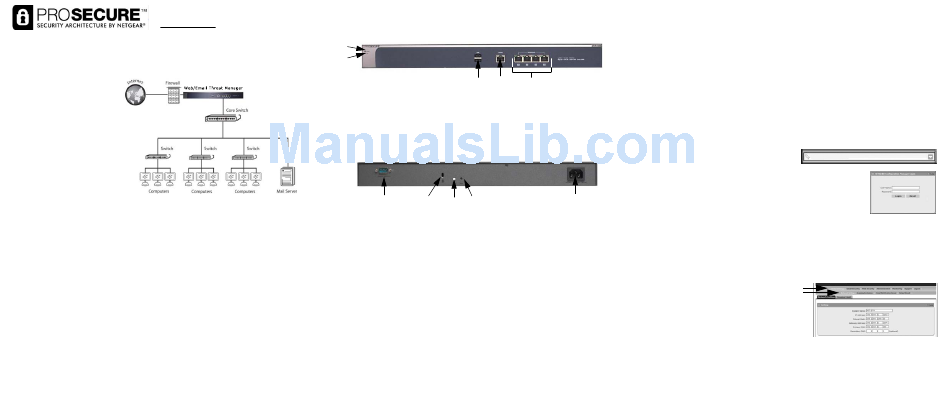

After completing these
installation steps, your network
will resemble this illustration.
For server group or segmented
LAN configurations, refer to the
Reference Manual.
You can download the
Reference Manual from the documentation link in the Web Support page of the product
user interface or from the ProSecure site at:
http://prosecure.netgear.com/resources/document-library.php
Before you begin, ensure you have the IP configuration parameters of your network
(available reserved IP address, subnet range, gateway, and DNS addresses).
Estimated completion time: 25 minutes.
Verify the Package Contents
Unpack the box and verify the contents:
• ProSecure Web/Email Security Threat Management Appliance STM150
• Depending on the model purchased, license registration card
• Rubber feet (4) with adhesive backing
• Rack mount brackets hardware
• Power cord
• Straight through Category 5 Ethernet Cable
• Installation Guide
Familiarize Yourself with the STM150
Take note of the connectors, status lights, and controls on the front and back of the unit.
1
2
3 4
1. Power. Green power LED.
2. Test. Amber test LED.
3. NETGEAR Diagnostic USB ports.
4. UPLINK Gigabit Ethernet port.
5. Four DOWNLINK Gigabit Ethernet ports.
8
6 7 9
6. Serial console port.
Kensington lock connector to prevent unauthorized removal of the unit
7.
8. Power button - press once for normal shut down; press and hold for forced shutdown.
9. Recessed pin-push back to factory default reset button.
10. Power connector.
Connect the STM150 to Your Network
1. Power on the STM150 by plugging in the power cable and connecting it to the power
connector on the rear of the unit. Verify the following:
• Power. The power LED (1) should turn solid green. If it does not turn solid green,
see the Troubleshooting section in the Reference Manual.
• Test. Initially, the amber test LED (2) will be lit for approximately 2 minutes. If it
is still on after 2 minutes, see the Troubleshooting Tips.
2. Connect the UPLINK Ethernet port (4) to your gateway firewall.
3. Use the Ethernet port LEDs to verify the status and speed of the connection,
according to the legend printed on the front of the unit.
4. Connect a computer to the STM150
a. The STM150 factory default IP address is 192.168.1.201. Configure a computer
with a static IP address such as 192.168.1.111.
b. Connect this computer to one of the DOWNLINK Ethernet ports (5).
c. Use the Ethernet port LEDs to verify the status and speed of the connection,
5
according to the legend printed on the front of the unit.
Configure the STM150 Network Settings
1. Log in to the STM150
a. Use a browser to connect to
https://192.168.1.201.
b. When prompted, enter admin for
the User Name and password for the Password.
c. Click Login. You are now connected. The default Status
10
screen displays.
The Web Support tab on the main menu contains links to
the online ProSecure STM150 product documentation and support
.
knowledgebase.
Note: After 5 minutes of inactivity (the default login time-out), you are
automatically logged out.
2. Configure the Network Settings
a. Select Global Settings > Network
Settings. The Network Settings tab
displays.
b. Fill in the settings, according to the
configuration requirements of your
network. Be sure to record the IP
address you assign the STM150; you will need it in the future when you log in to
this unit. For now, ignore the speed and MTU settings.
Note: If your network uses DHCP, be sure to reserve this IP address for the
STM150 in your DHCP server or gateway firewall.
https://192.168.1.201
