SERVICE MANUAL
Ver. 1.0 2008.08
• The tuner and CD sections have no adjustments.
CD player section
Signal-to-noise ratio: 120 dB
Frequency response: 10 – 20,000 Hz
Wow and fl utter: Below measurable limit
Tuner section
FM
Tuning range:
CDX-GT130/GT230: 87.5 – 107.9 MHz
CDX-GT180/GT280/GT280S/GT282S:
87.5 – 108.0 MHz (at 50 kHz step)
87.5 – 107.9 MHz (at 200 kHz step)
FM tuning interval:
CDX-GT180/GT280/GT280S/GT282S:
50 kHz/200 kHz switchable
Antenna (aerial) terminal:
External antenna (aerial) connector
Intermediate frequency: 150 kHz
Usable sensitivity: 10 dBf
Selectivity: 75 dB at 400 kHz
Signal-to-noise ratio: 70 dB (mono)
Separation: 40 dB at 1 kHz
Frequency response: 20 – 15,000 Hz
AM (CDX-GT130/GT230)
Tuning range: 530 – 1,710 kHz
Antenna (aerial) terminal:
External antenna (aerial) connector
Intermediate frequency: 25 kHz
Sensitivity: 26 μV
Sony Corporation
9-889-234-01
2008H04-1
Audio&Video Business Group
©
2008.08
Published by Sony Techno Create Corporation
CDX-GT130/GT180/GT230/
GT280/GT280S/GT282S

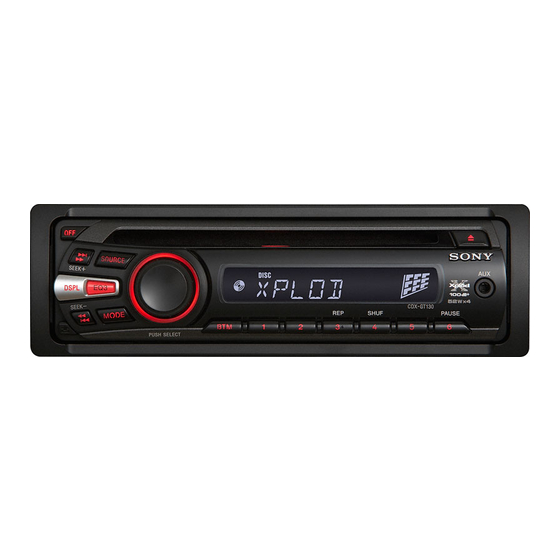

(Photo: CDX-GT130)
Model Name Using Similar Mechanism
CD Drive Mechanism Type
Optical Pick-up Name
SPECIFICATIONS
MW (CDX-GT180/GT280/GT280S/GT282S)
Tuning range:
531 – 1,602 kHz (at 9 kHz step)
530 – 1,710 kHz (at 10 kHz step)
MW tuning interval: 9 kHz/10 kHz switchable
Antenna (aerial) terminal:
External antenna (aerial) connector
Intermediate frequency: 25 kHz
Selectivity: 26 μV
SW (CDX-GT180/GT280/GT280S/GT282S)
Tuning range:
SW1: 2,940 – 7,735 kHz
SW2: 9,500 – 18,135 kHz
(except for 10,140 – 11,575 kHz)
Antenna (aerial) terminal:
External antenna (aerial) connector
Intermediate frequency: 25 kHz
Selectivity: 30 μV
Power amplifi er section
Outputs: Speaker outputs (sure seal connectors)
Speaker impedance: 4 – 8 ohms
Maximum power output: 52 W × 4 (at 4 ohms)
FM/AM COMPACT DISC PLAYER
FM/MW/SW COMPACT DISC PLAYER
US Model
CDX-GT130
Canadian Model
CDX-GT230
E Model
CDX-GT180/GT280/GT280S/GT282S
CDX-GT33W/GT330
MG-101L-188//C
DAX-25A
General
Outputs:
Audio outputs terminal (sub/rear switchable)
Power antenna (aerial) relay control terminal
Power amplifi er control terminal
Inputs:
Antenna (aerial) input terminal
AUX input jack (stereo mini jack)
Tone controls:
Low: ±10 dB at 60 Hz (XPLOD)
Mid: ±10 dB at 1 kHz (XPLOD)
High: ±10 dB at 10 kHz (XPLOD)
Power requirements: 12 V DC car battery
(negative ground (earth))
Power supply voltage: 11 – 16 V
– Continued on next page –
CDX-GT130/GT230
CDX-GT180/GT280/GT280S/GT282S
