Sony HCD-ZX8 Service Manual

SERVICE MANUAL
Ver 1.1 2004. 09
• HCD-ZX6/ZX8 are the tuner,
deck, CD and amplifier
section in FST-ZX6/ZX8.
Amplifier section
HCD-ZX8
Mexican models:
The following measured at AC 127 V, 60 Hz
DIN power output (rated):
140 × 2 + 140 × 2 watts
(6 ohms at 1 kHz, DIN)
Continuous RMS power output (reference):
180 × 2 + 180 × 2 watts
(6 ohms at 1 kHz, 10% THD)
Other models:
The following measured at AC 120, 220, 240 V, 50/60 Hz
DIN power output (rated):
140 × 2 + 140 × 2 watts
(6 ohms at 1 kHz, DIN)
Continuous RMS power output (reference):
180 × 2 + 180 × 2 watts
(6 ohms at 1 kHz, 10% THD)
HCD-ZX6
Mexican models:
The following measured at AC 127 V, 60 Hz
DIN power output (rated):
220 + 220 watts
(4 ohms at 1 kHz, DIN)
Continuous RMS power output (reference):
280 + 280 watts
(4 ohms at 1 kHz, 10% THD)
Sony Corporation
9-879-083-02
2004I04-1 Audio Group
© 2004. 09 Published by Sony Engineering Corporation
HCD-ZX6/ZX8

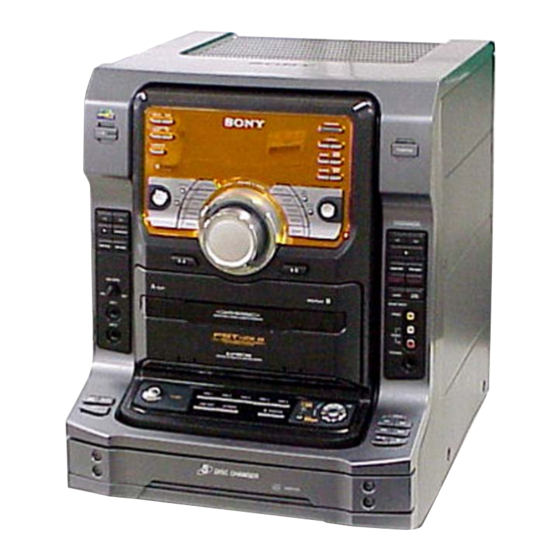

(Photo: HCD-ZX8)
Model Name Using Similar Mechanism
CD CD Mechanism Type
Section Base Unit Name
Optical Pick-up Name
TAPE Model Name Using Similar Machanism
Section Tape Mechanism Type
SPECIFICATIONS
Other models:
The following measured at AC 120, 220, 240 V, 50/60 Hz
DIN power output (rated):
Continuous RMS power output (reference):
Inputs
PHONO IN (phono jack):
MIC (phone jack):
GAME INPUT AUDIO L/R (phono jacks):
GAME INPUT VIDEO (phono jack):
VIDEO/MD IN L/R (phono jacks):
COMPONENT Hi-Fi STEREO SYSTEM
E Model
NEW
CDM79B-F1BD81
BU-F1BD81A
KSM-215DCP/C2RP
HCD-GN880
CWM43RR35
220 + 220 watts
(4 ohms at 1 kHz, DIN)
280 + 280 watts
(4 ohms at 1 kHz, 10% THD)
sensitivity 3 mV,
impedance 47 kOhms
sensitivity 1 mV,
impedance 10 kOhms
sensitivity 250 mV,
impedance 47 kOhms
1 Vp-p, 75ohms
sensitivity 250 mV/450 mV,
impedance 47 kOhms
– Continued on next page –
