NOTE:
• The mechanical parts with no reference
number in the exploded views are not supplied.
• Items marked "*" are not stocked since
they are seldom required for routine service.
Some delay should be anticipated
when ordering these items.
• Abbreviation
MX : Mexican model

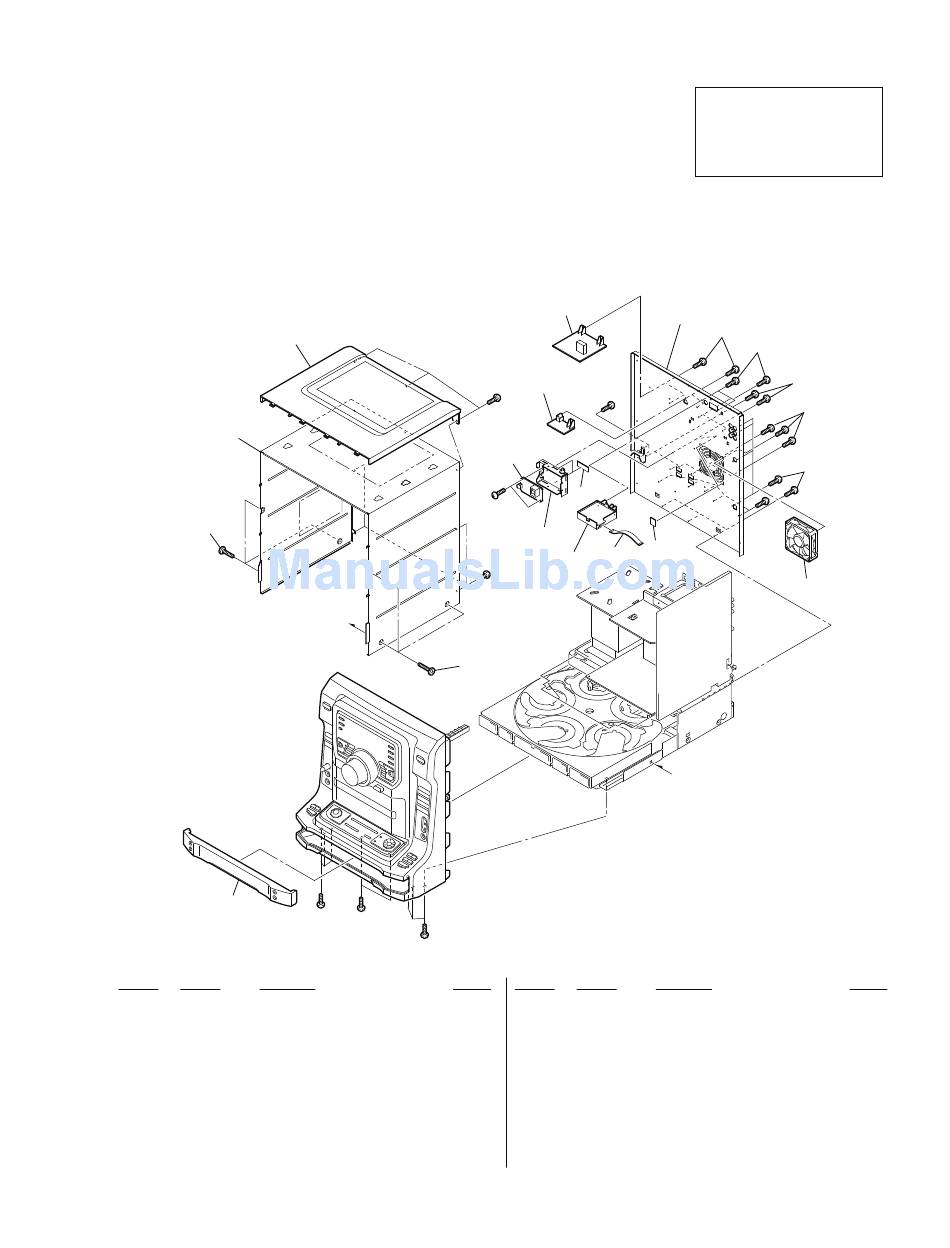

8-1. BACK PANEL SECTION
4
3
2
1
Ref. No.
Part No.
Description
1
4-252-686-02 LOADING PANEL (US)
1
4-252-686-21 LOADING PANEL (MX)
2
3-363-099-02 SCREW (CASE 3 TP2) (US)
2
3-363-099-32 SCREW (CASE 3 TP2) (MX)
3
4-237-661-51 CASE
4
4-252-685-01 COVER (TOP) (US)
4
4-252-685-21 COVER (TOP) (MX)
5
1-769-939-11 WIRE (FLAT TYPE) (11 CORE)
0 6
1-468-737-51 SWITCHING, POWER (MX)
0 6
1-468-737-71 SWITCHING, POWER (US)
SECTION 8
EXPLODED VIEWS
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Accessories are given in the last of this
parts list.
#1
#1
A
2
#1
#1
#1
Remark
7
not supplied
not supplied
(LIGHTING board)
#1
6
9
not supplied
8
5
TU901
#1
A
Ref. No.
Part No.
Description
7
1-861-384-11 VOLTAGE SELECTOR BOARD
8
3-559-407-21 CUSHION, STOPPER (MX)
8
3-831-441-99 CUSHION, STOPPER (US)
* 9
3-378-433-01 CUSHION, SARANET
FAN901 1-763-372-11 FAN, DC
TU901
1-693-603-11 TUNER (FM/AM) (MX)
TU901
1-693-623-31 TUNER (FM/AM) (US)
#1
7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S
HCD-ZX9
Ver. 1.1
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
#1
#1
#1
#1
#1
#1
FAN901
Remark
71

Advertisement

Table of Contents
loading

Related Manuals for Sony HCD-ZX9 - Receiver Cd

Summary of Contents for Sony HCD-ZX9 - Receiver Cd

  • Page 1: Section 8 Exploded Views

    HCD-ZX9 Ver. 1.1 SECTION 8 EXPLODED VIEWS NOTE: • The mechanical parts with no reference • -XX and -X mean standardized parts, so The components identified by mark 0 or dotted line with mark number in the exploded views are not supplied. they may have some difference from the 0 are critical for safety.

  • Page 2: Front Panel Section

    HCD-ZX9 Ver. 1.1 8-2. FRONT PANEL SECTION (1) not supplied (POWER SWITCH board) not supplied (CURSOR board) not supplied FL901 (TC-A board) not supplied not supplied (FUNCTION SW board) not supplied supplied with S975 Ref. No. Part No. Description Remark Ref.
  • Page 3 HCD-ZX9 Ver. 1.1 8-3. FRONT PANEL SECTION (2) not supplied not supplied supplied with jack not supplied not supplied supplied (MIC board) with jack not supplied not supplied not supplied not supplied (CD-L board) not supplied not supplied (CD-R board) Ref.

  • Page 4: Chassis Section

    HCD-ZX9 Ver. 1.2 8-4. CHASSIS SECTION not supplied not supplied (TRANS board) not supplied (SENSOR board) T1100 F1181 F1151 FC901 F1171 F1161 F1141 not supplied not supplied (RETAINER board) not supplied not supplied not supplied not supplied CDM79B-F1BD81 not supplied not supplied Ref.

  • Page 5: Cd Mechanism Section

    HCD-ZX9 Ver. 1.1 8-5. CD MECHANISM SECTION (1) supplied supplied not supplied not supplied not supplied CD mechanism deck section-2 (CDM79B-F1BD81) Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 3-074-737-01 PLATE (GUIDE) 4-218-252-52 SCREW (+PTPWH M2.6), FLOATING A-6060-642-A SE-130 BOARD, COMPLETE 1-823-921-11 FMS-18 A-6060-640-B UNIT ASSY, TD...
  • Page 6 HCD-ZX9 Ver. 1.1 8-6. CD MECHANISM SECTION (2) RE901 S101 M901 not supplied supplied supplied not supplied not supplied (MD-94 board) Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 4-218-252-52 SCREW (+PTPWH M2.6), FLOATING 4-985-672-01 SCREW (+PTPWH M2.6), FLOATING 3-074-744-01 GEAR (LOADING A) 4-231-151-01 STOPPER (BU) 3-074-745-01 BELT (LOADING)

  • Page 7: Section 9 Electrical Parts List

    HCD-ZX9 Ver. 1.1 SECTION 9 BD81A ELECTRICAL PARTS LIST NOTE: • Due to standardization, replacements in • Items marked “*” are not stocked since The components identified by mark 0 or dotted line with mark the parts list may be different from the they are seldom required for routine service.
  • Page 8 HCD-ZX9 BD81A CD-L CD-R Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark < TRANSISTOR > R410 1-216-809-11 METAL CHIP 1/10W R411 1-216-809-11 METAL CHIP 1/10W 6-551-120-01 TRANSISTOR 2SA2119K R412 1-216-809-11 METAL CHIP 1/10W R419 1-216-809-11 METAL CHIP 1/10W <...
  • Page 9 HCD-ZX9 Ver. 1.1 CURSOR FUNCTION SW GAME-IN/HP LIGHTING Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark CURSOR BOARD C965 1-162-970-11 CERAMIC CHIP 0.01uF ************** < DIODE > < RESISTOR > D925 8-719-061-96 LED SLR-325DCT31 (X-ROUND ON/OFF) R978 1-216-833-11 METAL CHIP 1/10W...
  • Page 10 HCD-ZX9 Ver. 1.1 LIGHTING MAIN Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark < TRANSISTOR > C151 1-162-970-11 CERAMIC CHIP 0.01uF C152 1-137-427-11 MYLAR 120PF 8-729-056-46 TRANSISTOR 2SC5053T100Q C153 1-126-964-11 ELECT 10uF C154 1-137-427-11 MYLAR 120PF <...
  • Page 11 HCD-ZX9 MAIN Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark C301 1-164-156-11 CERAMIC CHIP 0.1uF C524 1-162-957-11 CERAMIC CHIP 220PF C302 1-126-947-11 ELECT 47uF C525 1-126-964-11 ELECT 10uF C303 1-164-156-11 CERAMIC CHIP 0.1uF C526 1-126-964-11 ELECT 10uF C304 1-162-970-11 CERAMIC CHIP...
  • Page 12 HCD-ZX9 Ver. 1.1 MAIN Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark < FERRITE BEAD > JR212 1-216-864-11 SHORT CHIP JR213 1-216-296-11 SHORT CHIP FB300 1-469-152-11 FERRITE, EMI (SMD) (2012) JR215 1-216-296-11 SHORT CHIP FB301 1-469-152-11 FERRITE, EMI (SMD) (2012) JR216 1-216-296-11 SHORT CHIP FB302...
  • Page 13 HCD-ZX9 MAIN Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark Q145 8-729-120-28 TRANSISTOR 2SC1623-L5L6 R119 1-216-833-11 METAL CHIP 1/10W Q165 6-550-889-01 TRANSISTOR 2SC5938-T112-1B R120 1-216-833-11 METAL CHIP 1/10W Q180 6-550-889-01 TRANSISTOR 2SC5938-T112-1B R121 1-216-833-11 METAL CHIP 1/10W Q190 8-729-027-43 TRANSISTOR DTC114EKA-T146...
  • Page 14 HCD-ZX9 MAIN Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R184 1-216-809-11 METAL CHIP 1/10W R309 1-216-821-11 METAL CHIP 1/10W R185 1-216-809-11 METAL CHIP 1/10W R310 1-216-841-11 METAL CHIP 1/10W R186 1-216-809-11 METAL CHIP 1/10W R311 1-216-809-11 METAL CHIP 1/10W R187...
  • Page 15 HCD-ZX9 Ver. 1.1 MAIN MD-94 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R445 1-216-833-11 METAL CHIP 1/10W R531 1-216-822-11 METAL CHIP 1.2K 1/10W R446 1-216-833-11 METAL CHIP 1/10W R554 1-216-833-11 METAL CHIP 1/10W R447 1-216-833-11 METAL CHIP 1/10W R555 1-216-833-11 METAL CHIP...

  • Page 16: Mic Panel

    HCD-ZX9 Ver. 1.1 PANEL Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark C810 1-164-315-11 CERAMIC CHIP 470PF C919 1-162-970-11 CERAMIC CHIP 0.01uF C811 1-162-923-11 CERAMIC CHIP 47PF C920 1-126-947-11 ELECT 47uF C812 1-126-960-11 ELECT C921 1-115-416-11 CERAMIC CHIP 0.001uF C813 1-115-416-11 CERAMIC CHIP...
  • Page 17 HCD-ZX9 Ver. 1.1 PANEL POWER Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark < JUMPER RESISTOR > R947 1-216-821-11 METAL CHIP 1/10W R948 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W FB901 1-216-864-11 SHORT CHIP R949 1-216-821-11 METAL CHIP 1/10W R950 1-216-821-11 METAL CHIP...
  • Page 18 HCD-ZX9 POWER Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark C608 1-126-965-11 ELECT 22uF D670 8-719-404-50 DIODE MA111-TX C609 1-128-560-11 ELECT 22uF 100V D700 8-719-988-61 DIODE 1SS355TE-17 C610 1-128-560-11 ELECT 22uF 100V D701 8-719-988-61 DIODE 1SS355TE-17 C616 1-136-495-11 FILM 0.068uF...
  • Page 19 HCD-ZX9 Ver. 1.1 POWER POWER SW SE-130 SENSOR SURROUND Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R624 1-216-837-11 METAL CHIP 1/10W R701 1-216-841-11 METAL CHIP 1/10W R625 1-216-823-11 METAL CHIP 1.5K 1/10W R626 1-216-845-11 METAL CHIP 100K 1/10W <...
  • Page 20 HCD-ZX9 SURROUND TC-A Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark C701 1-162-966-11 CERAMIC CHIP 0.0022uF 10% R731 1-216-821-11 METAL CHIP 1/10W C702 1-104-658-11 ELECT 100uF R732 1-216-835-11 METAL CHIP 1/10W C703 1-162-927-11 CERAMIC CHIP 100PF R733 1-216-847-11 METAL CHIP 150K...
  • Page 21 HCD-ZX9 Ver. 1.1 TC-A TC-B TRANS Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R845 1-216-825-11 METAL CHIP 2.2K 1/10W S949 1-771-410-21 SWITCH, TACTILE (G) R846 1-216-823-11 METAL CHIP 1.5K 1/10W ************************************************************* < SWITCH > 1-861-385-11 TRANS BOARD ************ 1-771-410-21 SWITCH, TACTILE (.
  • Page 22 HCD-ZX9 VOLTAGE SELECTOR Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark Q913 8-729-027-43 TRANSISTOR DTC114EKA-T146 S916 1-771-410-21 SWITCH, TACTILE (MOVIE) Q914 8-729-027-43 TRANSISTOR DTC114EKA-T146 S917 1-771-410-21 SWITCH, TACTILE (GAME) Q915 8-729-027-43 TRANSISTOR DTC114EKA-T146 S918 1-771-410-21 SWITCH, TACTILE (AMP MENU) S919 1-771-410-21 SWITCH, TACTILE (EFFECT ON/OFF) <...
  • Page 23 HCD-ZX9 Ver. 1.2 Ref. No. Part No. Description Remark MISCELLANEOUS *************** 1-769-939-11 WIRE (FLAT TYPE) (11 CORE) 1-468-737-51 SWITCHING, POWER (MX) 1-468-737-71 SWITCHING, POWER (US) 1-773-163-11 WIRE (FLAT TYPE) (21 CORE) 1-796-487-71 DECK, MECHANICAL 1-769-992-11 WIRE (FLAT TYPE) (13 CORE) 0 157 1-783-820-11 CORD, POWER (US) 0 157...
