Front Panel Overview - Lexicon ALEX - REV 2 User Manual

MIX
Controls the proportion of processed
(wet) to unprocessed (dry) signals sent
to the outputs.
INPUT
Sets the level of the incoming
signal.
INPUT MIX
D I G I T A L
DRY
E F F E C T S
P R O C E S S O R
STORE (+)/CLEAR (–)
Toggles the Store and Clear functions. When "+" is displayed,
press and hold to store the current effect to displayed register.
When "–" is displayed, press and hold to clear a register to allow
effects to be skipped for a footswitch step or chain sequence.
OUTPUT
Controls Alex's output level.
PARAMETER
Selects DECAY, DELAY or FX LVL for
adjustment with the VALUE knob. (Se-
lection indicated by lit LED.)
OUTPUT STORE (+)/CLEAR (–)
WET

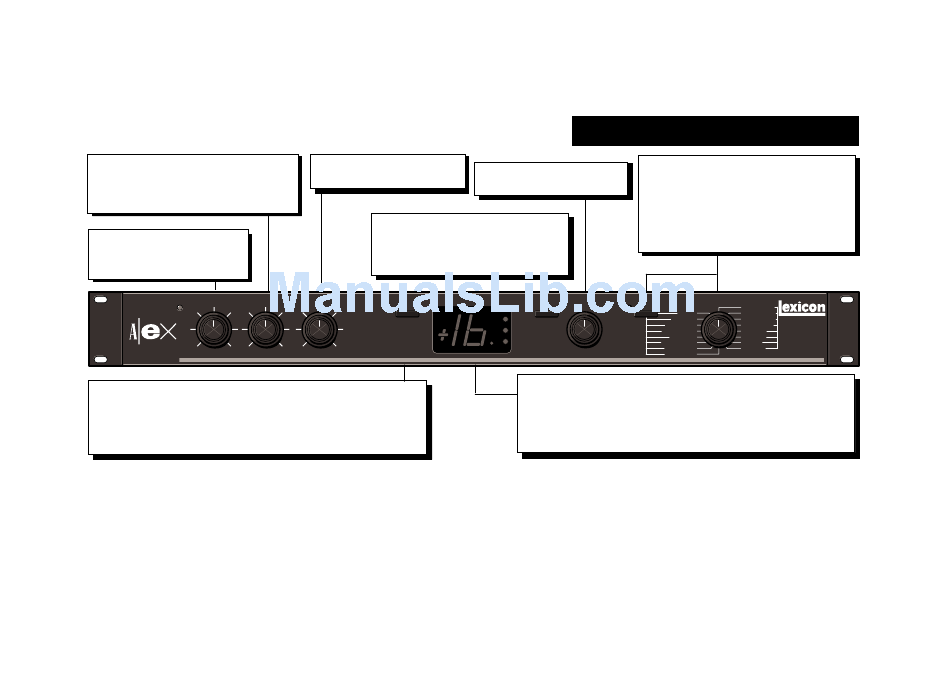

Front Panel Overview

REGISTER/PRESET
VALUE
Button selects preset or register mode.
Adjusts selected parameter.
LED lights when register mode is selected,
turns off in preset mode.
Knob will select presets 1-16 or registers
1-16, depending on button setting.
REGISTER/PRESET
PARAMETER VALUE
DECAY
DELAY
FX LVL
DISPLAY
Numeric display of digits 1-16, and decimal point. Displayed digits
indicate ID number of currently running effect or parameter setting
if one of parameter LEDs is flashing. Decimal point lights to show
an effect has been modified since it was stored.
2
9 GOLD PLATE
GATE 8 10 VOCAL PLATE
INVERSE 7 11 BRASS PLATE
TILED ROOM 6 12 PERC PLATE
GUITAR ROOM 5 13 CHORUS
CHAMBER 4 14 FLANGE
RECITAL HALL 3 15 ECHO
STRING HALL 2 16 DELAYS
LARGE HALL 1
