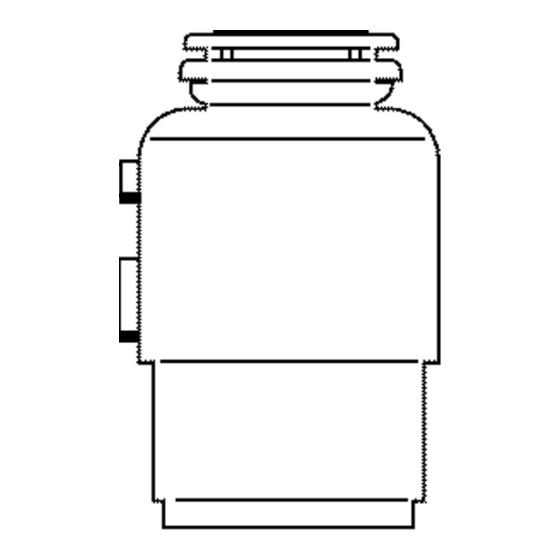

Kenmore 60556 Installation, Care & Use Manual

®
FOO WASTE DISPOSERS
J
Installation, Care & Use Manual
TOOLS AND MATERIALS YOU WILL NEED:
Slotted Screwdriver, Adjustable Pliers, Plumber's Putty,
Electrical Tape
TOOLS, MATERIALS, AND ACCESSORIES
YOU MAY NEED:
Phillips Screwdriver, Drain Auger, 3/8" Electrical Clamp
Connector, Wire Nuts (2), Second 1 1/2" Drain Trap,
Hammer, Hacksaw, Water Hose Clamp, Pipe Wrench,
Copper Ground Wire, Dishwasher Drain Connection Kit, Air
Gap, Electrical On/Off Switch, Drain Tube Extension
Read through the entire installation, Care
& Use manual before installing the dis-
poser. Determine which of the tools,
materials, and accessories you will need
before you begin. Make sure you have all
necessary disposer parts before install=
ing the disposer (see part identification
diagram below).
O s j/K OR
'LT-- _t _,-f",_ P -
1 <=_-'"-Je .................. fl/r,l. _-N
0_ _ U
Mounting Assembly Disposer Two-Bolt Discharge
A: Stopper H: MountingGasket/SplashBaffle N: Bolt (2)
B:Sink
Flange
h Lower
Mounting Ring
._lr O:
Discharge Tube (1-1/2" Diam.)
C: FiberGasket J: DishwasherInlet
" = P: Flange
D: Backup Ring K: Discharge Outlet
Q:Gasket
E: MountingRing L: Wrenchette OF{
F: Screws(3)
--
One-Bolt Discharge
G: Snap Ring
N: Bolt
,_ O: Discharge Tube (1-1/2" Diam.)
• "--
p::Flange t
SAFETY SYMBOLS
Danger indicates an
imminently hazardous situation which,
if not avoided, will result in death or
serious injury.
I_iWARNING I Warning indicates
a potentially hazardous situation
which, if not avoided, could result in
death or serious injury.
I _,CAUTIONI Caution indicates a
potentially hazardous situation which,
if not avoided, may result in minor or
moderate injury.
Part No. 73110 - 1/02
