Installation manual

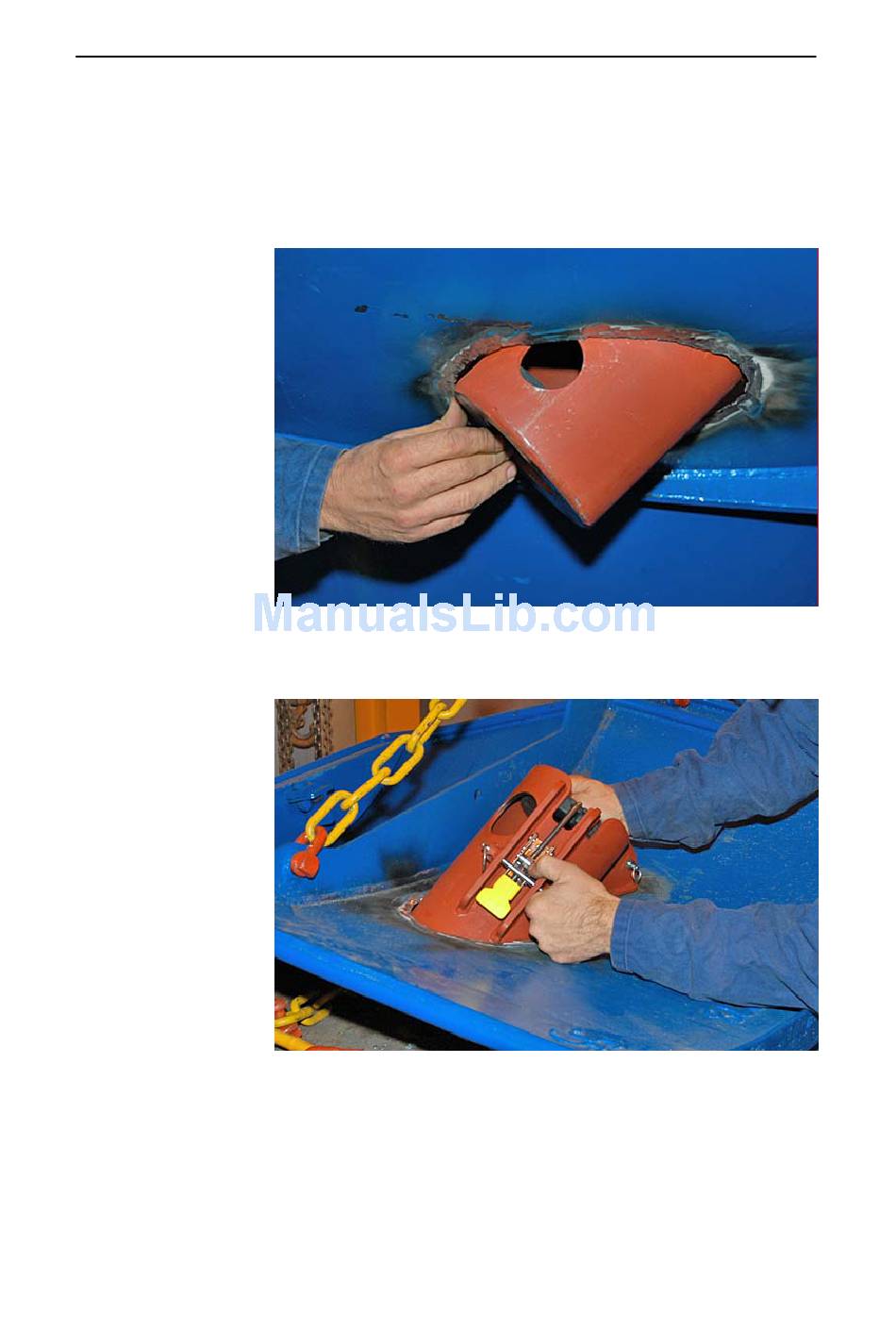

2) Orient the sensor adapters
Position the sensor adapters (port and starboard respectively)
with the bottom portion just protruding through the back side of
the door.
Carefully check that the adapters' angle and orientation are as
close to those described in the drawings.
7
857-164919 / Rev.B
