Simrad PI Sensor adapter installation
14

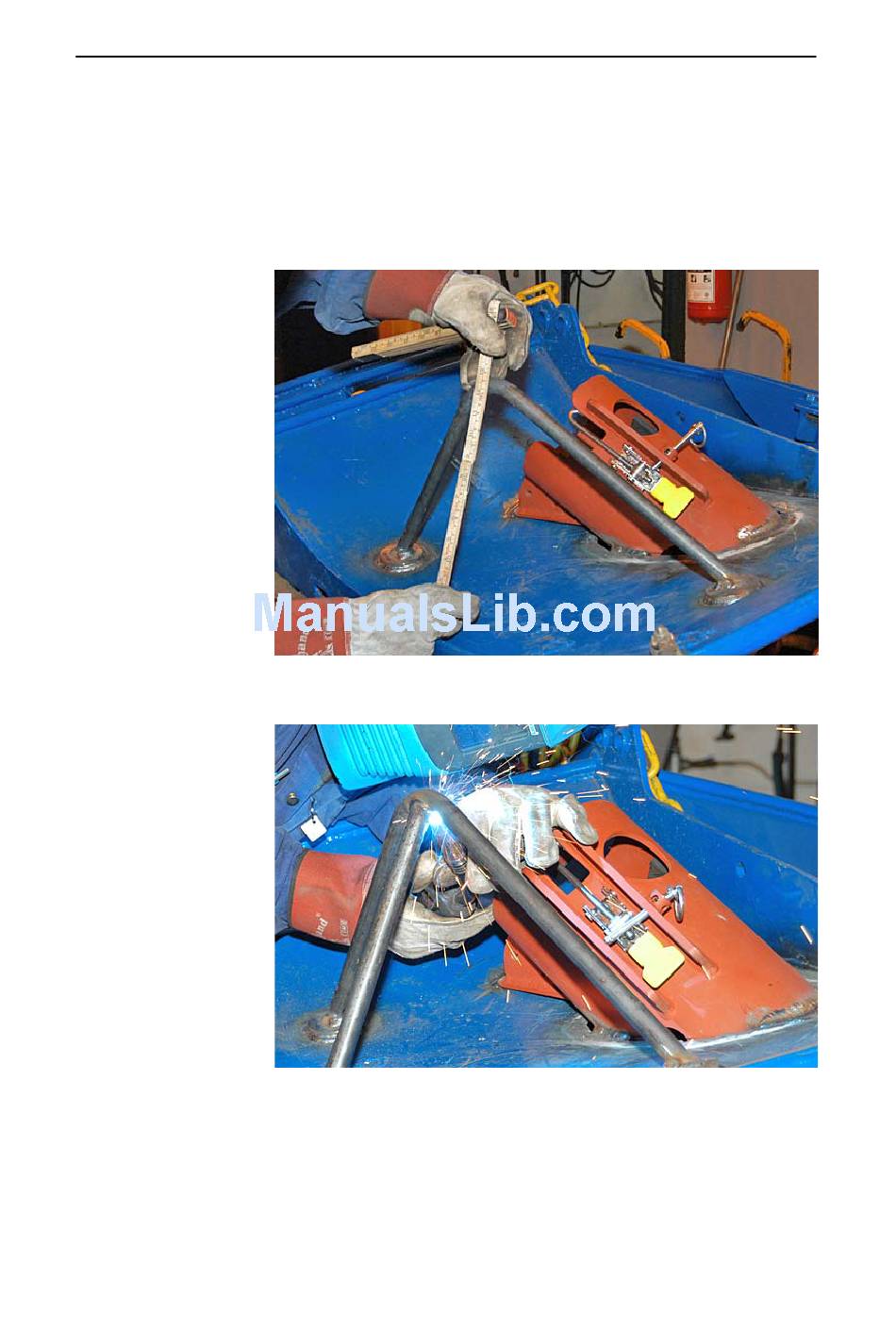

STEP 9: Attach the outboard protective cage
stiffener
Using a yardstick, and measure the length of standard 20 mm
diameter bar stock necessary to span from the apex of the
protective cage to the door.
Cut and weld the stiffener in place.
857-164919 / Rev.B
