Simrad PI Sensor adapter installation
6

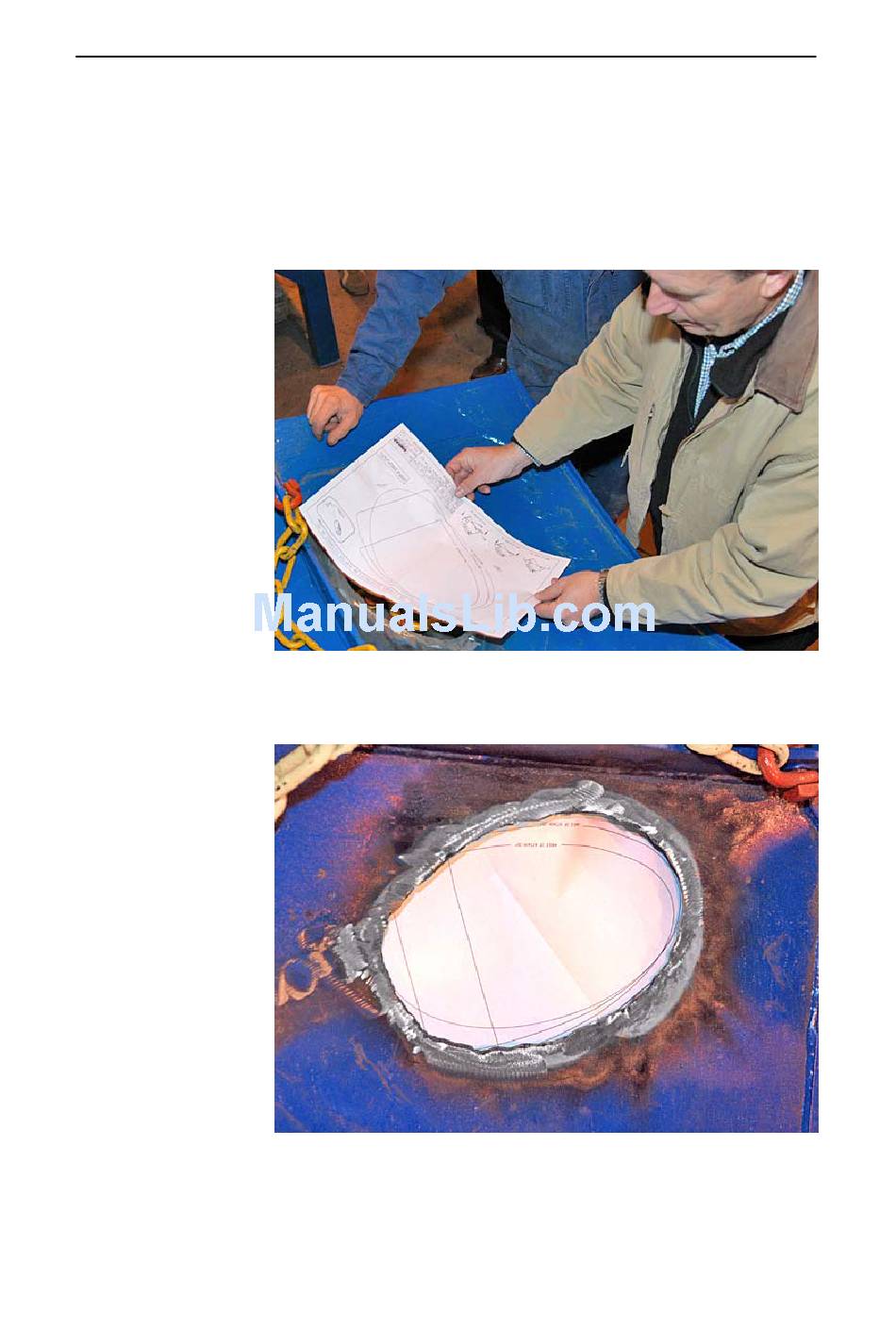

STEP 1: Cut openings in the doors for the sensor
adapters
Using drawing 830-208247 as a guide, and mark off the areas to
be cut out. Note that you need to have the drawing available in
size 1:1.
Cut openings in the doors using an acetylene torch, check their
accuracy against the full scale drawings when finished.
857-164919 / Rev.B
