Simrad ME70 - DATASHEET REV C Datasheet
Scientific multibeam echo sounder system
Hide thumbs
Also See for ME70 - DATASHEET REV C:
- Installation manual (442 pages) ,
- Instruction manual (46 pages) ,
- Operator's manual (112 pages)
Subscribe to Our Youtube Channel
Related Manuals for Simrad ME70 - DATASHEET REV C
Summary of Contents for Simrad ME70 - DATASHEET REV C

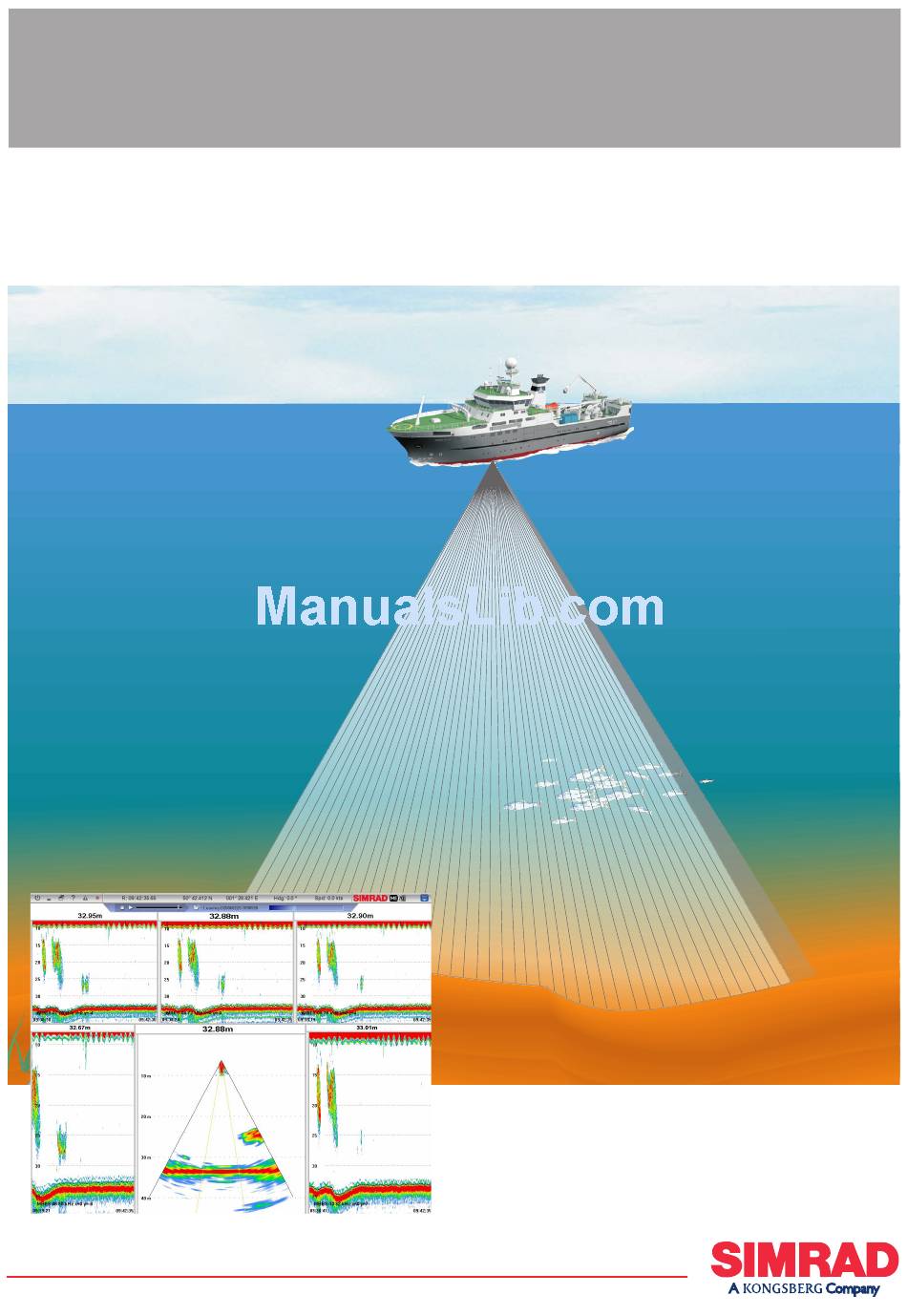

- Page 1 Simrad ME70 Scientific multibeam echo sounder system We are proud to introduce the world’s first quantitative multibeam echo sounder for fishery research applications (CD10100) www.SIMRAD.com M A X I M I Z I N G Y O U R P E R F O R M A N C E...
- Page 2 The output data for each directions, frequencies, and opening beam include for example: angles for the beams in the Simrad • non-TVG compensated sample ME70. power and sample angle You will be able to configure the •...
- Page 3 Screen capture example and system diagram This capture provides a typical presentation of fish schools. You can see five of the 31 beams, as well as the fan presentation. The menu is hidden from view. (Data kindly provided by Ifremer, France.) System diagram MENU Operator station...
- Page 4 Sidelobe and beam Operator Station • Type: Commercial workstation The transducer array set up for test interleakage and calibration at Simrad’s laboratory • Alongship: Less than -35 dB • Operating system: Microsoft® • Athwartship: Less than -35 dB Windows XP®...
