Thank you for purchasing this quality product!
It has been engineered for easy assembly yet
constructed for durability.
Please take the time to read and follow
the instructions while assembling.
Step 1
d
e
Step 2
04
03
01
d
e
b
f
02
01
02
01
05
g
05
g
g
g
03

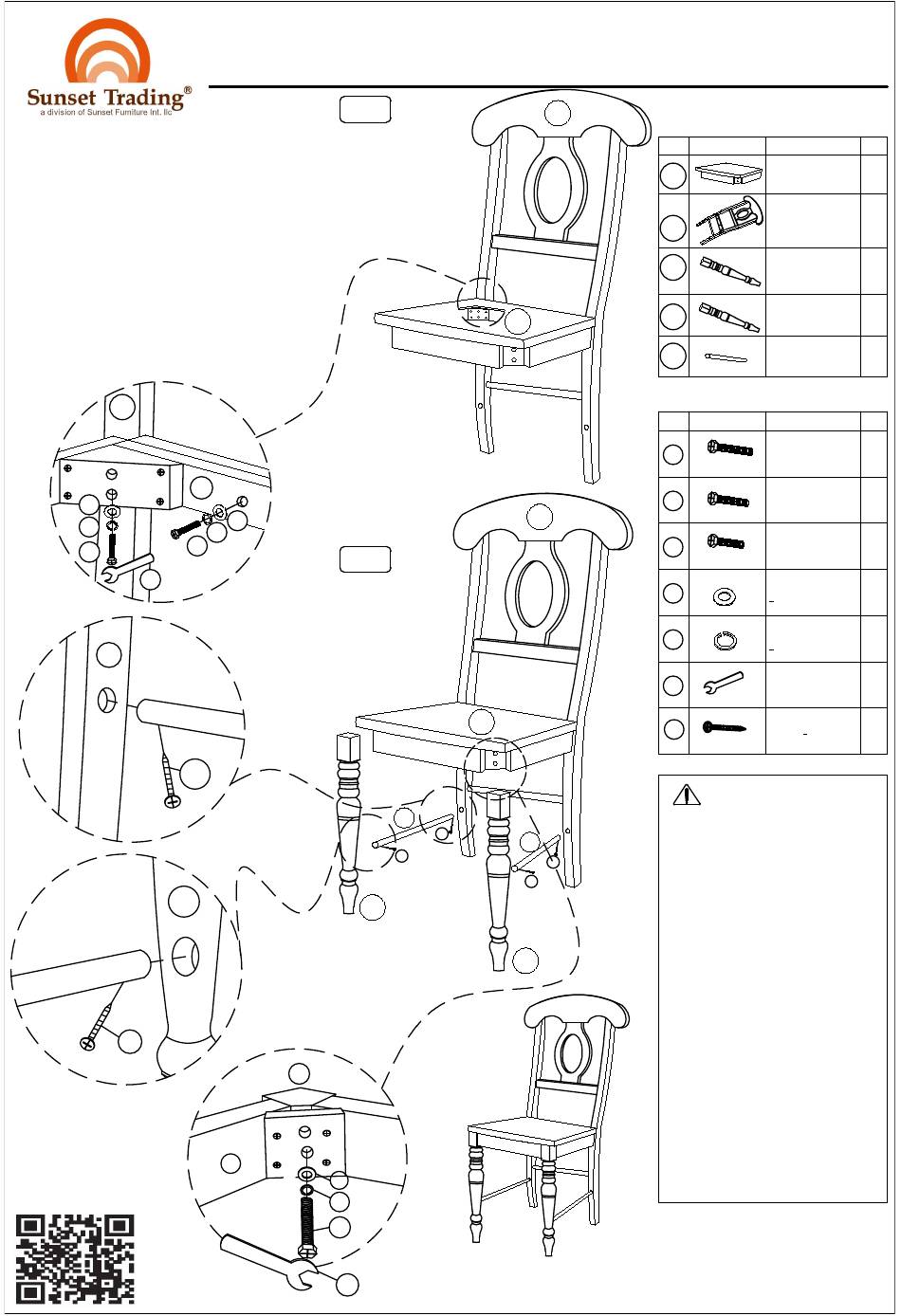

ASSEMBLY INSTRUCTIONS
SKU: DLU-BR-C50-RTA
List of Parts For 1 Set
Figure
Code
01
02
03
04
05
List of Hardware For 1 Set
Figure
Code
a
b
c
d
e
f
g
IMPORTANT NOTES:
• Keep all hardware and small
parts out of reach of children.
• Remove all staples and
packing straps before you start
to assemble.
• Do not discard main cartons
and wrapping material until
assembly is complete.
• Check to be sure you have all
parts and hardware.
• Place all wooden parts on a
clean soft surface to avoid
parts from being scratched
• Do not tighten all screws / bolts
until completely assembled.
• Check tightness 3x's/year, with
use screws can become loose.
• Do not attempt to repair or
modify parts that are broken or
defective. Please contact us
immediately.
• Enjoy your new furniture!
MADE IN MALAYSIA
Qty.
Part
1
Seat Frame
Chair Back
1
Front Leg (R)
1
Front Leg (L)
1
Side Stretcher 2
Hardware Qty.
Hex. Bolt
4
M6 x 80mm
Hex. Bolt
4
M6 x 60mm
Hex. Bolt
2
M6 x 40mm
Flat Washer
10
1
" x 18mm
4
Spring Washer
10
1
"
4
Spanner
1
10mm
PHRS Screw
4
1
#8 x 1 "
4
