Sunset Trading 066HB/066FB/000SR Assembly Instructions

Thank you for purchasing this quality product!
It has been engineered for easy assembly yet
constructed for durability.
Please take the time to read and follow
the instructions while assembling.
701 E Industrial Pk Dr
Manchester, NH 03109
sunsettrading.com
i
e
f
g
h
Step 3
MADE IN VIET NAM
Step 2
j
Step 4
06
05
02
07
• Keep all hardware and small parts out of reach of children.
• Remove all staples and packing straps before you start to assemble.
• Do not discard main cartons and wrapping material until assembly is complete.
• Check to be sure you have all parts and hardware.
• Place all wooden parts on a clean soft surface to avoid parts from being scratched.
• Do not tighten all screws / bolts until completely assembled.
• Check tightness 3x's/year, with use screws can become loose.
• Do not attempt to repair or modify parts that are broken or defective. Please contact us immediately.
• Enjoy your new furniture!
Please Contact us if you are
Missing Parts or have any Questions
877-364-8464
info@sunsettrading.com
Step 1
03
05
IMPORTANT NOTES:

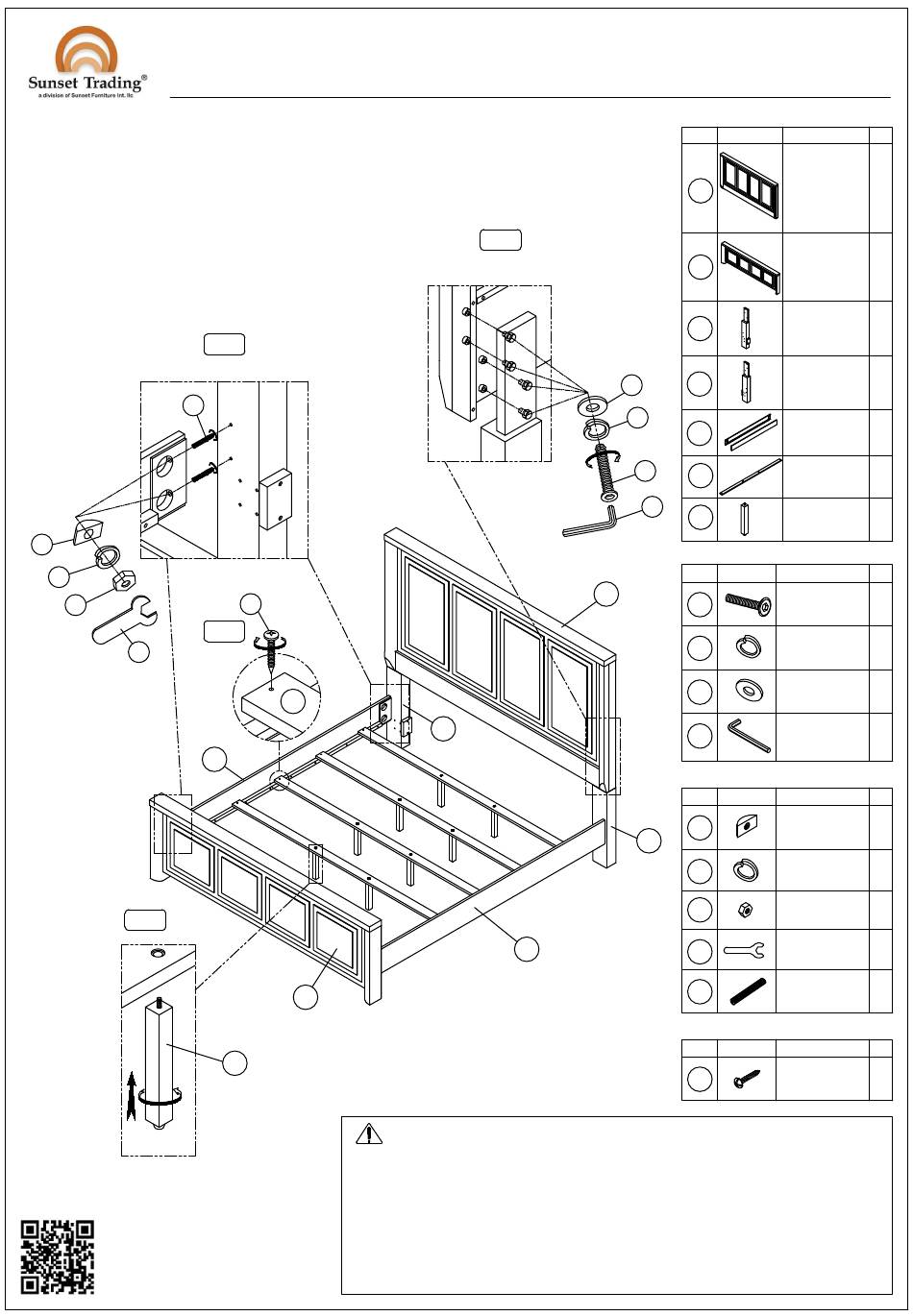

ASSEMBLY INSTRUCTIONS
SKU: 638-066 KING BED
066HB/066FB/000SR
List of Parts For 1 Set
Code Figure
01
02
03
c
04
b
05
a
06
d
07
List of Hardware For (HB) 1 Set
Code Figure
01
a
b
c
d
List of Hardware For (SR) 1 Set
Code Figure
e
04
f
g
h
i
List of Hardware For (FB) 1 Set
Code Figure
J
Part Qty.
Head Board 1
Foot Board
1
Head Board
1
Left Post
Head Board
1
Right Post
2
Side Rails
4
Slats
Slat Support
4
Legs
Part Qty.
Bolts
8
Φ5/16" x 38mm
Lock Washers
8
Φ5/16"
Flat Washers
8
Φ5/16"x19mm
Allen Wrench
1
M4
Part Qty.
Half Moon
8
Washers Ø5/16"
Lock Washers
8
Φ5/16"
Het Nuts
8
Φ5/16"
Open Wrench
1
Ø5/16"
Hanger Bolts
8
Φ5/16"*89mm
Qty.
Part
Screws
8
#8*25mm
