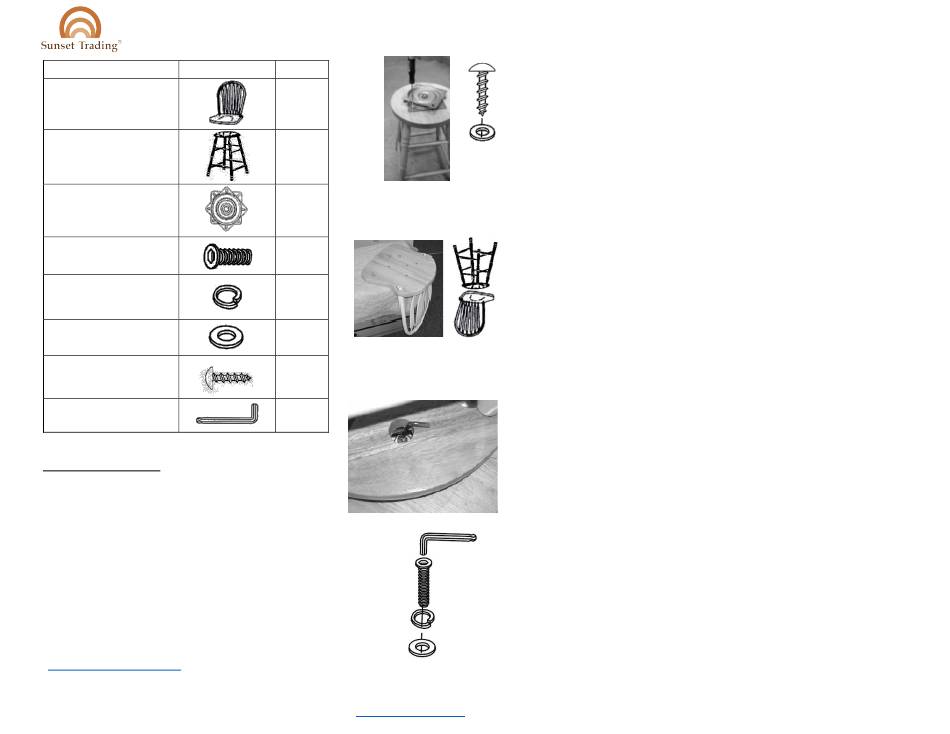

Sunset Trading B24 Assembly

Swivel Barstool Assembly
Parts
Top Seat Unit
(Pre-Assembled)
Base
(Pre-Assembled)
Swivel Plate
Seat Machine Bolts
Lock Washers
Flat Washers
#10 Philips Screws
4mm Allen Wrench
BEFORE YOU BEGIN
Check to be sure that you have all parts and hardware
•
• Place all wooden pieces on a clean and smooth surface
like a carpet to avoid parts being scratched
• Do not tighten all screws/ bolts until completely
assembled
• *Swivel plate top & bottom are pre-turned 90-degrees
prior to installation. To troubleshoot swivel turning
issues, please place swivel plate
packaging carton to protect the
TOP to twist using your body weight
• If missing parts or have questions, please email
info@sunsettrading.com or call Sunset Trading
877-364-8464, M-F 8am-4pm EST.
Thank you for your purchase and we appreciate your business. We hope you enjoy your new stools! The Sunset Trading Team
Models: B24, B30, B124-24
(Fig 1)
QTY
1
1
1
(Fig 2)
4
4
8
4
(Fig 3)
1
Bottom of base
on your floor, use
surface, step on swivel
info@sunsettrading.com
Step 1. Place swivel on base with 'TOP FRONT' markings on swivel
facing upward. Attach swivel to base using four (4) #10 Philips screws
and four (4) flat washers. Tighten with a #10 Philips screwdriver (Not
Provided). (Fig 1)
Step 2. Place seat upside down on table or bench (lay a towel down to
protect from scratches) or on the edge of mattress. Flip base upside down
and place on top of Seat Unit bottom. Line up the four (4) slots in the
swivel top with the four (4) nut inserts that are mounted in the seat. (Fig 2)
*IMPORTANT: Make note of marking on top of swivel that reads
'TOP FRONT'. This side of the swivel must be mounted toward the
front of the barstool seat in order to provide proper angle for sitting.
Step 3. Put one (1) Lock Washer and one (1) Flat Washer on each Seat
Machine Bolt. Attach the swivel to the seat bottom through the access
hole in the bottom of the base Unit with all four (4) bolts. (Fig 3)
Bottom of seat
Step 4. Screw all 4 bolts in half way with Allen wrench provided. Turning
base unit as needed to access the nuts that are inserted on the barstool
seat. Tighten all bolts fully when done. Assembly is complete!
