Sunset Trading DLU-BR-TP-4260-GO-T Assembly Instruction

Step 1
h
e
04
f
g
01
04
g
f
h
e
Step 3
01
02
03
Pls Check to make sure you have all
**
parts otherwise contact local retailer
or Sunset Trading customer service
at 877-364-8464''
h
e
f
g
05
03
04
01
04
d
01 c
b
a
02
03
Thank You for purchasing this Quality product. It has
been engineered for easy assembly yet constructed
for durability.Please take the time to read and follow
the instruction while assembling.
03
03
Step 2
03
02
d
Step 4
01
Mounting Plate
02
05
03

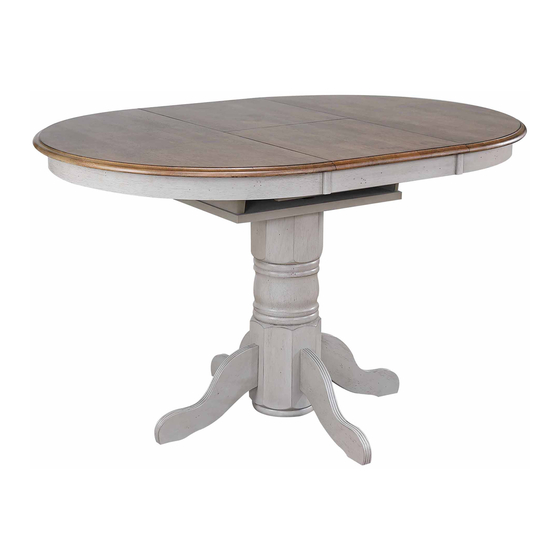

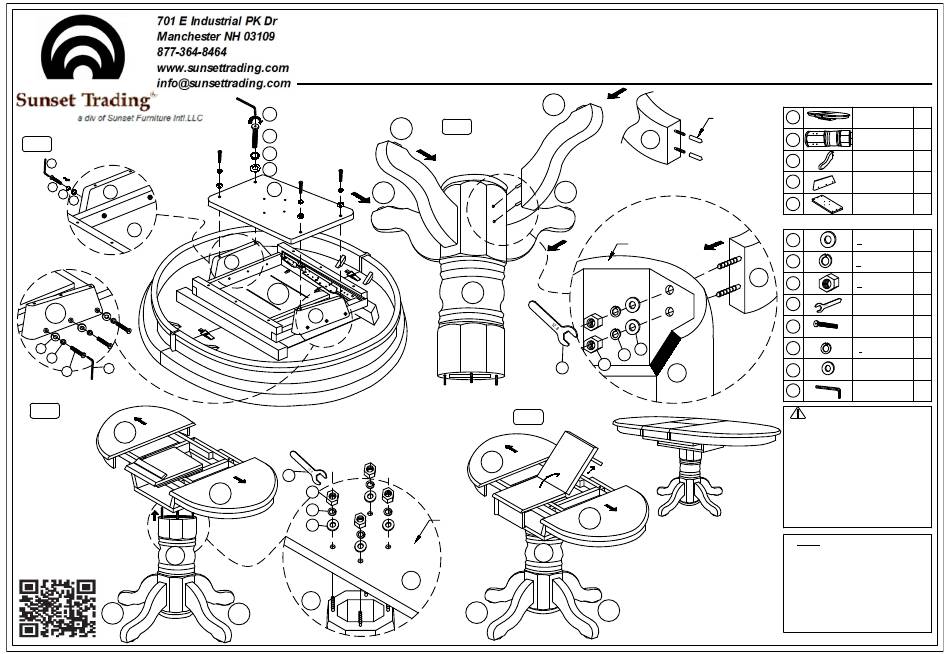

ASSEMBLY INSTRUCTION
ROUND/OVAL TABLE & BASE WITH
METAL CABLE GLIDE
Model:DLU-BR-TP-4260-GO-T&CB-B
(PTSEB&TSEB1320T&CB)
Remove the plastic
cover from the
03 Pedestal and Footings.
Pedestal
03
a
b
c
02
01
Assembly Completed !!
03
42" x 42 X 60" x 36 '' & 30" H

List of Part For 1 Set

01 Table Top 1
Pedestal 1
02
Table Leg
03 4
With Leveler
2
04 Supporting Rail
Mounting Plate
1
05

List of hardware For 1 Set

Flat Washer
a 12
5
" x 22mm
16
Spring Washer
12
b
5
"
16
Hexagon Nut
c 12
5
" x 7mm
16
Spanner
d
1
12.8mm
JCBC Bolt
e 10
M6 x 40mm
Spring Washer
10
f
1
''
4
Flat Washer
g 10
1/4 x 13mm
Allen Key
1
h
M4

Important Notes

Keep all hardware parts out of reach
*
of children.
Must tighten screws periodically.With
*
use screws will become loose.Check
tightness of all screws every 6-8 weeks.
Don't attempt to repair or modify parts
*
that are broken or defective.Please
contact the store immediatedly.
Do not tighten all screw / bolt until all
*
completly assembled
Notes
Place all wooden parts on a clean
*
and smooth surface such as a rug
or carpet to avoid the parts from
being scratched.
Check to be sure that you have all
*
parts and hardware.
Remove all wrapping materials
*
including staples & packing straps
before you start to assemble.
MADE IN MALAYSIA
