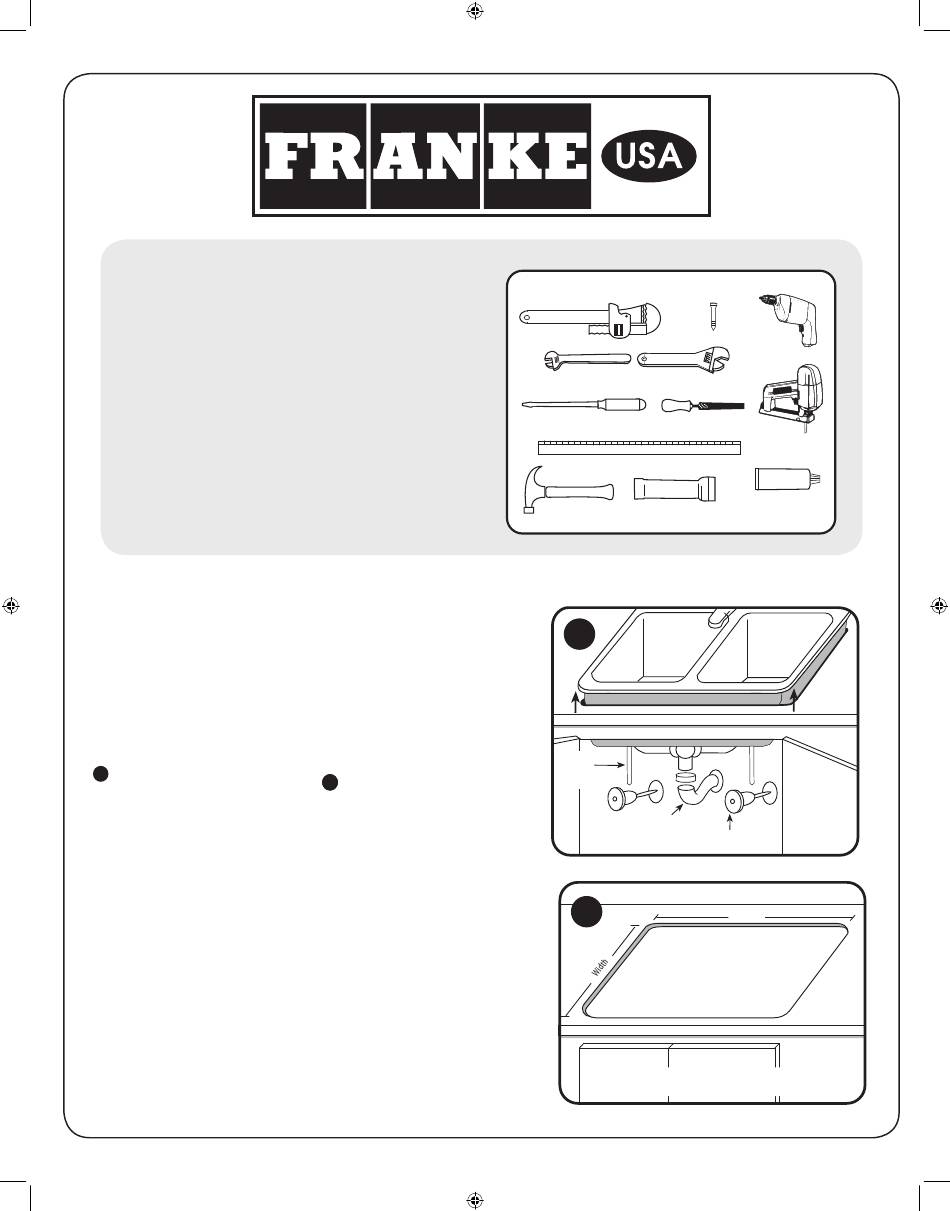

REQUIRED TOOLS
The few tools required are not specialized or expensive. All are probably in your
tool box or your neighbors. Here is what you will need:
1. Pipe wrench if steel pipe used
2. Punch
3. Drill
4. (2) Adjustable wrenches
5. Long thin screwdriver
6. File
Caution: Do not use Plumbers Putty! Plumbers Putty can stain your sink.
TOPMOUNT INSTALLATION
Installation Instructions
Gather the tools listed at the top of this page
that are required for replacing a sink.
Caution: Do not use Plumbers Putty! Plumbers
Putty can stain your sink.
1 Step One: Remove the Old Sink
Leave the faucet and drain outlet in place for
now.
1. Shut off the water supply valves (usually
under the sink).
2. Relieve pressure by opening faucet.
3. Disconnect the water supply fi ttings from
the outlet of the water supply valves.
4. Disconnect the drain fi tting from the
waste trap.
5. Remove frame or rim fasteners around
underside of old sink.
NOTE: The illustrations are a representation of a
sink and may diff er from the style of your sink.
The instructions still apply to your installation.
Granite_Install_Broch_EN_prod.indd 1 Granite_Install_Broch_EN_prod.indd 1
7. Jigsaw
8. Yardstick
9. Hammer
10. Flashlight
11. Tube of silicone sealant for mounting sink
6. Lift out sink with faucet and drain fi tting
in place.
7. If you are installing a new countertop, go
to NEW COUNTERTOP FOR TOPMOUNT
INSTALLATION and follow the instructions
provided.
2 Step Two: Check Countertop Opening
Make sure the existing countertop cutout
opening is the proper size. Simply set the new
sink into the opening. The sink rim should
rest evenly on the countertop. If not, a slight
adjustment can be made by using a fi le or
a greater adjustment by using a jigsaw or
keyhole saw. Care should be taken not to
chip or crack the laminated top by aggressive
fi ling or sawing. After fi nal fi tting, remove the
new sink from cutout.
continues on next page—
1: Pipe Wrench 2: Punch
4: Adjustable Wrenches
5: Long Thin Screwdriver 6: File
8: Yardstick
9: Hammer 10: Flashlight
1
Supply
Lines
Waste
Trap
2
For new countertop go to
NEW COUNTERTOP INSTALLATION
3: Drill
7:Jigsaw
11: Silicone Sealant
Supply
Valves
Length
INST GRA2011
