Mishimoto MMRAD-CSS-12 Installation Manual

2012–2015 CHEVY CAMARO SS
PERFORMANCE ALUMINUM RADIATOR
PARTS LIST AND INSTALLATION GUIDE
PARTS INCLUDED
1PC | ALUMINUM RADIATOR
1PC | MAGNETIC DRAIN PLUG
MOUNTING HARDWARE
TOOLS NEEDED
10MM SOCKET
1/4" DRIVE RATCHET
10MM WRENCH
19MM WRENCH
SMALL PICK
INSTALL TIME 1 HOUR
INSTALL DIFFICULTY
DISCLAIMER
• Raise vehicle only on jack stands or on a vehicle lift.
• Allow vehicle to cool completely prior to attempting installation.
• Do not run the engine or drive the vehicle while overheating;
serious damage can occur.
• Please dispose of any liquids properly.
• Mishimoto is not responsible for any vehicle damage or
personal injury due to installation errors, misuse, or removal
of Mishimoto products.
• Mishimoto suggests that a trained professional install all
Mishimoto products.
CAUTION
Never work on the cooling system when it is hot. The coolant
temperature in the radiator can be considerably higher than
boiling, and the system may be under pressure. Opening a cooling
18 BOULDEN CIRCLE, NEW CASTLE, DE 19720
MISHIMOTO |
PANEL TOOL
FLATHEAD SCREWDRIVER
NEEDLENOSE PLIERS
CHANNELLOCK PLIERS
MISHIMOTO LIQUID CHILL®
®
system that is hot or under pressure can result in serious injury.
Always wait until the system has cooled completely before
servicing it in any way.
INSTALL PROCEDURE
01. Set the vehicle on an automotive lift or raise it with a jack and
place it securely on jack stands. Refer to your owner's manual
for safe lifting points if you are unsure.

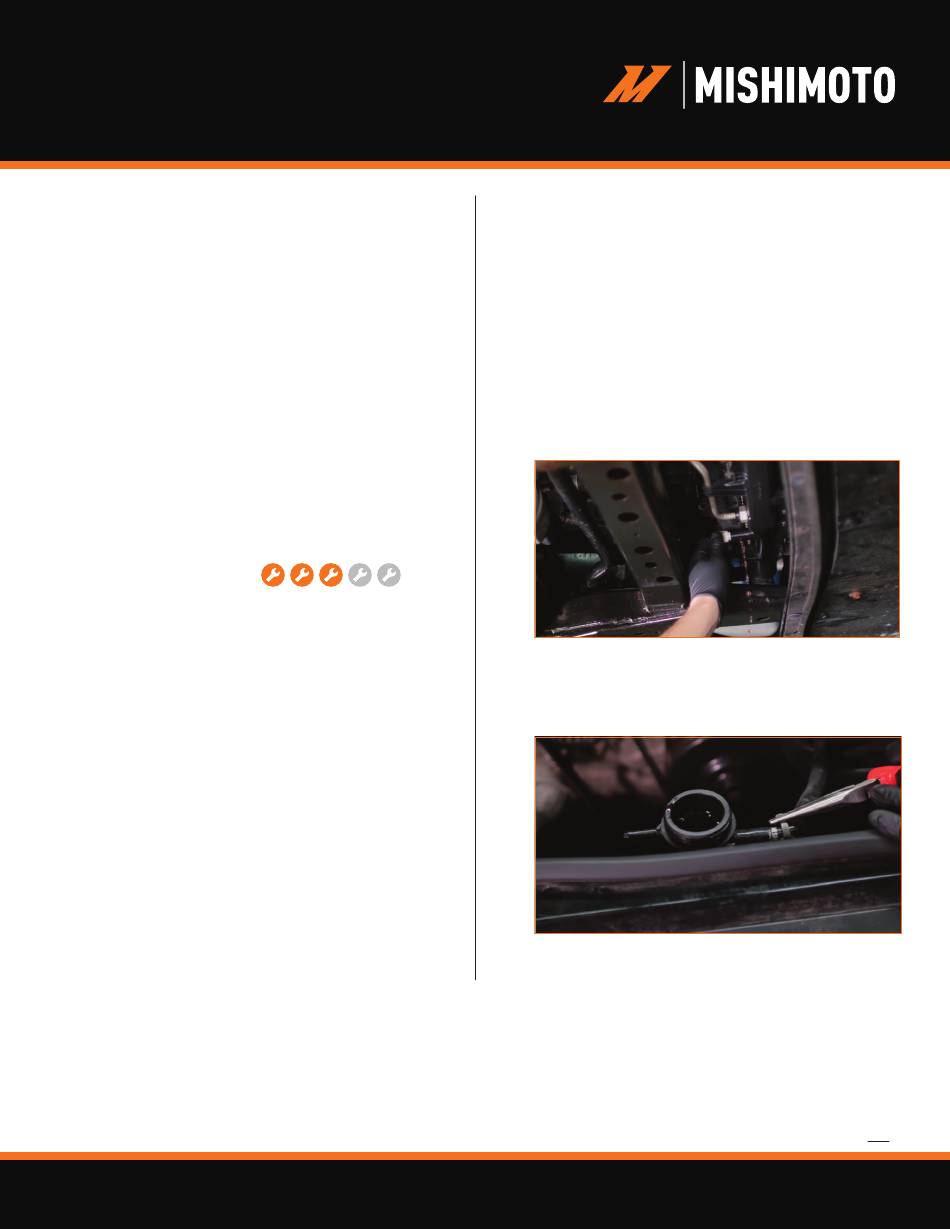

02. Place a drain pan under the driver side of the radiator, and
loosen the petcock on the radiator to drain the coolant. Then
remove the pressure cap from the radiator to accelerate the
draining process.
03.
Separate the overfl ow hose from the radiator. Then squeeze
the clamp that secures the coolant hose to the water neck
of the radiator, and separate the hose from the radiator.
(1x spring clamp)
CONTINUED ON FO LLOWING PAGE
